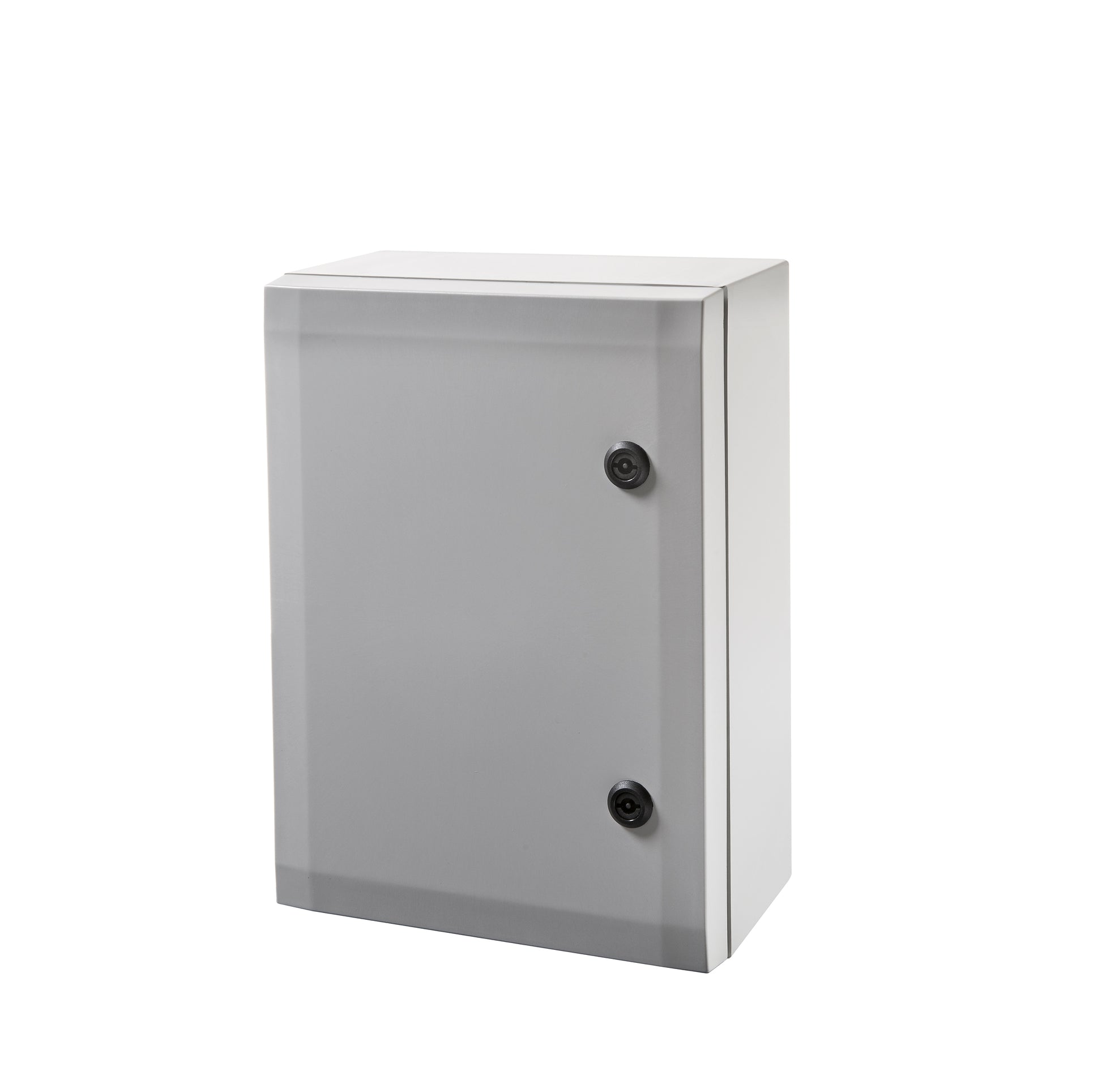

ARCA IEC – Wall-Mounted Enclosure (504021)

Product Number: 504021

Part of the ARCA IEC (ARCN) series, the ARCA 504021 (8120011) is a high-performance wall-mounted enclosure designed for control and measurement applications in demanding electrical environments. Constructed from UV-resistant, halogen-free polycarbonate, this cabinet combines durability with superior protection, making it ideal for industrial and commercial use.

Key Features & Specifications:

• Dimensions: 500mm (H) × 400mm (W) × 210mm (D)
• Weight: 7050g
• Material: High-strength polycarbonate with UL 94 5VA flammability rating

Protection Ratings:

• IP66 (Complete dust ingress protection & powerful water jet resistance)
• IK10 (Exceptional impact resistance)

Security & Access:

• 2-point locking system for enhanced security
• Hinges on the long side for easy maintenance access

Certifications & Compliance:

• UL508A listed
• UV-resistant for outdoor durability
• ATEX: Not certified
• Installation: Supports vertical mounting

Applications:

• Electrical installations & control/measurement systems
• Not suitable for terminal enclosures, power distribution boards, or electronic devices

Engineered for reliability in harsh conditions, the ARCA 504021 (8120011) ensures long-term performance with robust construction and industry-leading safety standards.
