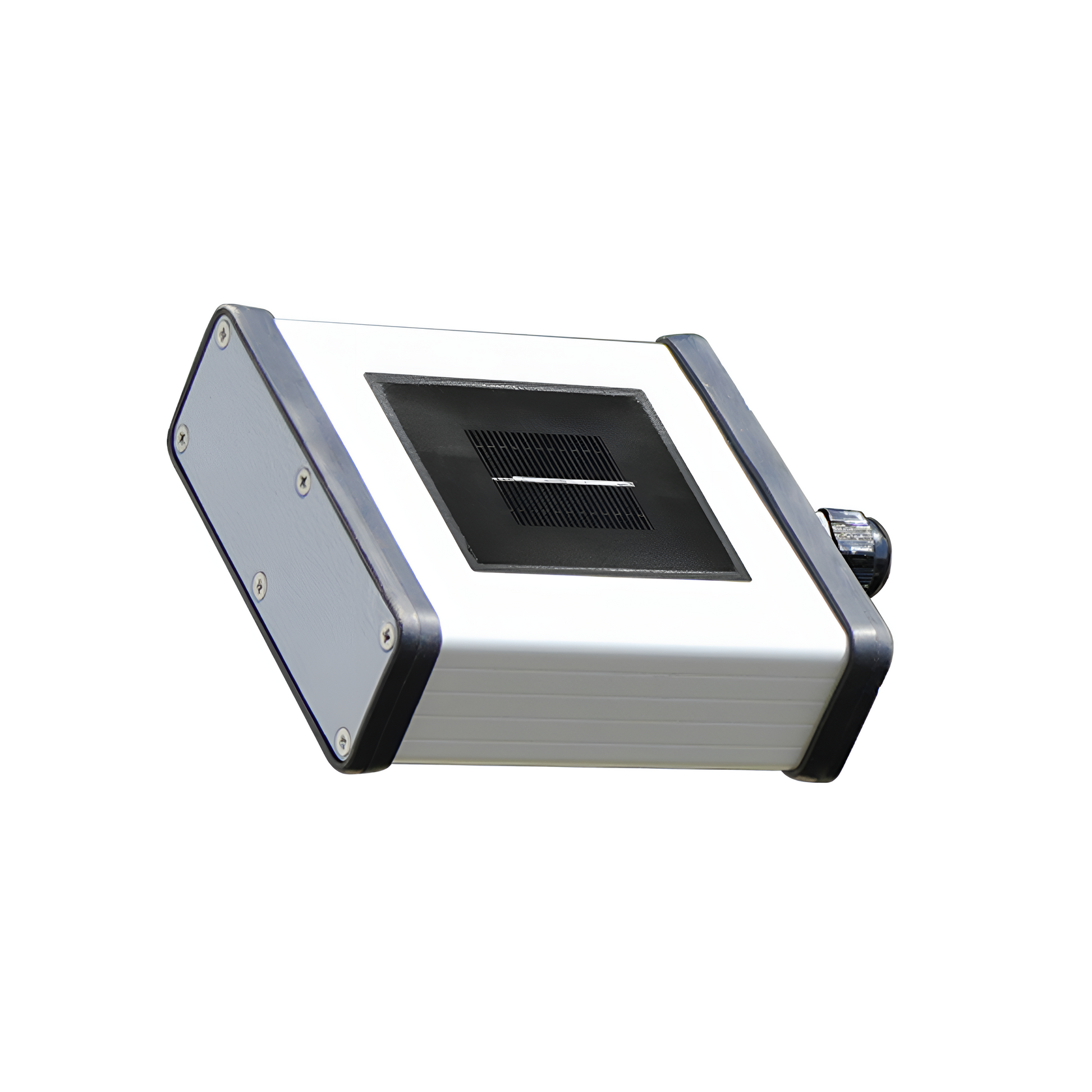

Albedometer with Modbus Output

Product ID: 3S-ALBEDO

Seven Sensor albedometer

Designed to measure the irradiance values and albedo ration of bifacial panels.

Includes internal cell Temperature Sensor.

Data is transferred to dataloggers and receiver units via a 2-wire RS485 bus with Modbus RTU protocol.

Irradiance Range: 0 – 1600 W/m²

Uncertainty: ≤1,2% (less than 2%; as per IEC 61724-1 standard Class A)

Data Output: RS485 up to 38400 Baud

Box Dimensions: 140 mm x 110 mm x 42 mm

See full data sheet here
