Ambient Temperature Sensor with 0-10V Output PT1000

Product ID: 3S-AT-PT1000-U

This Seven Sensor ambient temperature sensor measures the air temperature in the environment where the PVs are placed in degrees Celsius by using a PT1000 probe.

A transducer is used to convert PT000 to the required output signal to communicate via 0-10V.

Compatible with all Dataloggers, Gateways, and PLCs with 0-10V input port.

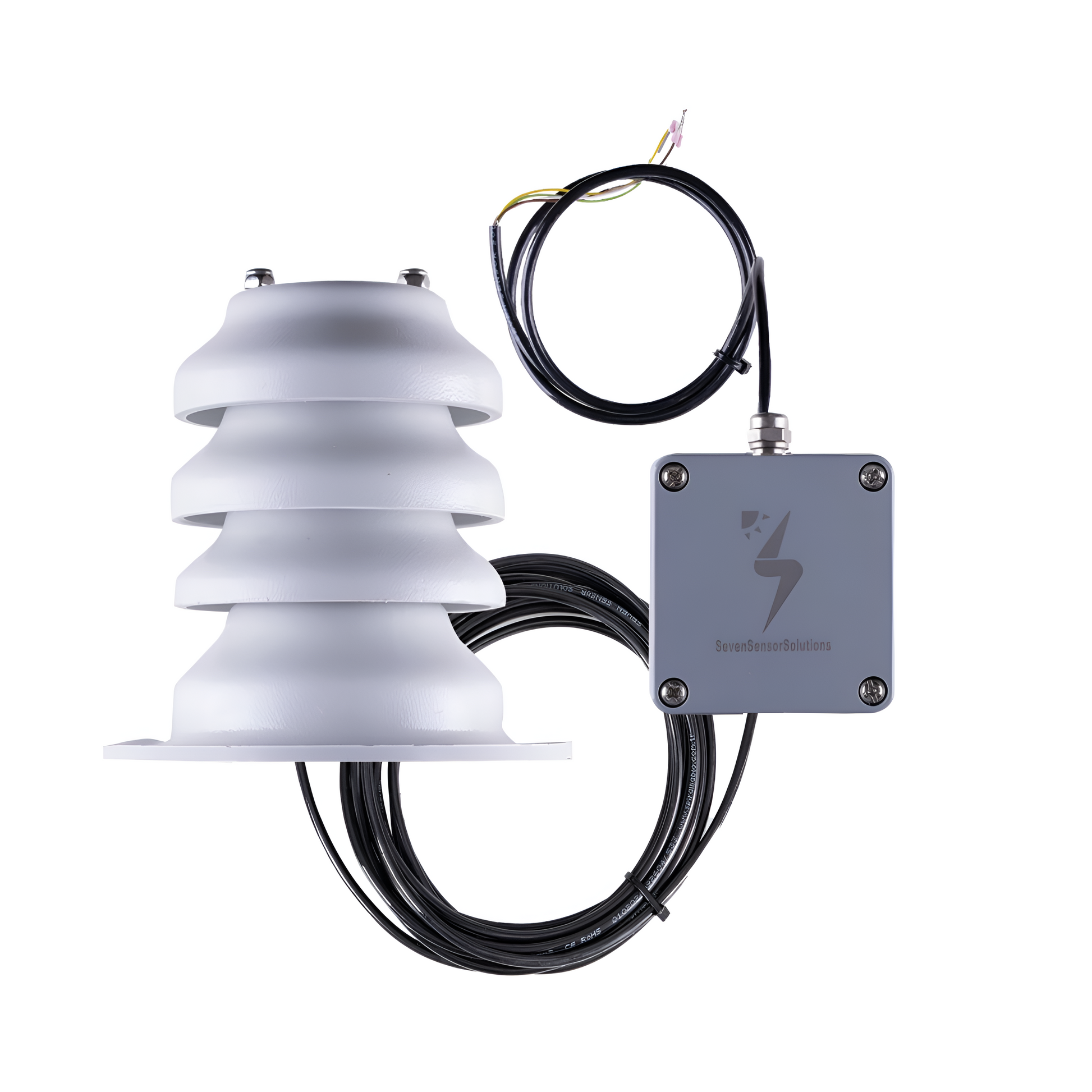

Protected from direct sunlight and radiations by a plastic radiation shield with four aspirated plates that allow air to pass freely.

Measuring Range: -40°C to +85°C

Accuracy: 0.1°C

Shield Dimensions: 105 x 100 mm

Box Dimensions: 64 x 68 x 35 mm

View full data sheet here
