ARCA 203015W | Fibox 200x300x150mm IP65 Enclosure with Window
ARCA 203015W | Fibox 200x300x150mm IP65 Enclosure with Window
Fibox
Regular price
£115.38 GBP
Regular price
Sale price
£115.38 GBP
Unit price
/
per
Shipping calculated at checkout.

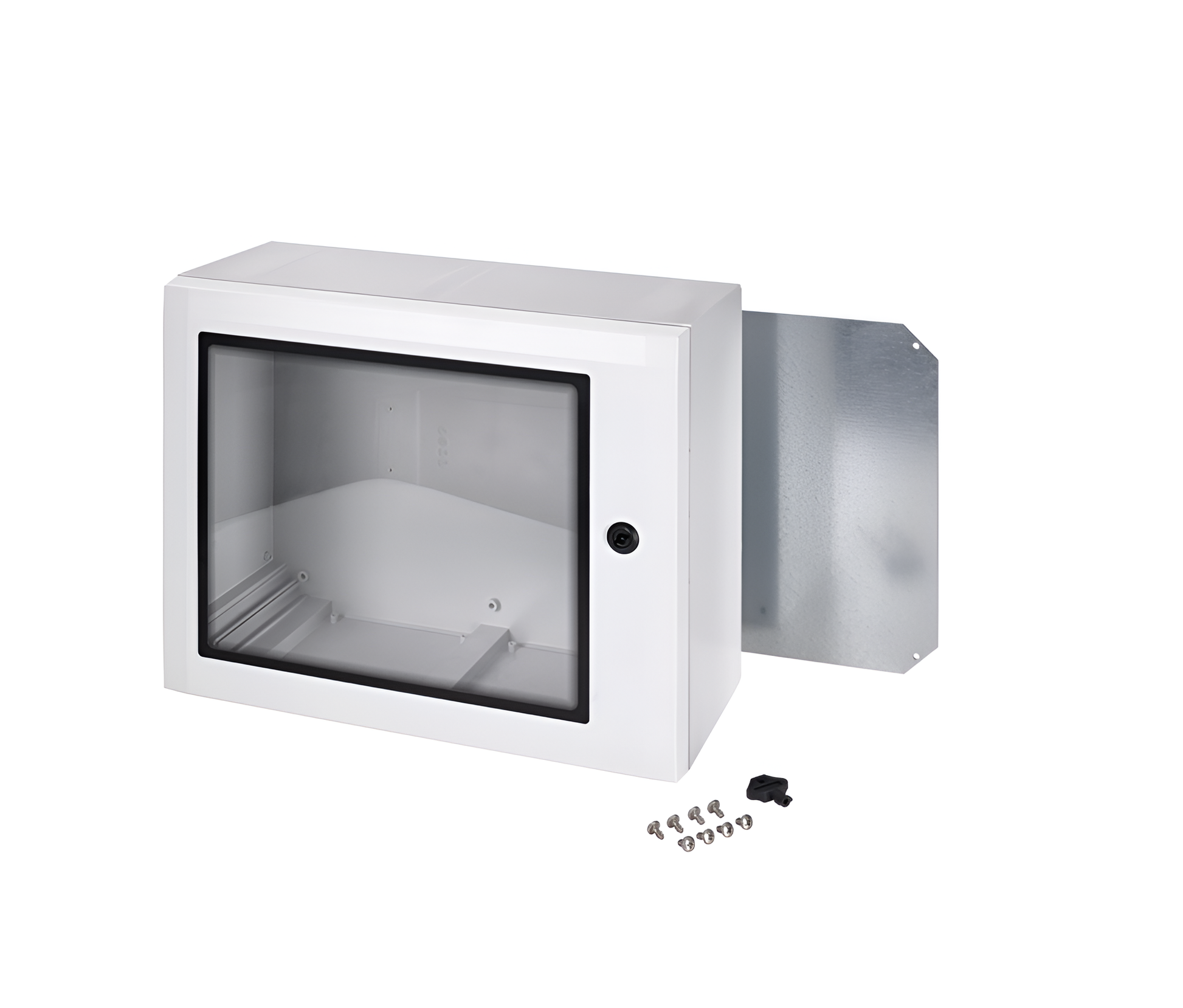

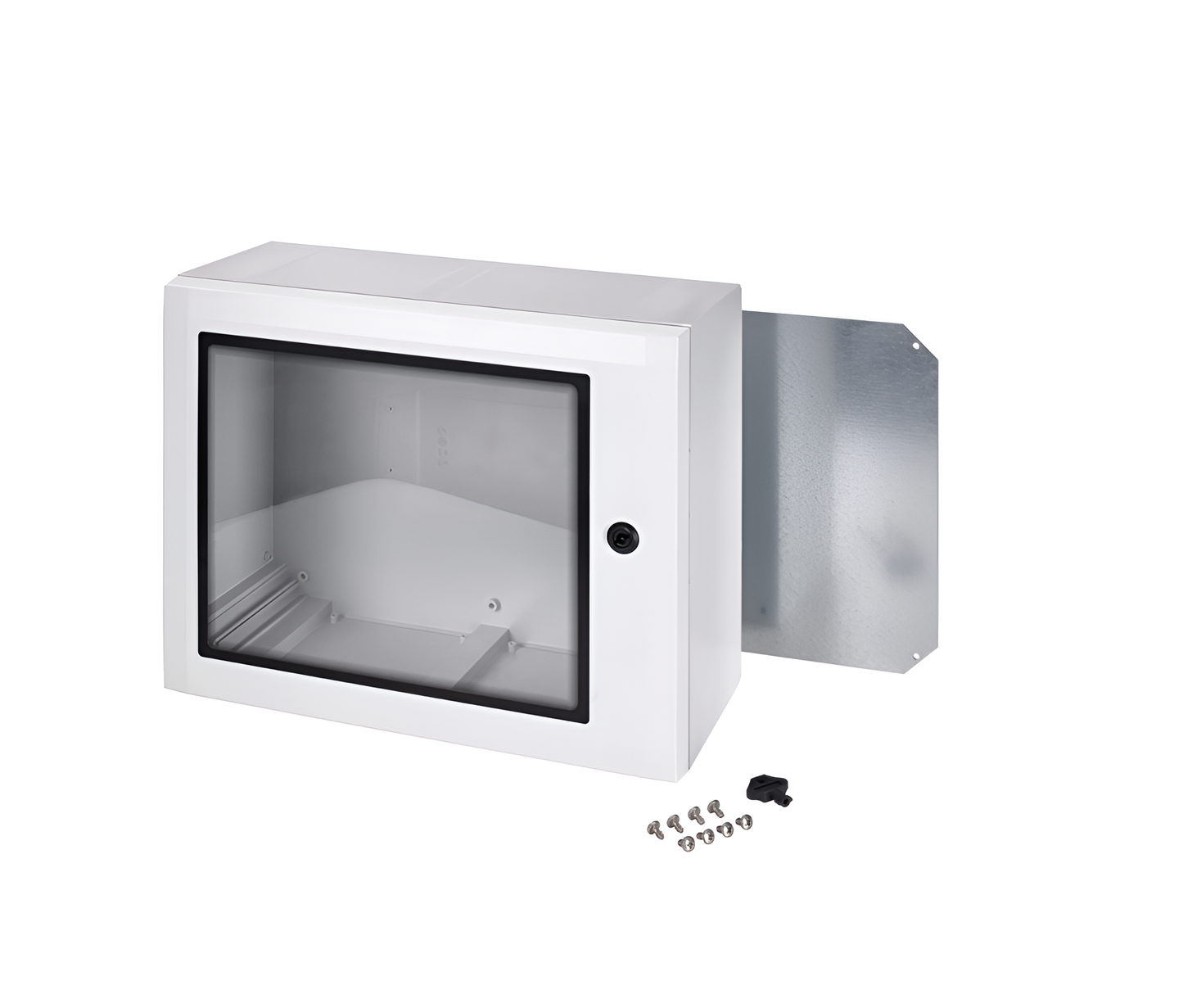

ARCA 203015W Fibox 200x300x150mm IP65 Enclosure with Window
Its halogen-free, UV-resistant polycarbonate construction provides excellent mechanical strength, making it ideal for protecting sensitive control and measurement components.
Key Specifications at a Glance:
| Model | ARCA 203015W |
| Part Number | 8120140N |
| Brand | Fibox |
| External Height | 300 mm |
| External Width | 200 mm |
| External Depth | 150 mm |
| Material | Polycarbonate (halogen-free, UV-resistant) |
| IP Rating | IP65 (dust-tight & water-proof) |
| IK Rating | IK08 (5 joule impact resistance) |
| Colour | RAL7035 (light grey) |
| Locking System | 3mm double-bit lock with key |
| Window | Yes – integrated viewing window |
| Door Guide | Yes (included) |
| Flammability Rating | UL 94 5VA |
| UV Resistant | Yes |
| Weight | 2400g |
| Mounting | Wall-mounting (vertical) |
| Applications | Control & measurement, visual indication |
Key Benefits:
- Integrated viewing window – monitor internal components without opening the enclosure.
- IP65 Protection – Dust-tight and weatherproof for outdoor and washdown areas.
- Includes Door Guide – Ensures smooth, reliable door operation.
See full data sheet here
