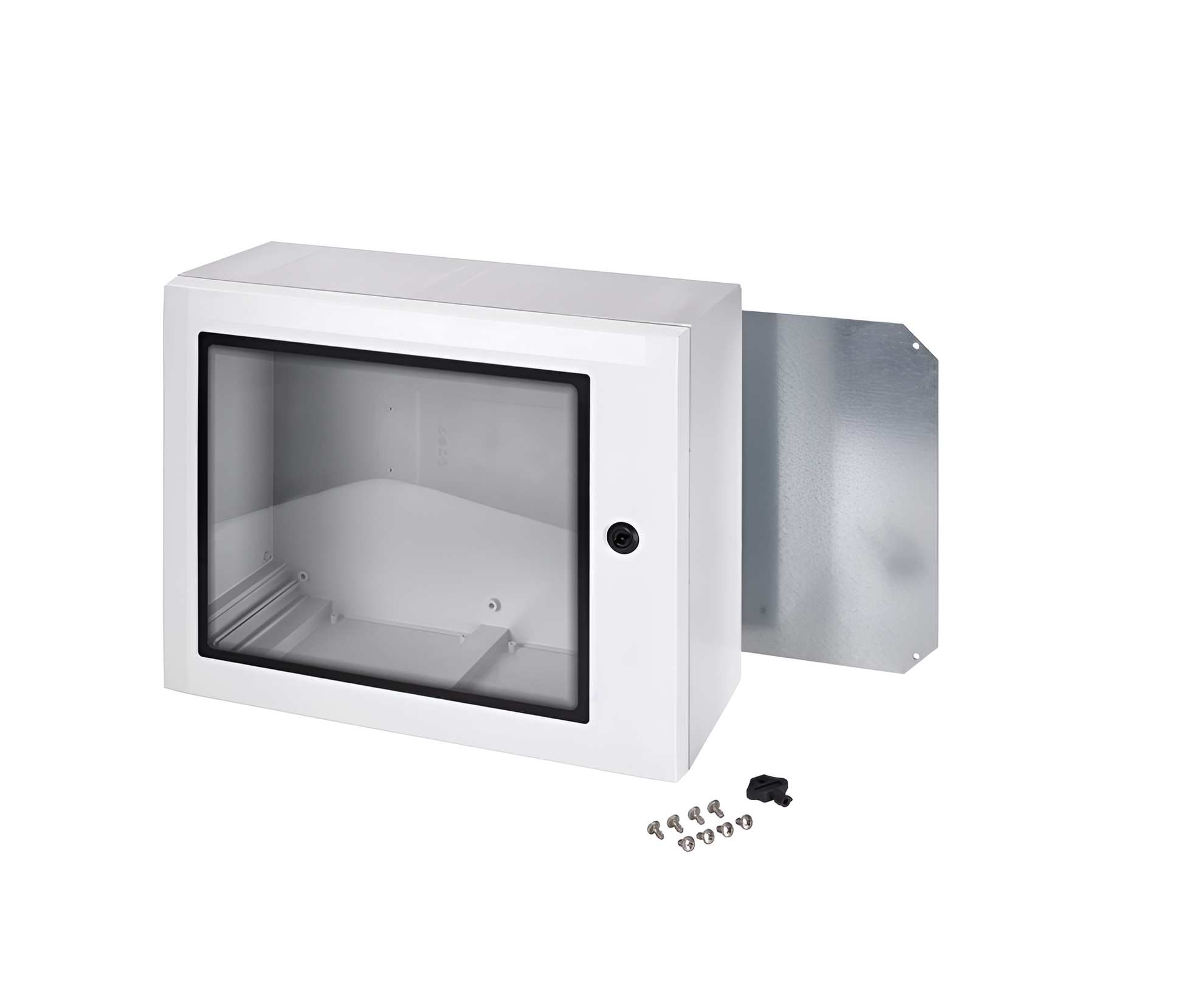

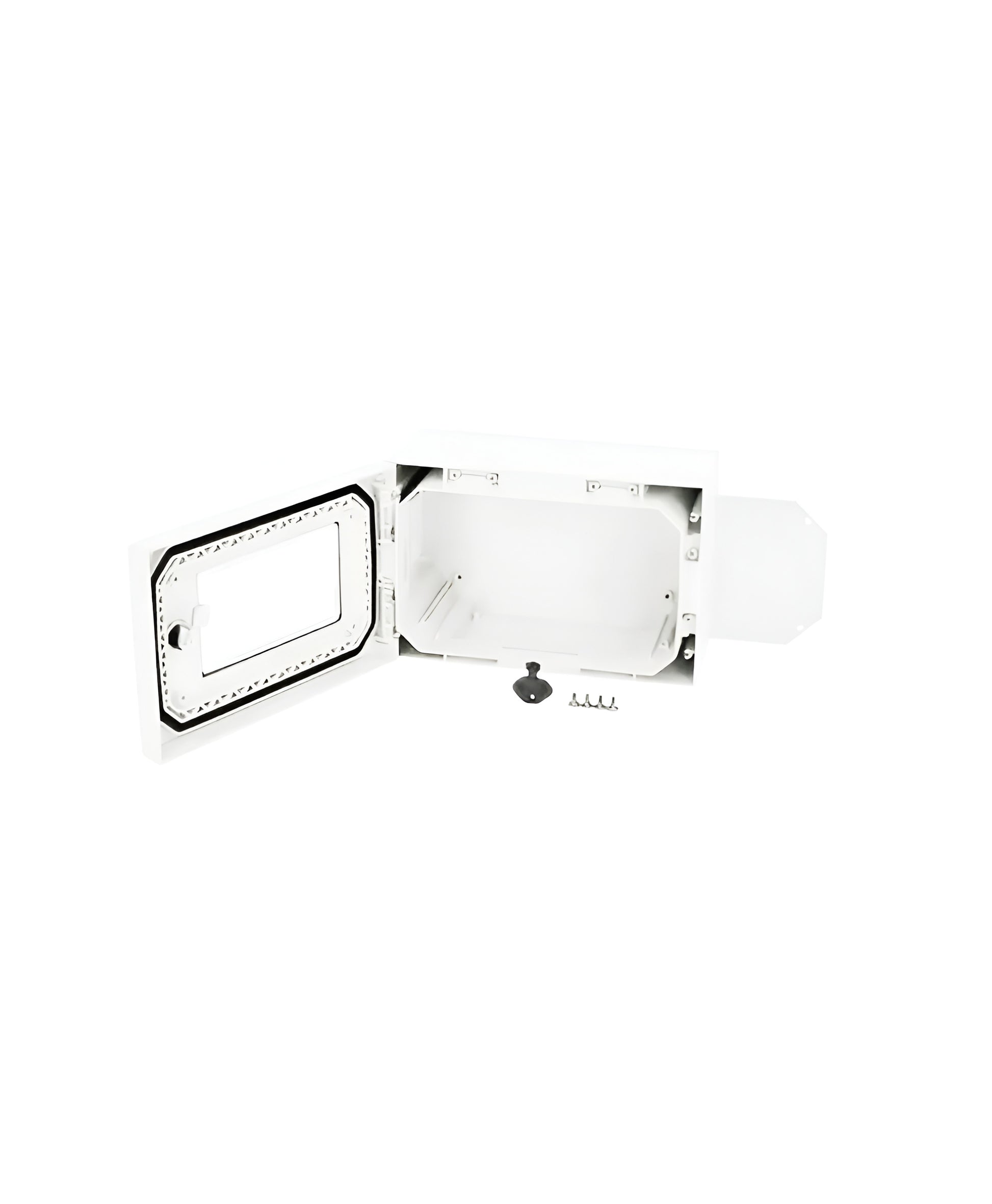

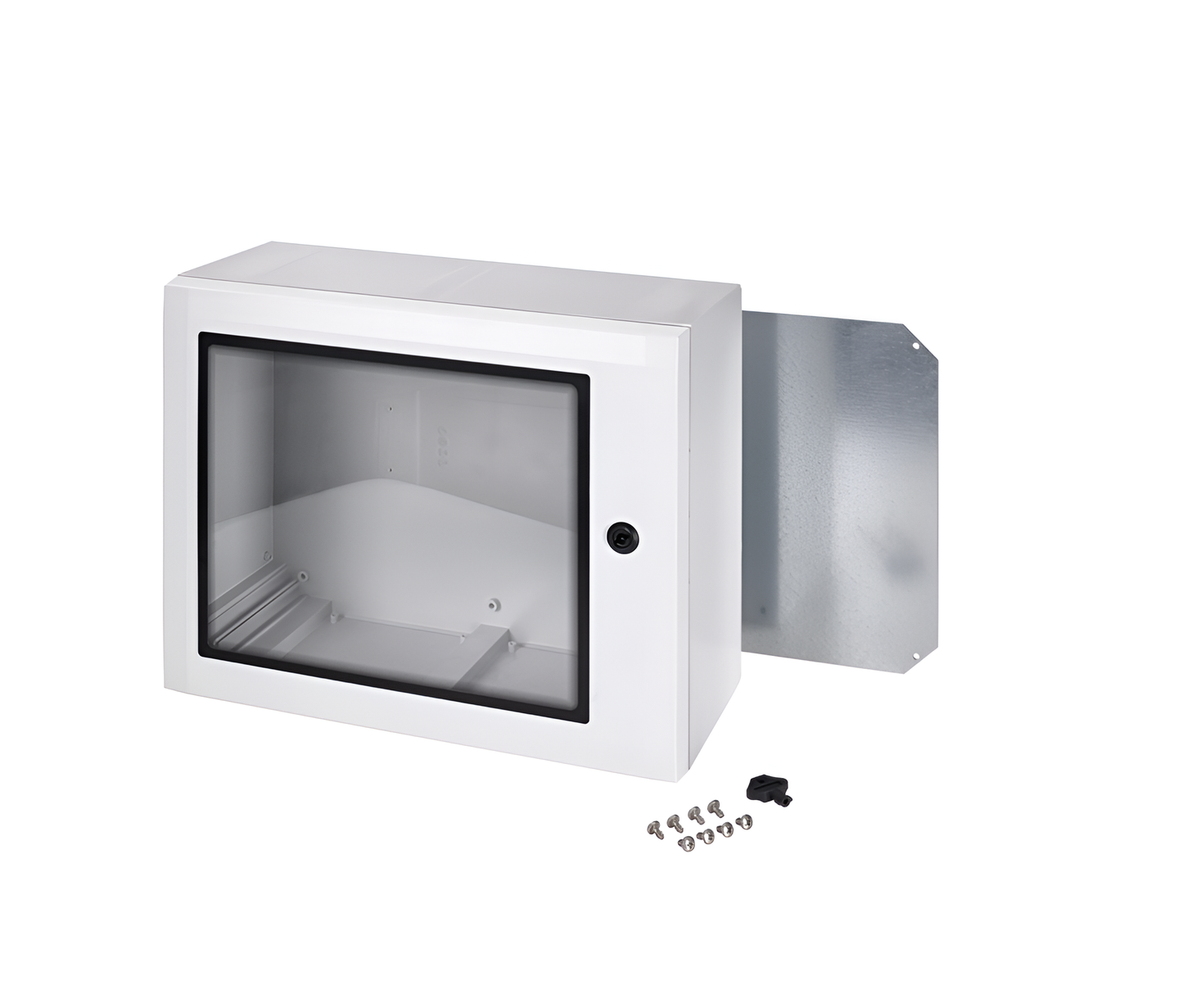

ARCA 203015W | Fibox 200x300x150mm IP65 Polycarbonate Enclosure with Window

ARCA 203015W is a robust, wall-mounted IEC enclosure from the trusted ARCA series, engineered for harsh industrial and outdoor electrical installations. Its halogen-free, UV-resistant polycarbonate construction provides excellent mechanical strength, making it ideal for protecting sensitive control and measurement components.

Product Number: 8120140N

Dimensions 200W x 300H x 150D mm

Featuring:

• IP65 Ingress Protection: Completely dust-tight and protected against low-pressure water jets, suitable for washdown areas and outdoor use.
• IK08 Impact Resistance: The highest impact rating, guarding internal components against severe mechanical shock and vandalism.
• UV-Resistant Polycarbonate: Prevents brittleness and discolouration from prolonged sun exposure, perfect for outdoor and marine installations.
• Integrated Viewing Window: Allows for easy visual inspection of internal instruments or indicators without opening the enclosure.
• Secure Locking: Features a 3mm double-bit lock with key for secure, controlled access.

Key Specifications at a Glance:

• Series: ARCA IEC (ARCN)
• Dimensions (HxWxD): 200 x 300 x 150 mm
• Material: Halogen-free, UV-resistant polycarbonate
• Protection Rating: IP65
• Impact Rating: IK08
• Colour: Grey cover
• Locking: 3mm double bit lock(s) with key
• Door guide included.

See full data sheet here
