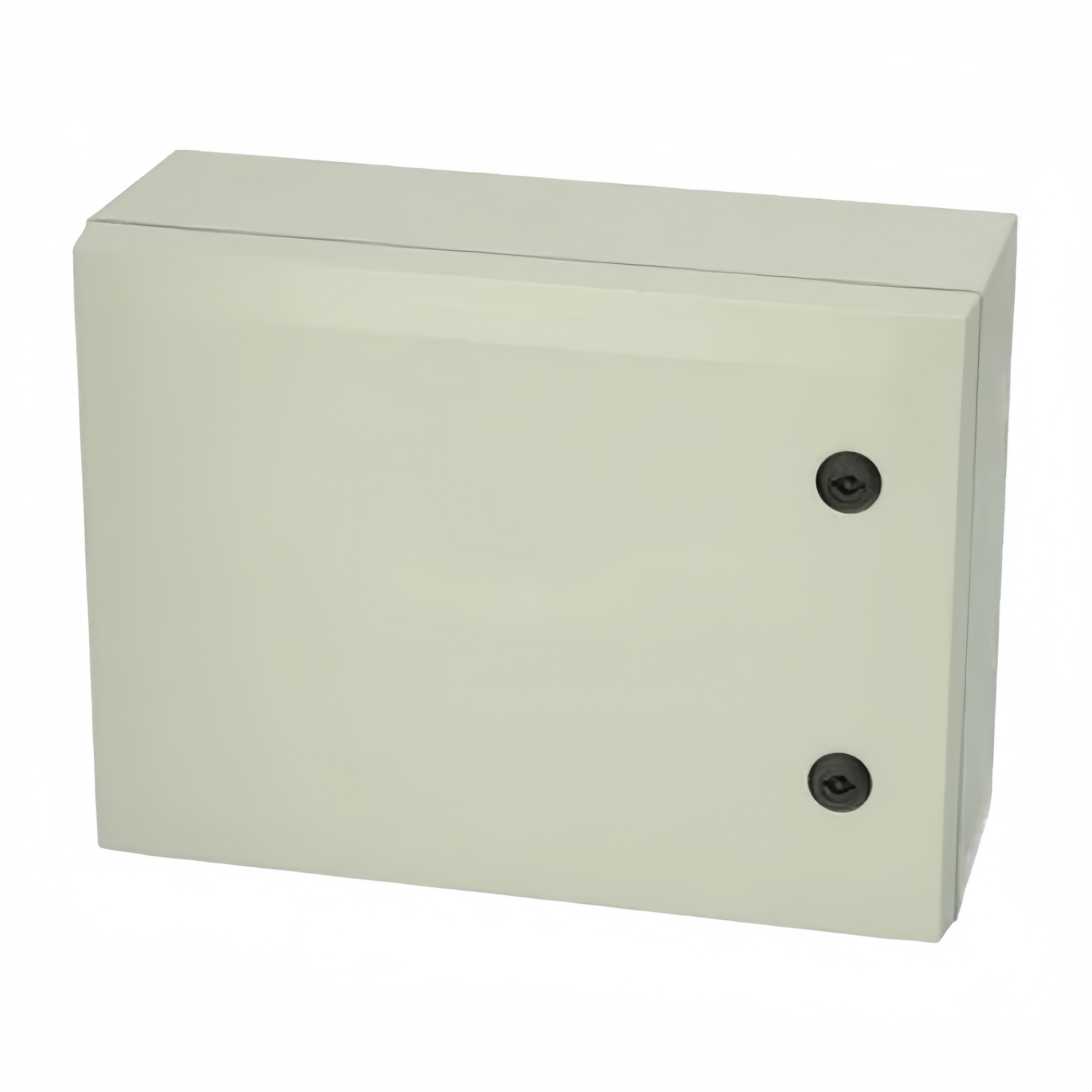

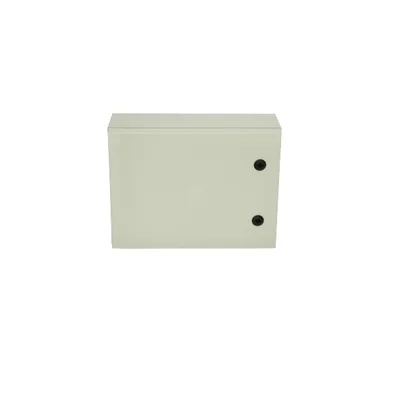

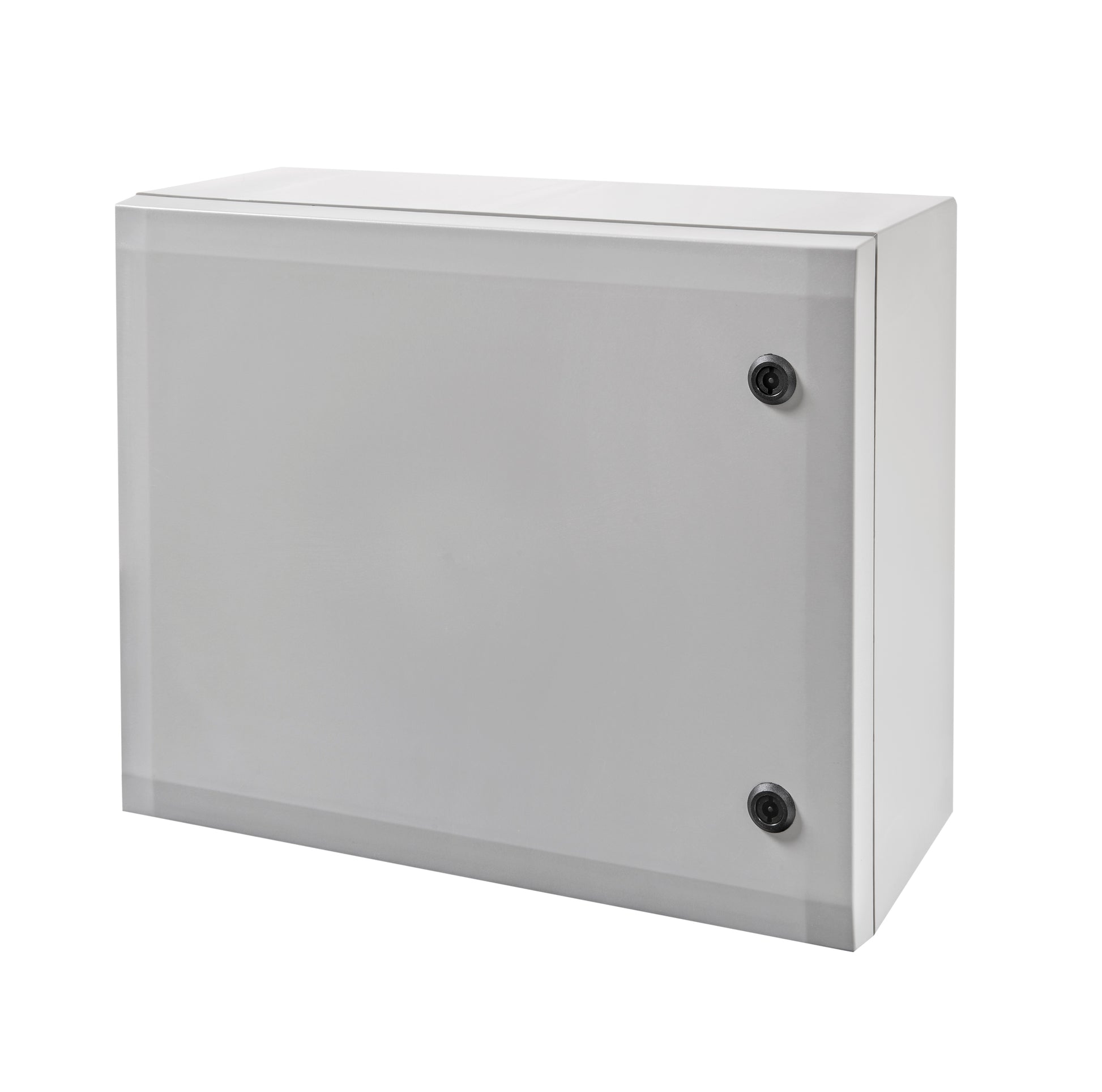

Part of the ARCA IEC (ARCN) series, the ARCA 304015 (8120022) is a high-performance wall-mounted cabinet designed for electrical installations and control measurement applications. Constructed from durable, halogen-free polycarbonate, this enclosure offers superior protection against environmental factors, mechanical impacts, and UV exposure.
Key Features:

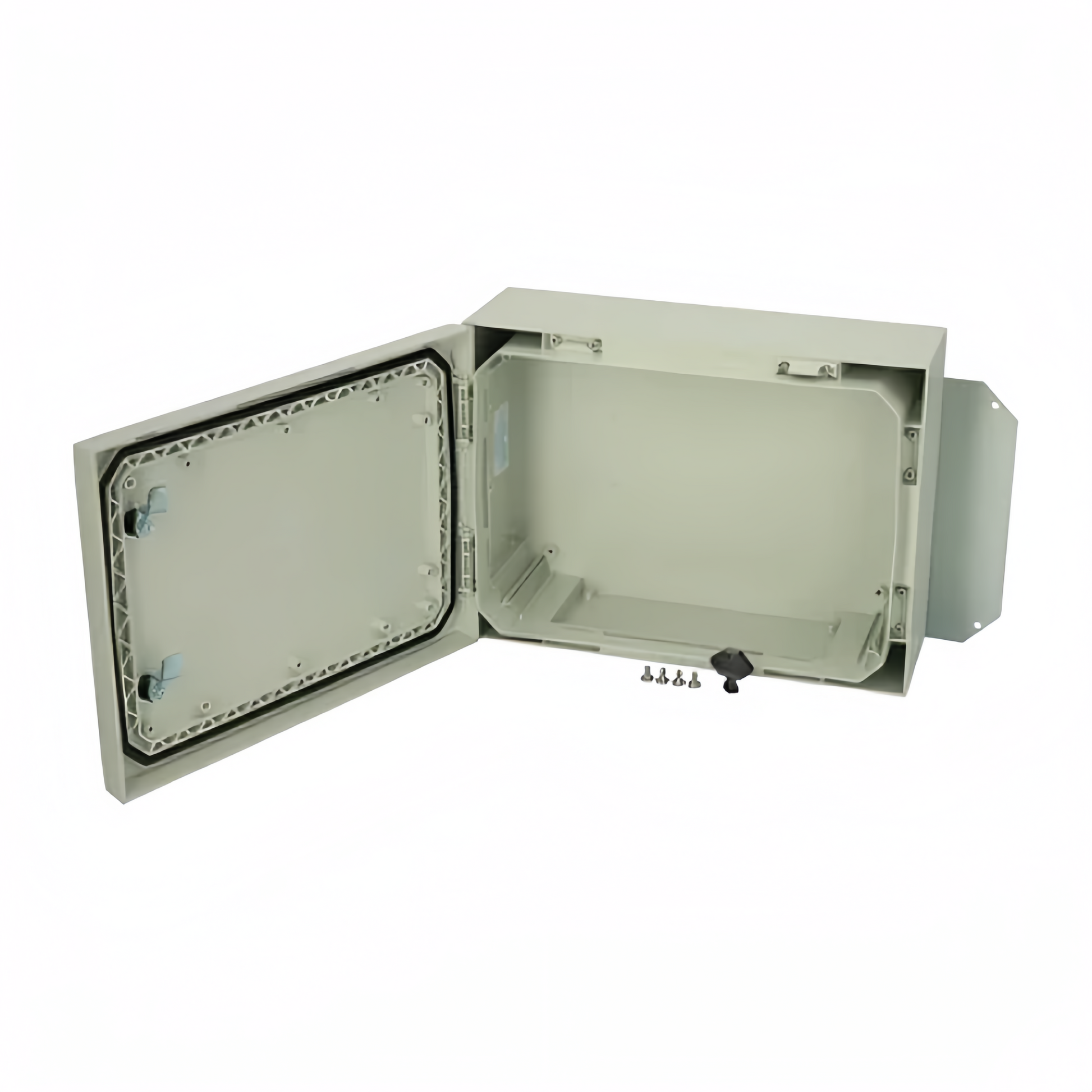

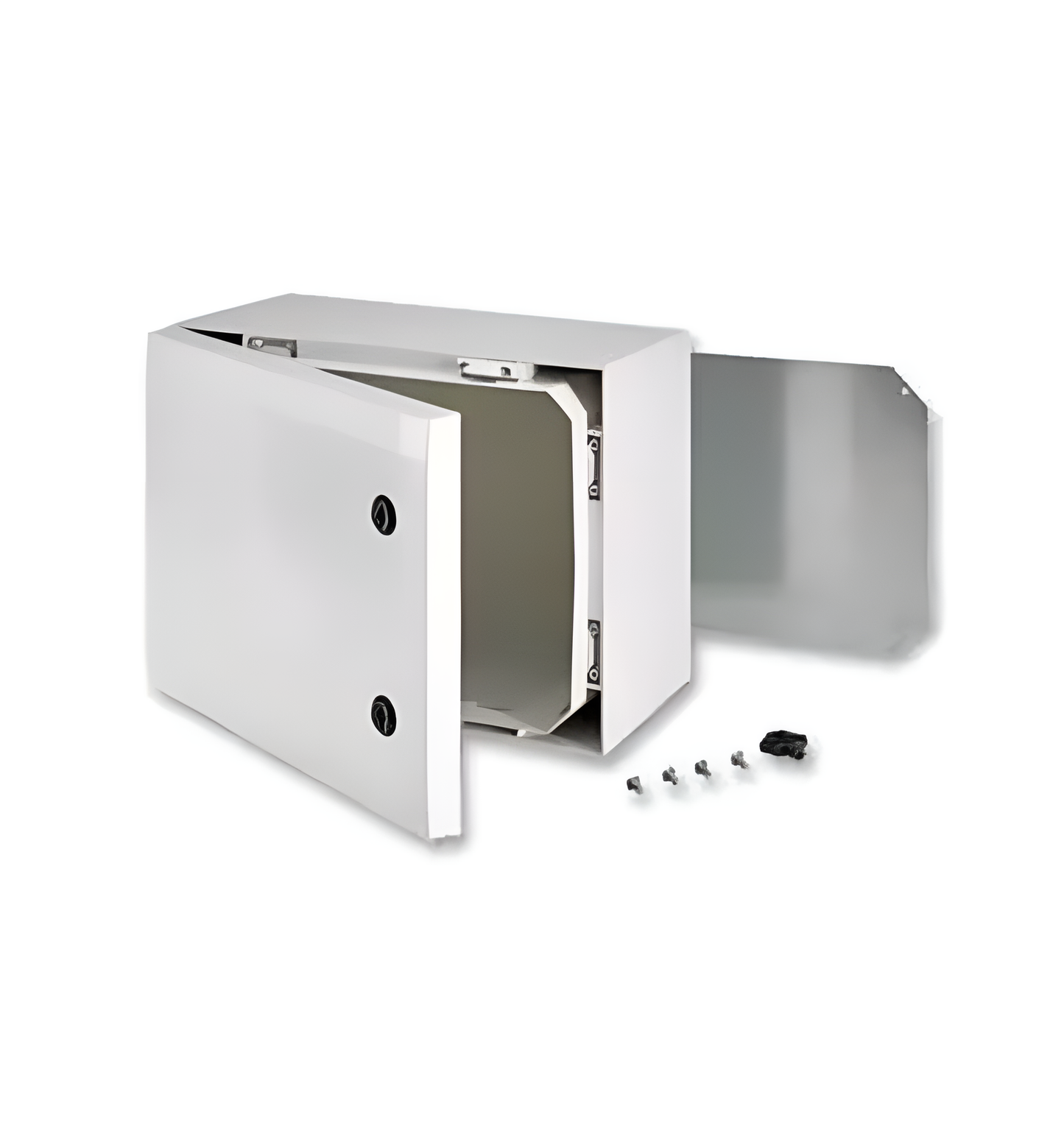

Secure Design: Features a PC grey cover, 2-point locking system, and hinges on the short side for easy access.
High Protection Ratings: IP66 (dust proof & waterproof) and IK10 (impact-resistant) for reliable performance in harsh conditions.
Flame-Resistant Material: Complies with UL 94 5VA flammability standards for enhanced safety.
UV-Resistant & Halogen-Free: Ensures long-term durability without harmful emissions.
Optimised for Vertical Installation: Ideal for space-efficient mounting in industrial and commercial settings.
Technical Specifications:

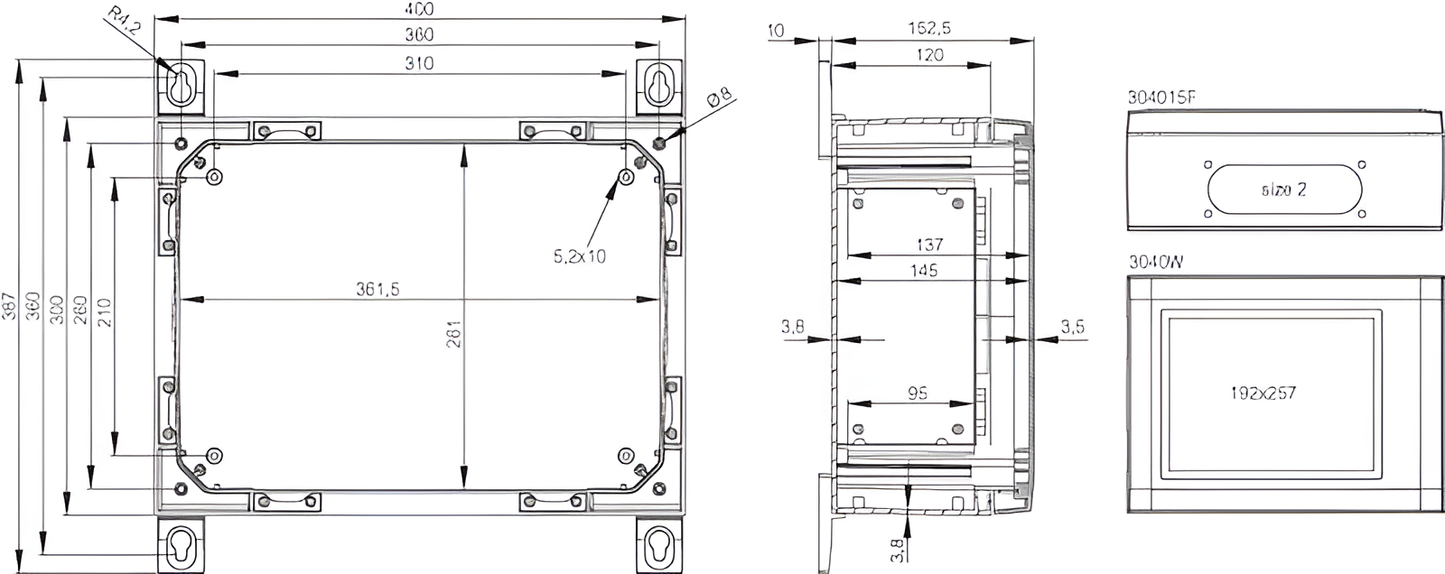

Dimensions: 300mm (H) × 400mm (W) × 150mm (D)
Weight: 4200g
Material: UV-stabilised polycarbonate
Certifications: UV-resistant (no ATEX certification)
Applications:
✔ Control & Measurement Systems ✔ Electrical Installations ✖ Terminal Enclosures ✖ Power Distribution Boards ✖ Electronic Devices
Engineered for durability and security, the ARCA 304015 (8120022) is an ideal solution for demanding environments requiring robust enclosure protection.
