ARCA IEC Wall-Mounted Enclosure (406021)

ARCA IEC Wall-Mounted Enclosure (406021)

Fibox

Product Number: 8120026

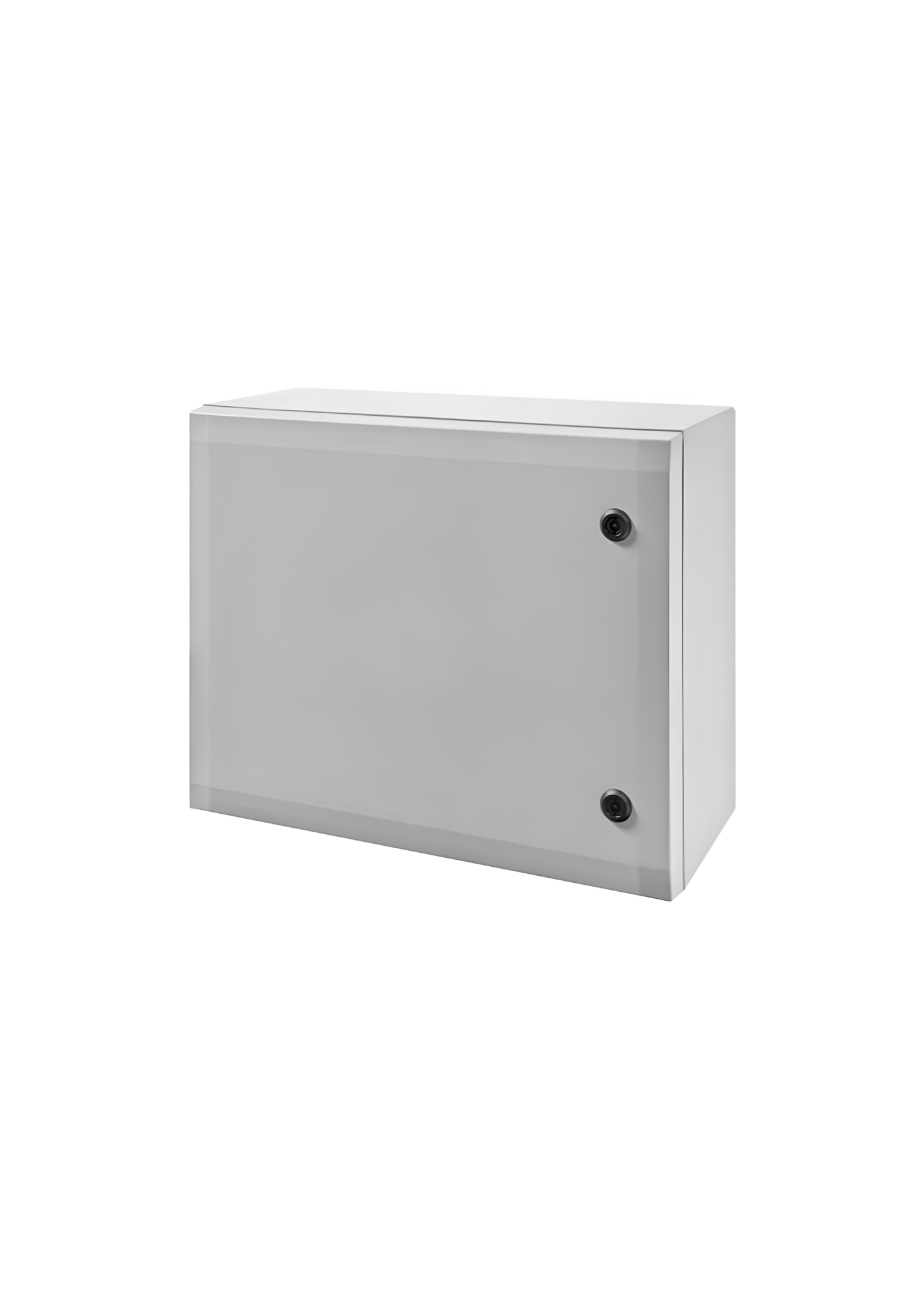

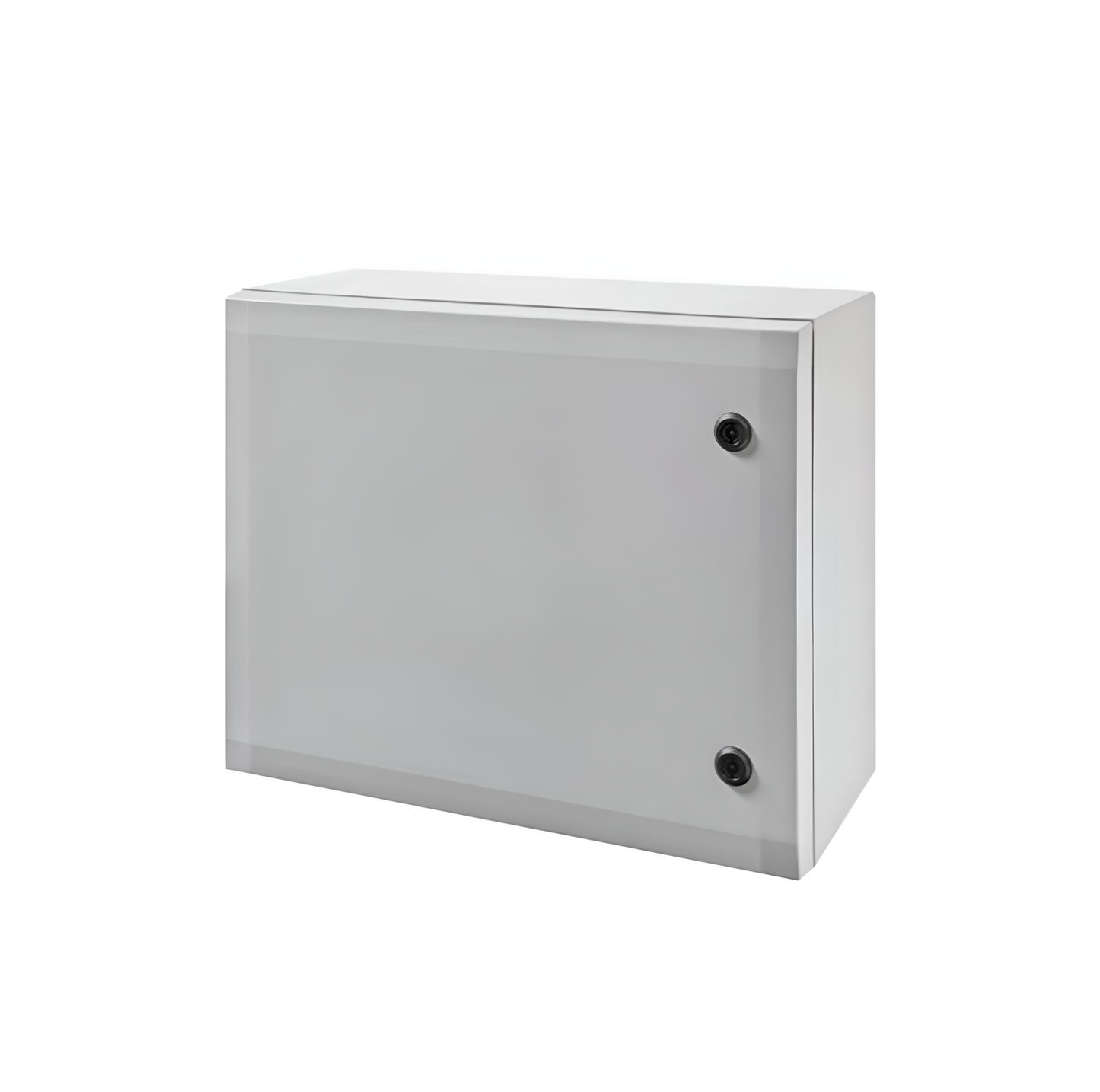

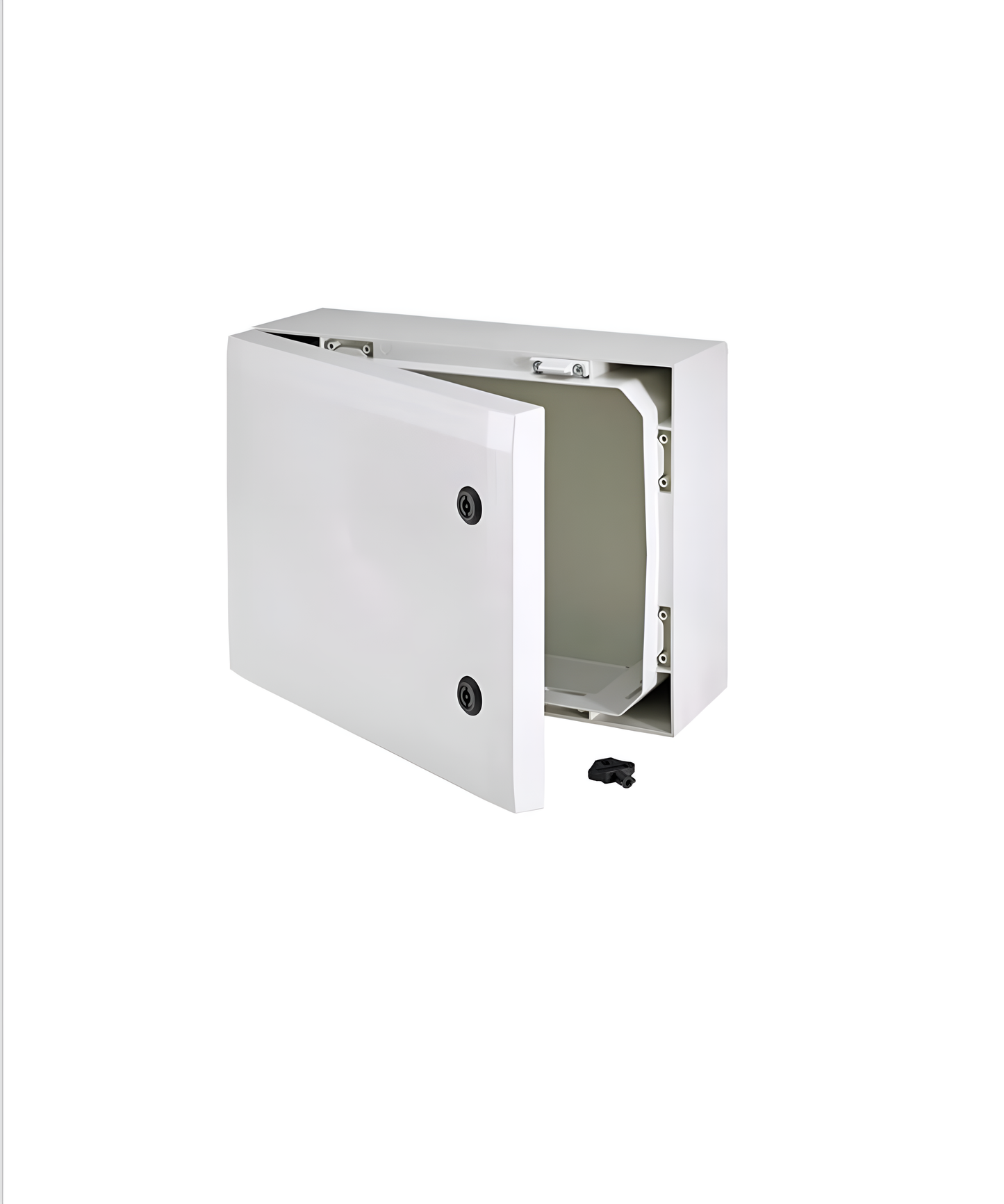

Part of the ARCA IEC (ARCN) series, the ARCA 406021 (8120026) is a high-performance wall-mounted enclosure designed for control and measurement applications in demanding electrical environments. Constructed from durable, UV-resistant polycarbonate, this cabinet ensures long-term protection against harsh conditions while maintaining a sleek PC grey finish.

Key Features & Specifications:

  • Dimensions: 400mm (H) × 600mm (W) × 210mm (D) | Weight: 8400g
  • Material: Halogen-free polycarbonate with UV resistance
  • Protection Ratings:
  • IP66 (Complete dust ingress protection & powerful water jet resistance)
  • IK10 (Exceptional impact resistance for heavy-duty use)
  • Safety & Compliance:
  • Flammability Rating: UL 94 5VA (Highest flame-retardant certification)
  • ATEX Certified: No | UV Resistant: Yes
  • Secure Design:
  • 2-point locking system for enhanced security
  • Hinges on the short side for easy access
  • Installation: Supports vertical mounting for flexible placement

Ideal Applications:                                                                                                         Control & Measurement Systems
 Electrical Installations
 Terminal Enclosures (Not suited)
 Power Distribution Boards (Not suited)
 Electronic Devices (Not suited)

Engineered for durability and reliability, the ARCA 406021 (8120026) is an excellent choice for industrial, commercial, and infrastructure projects requiring a high-protection, long-lasting enclosure solution.

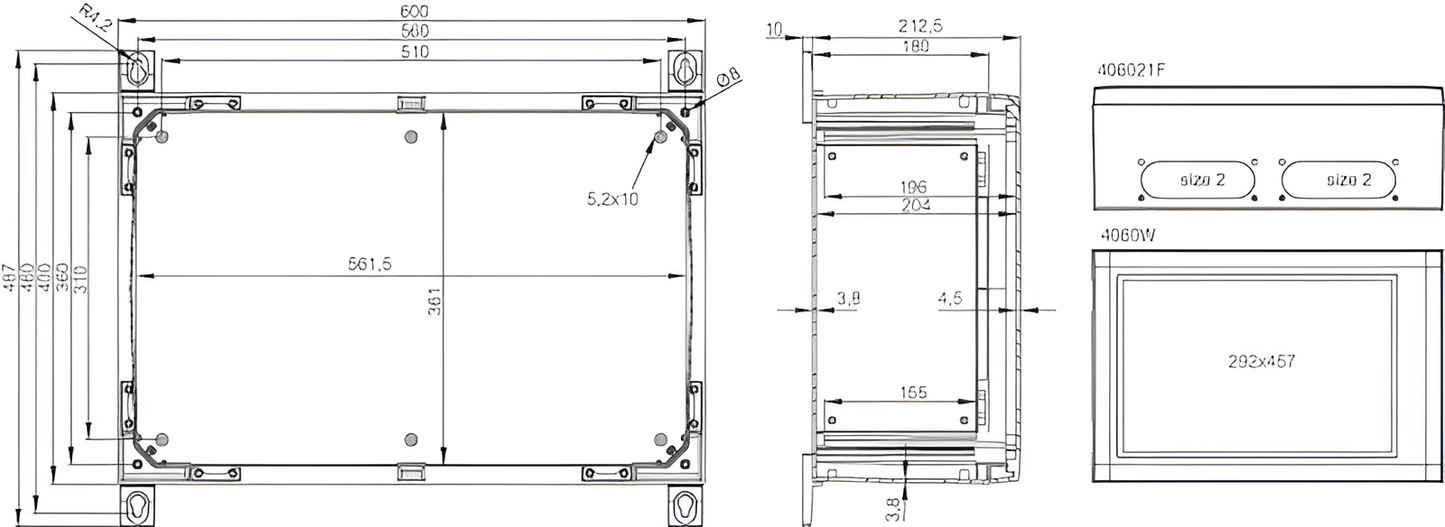

See dimensional drawing here

See full data sheet here

Enquire below for pricing and availability
