ARCA Solid PC 3828 13 T Enclosure (5330363)

Product Number: 5330363

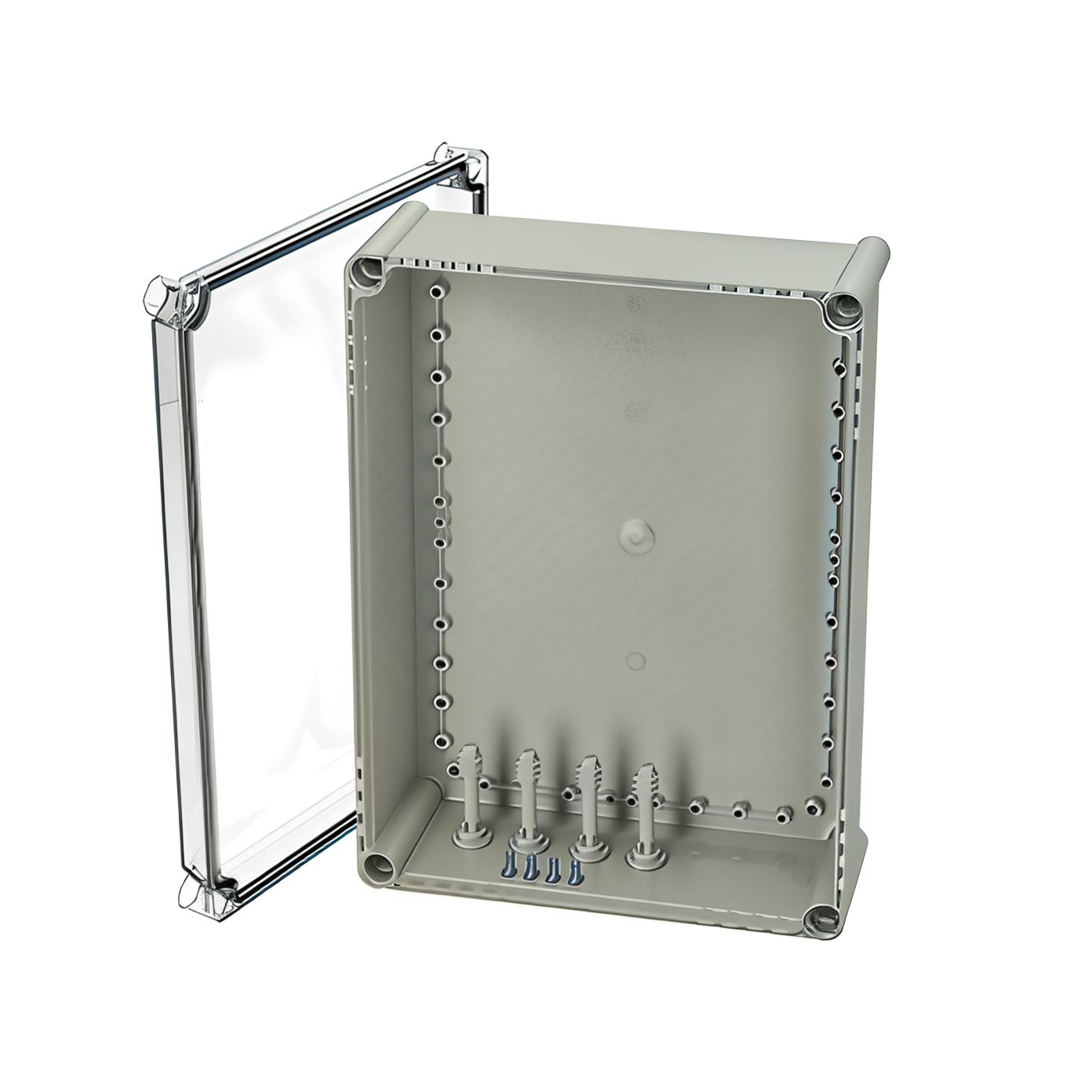

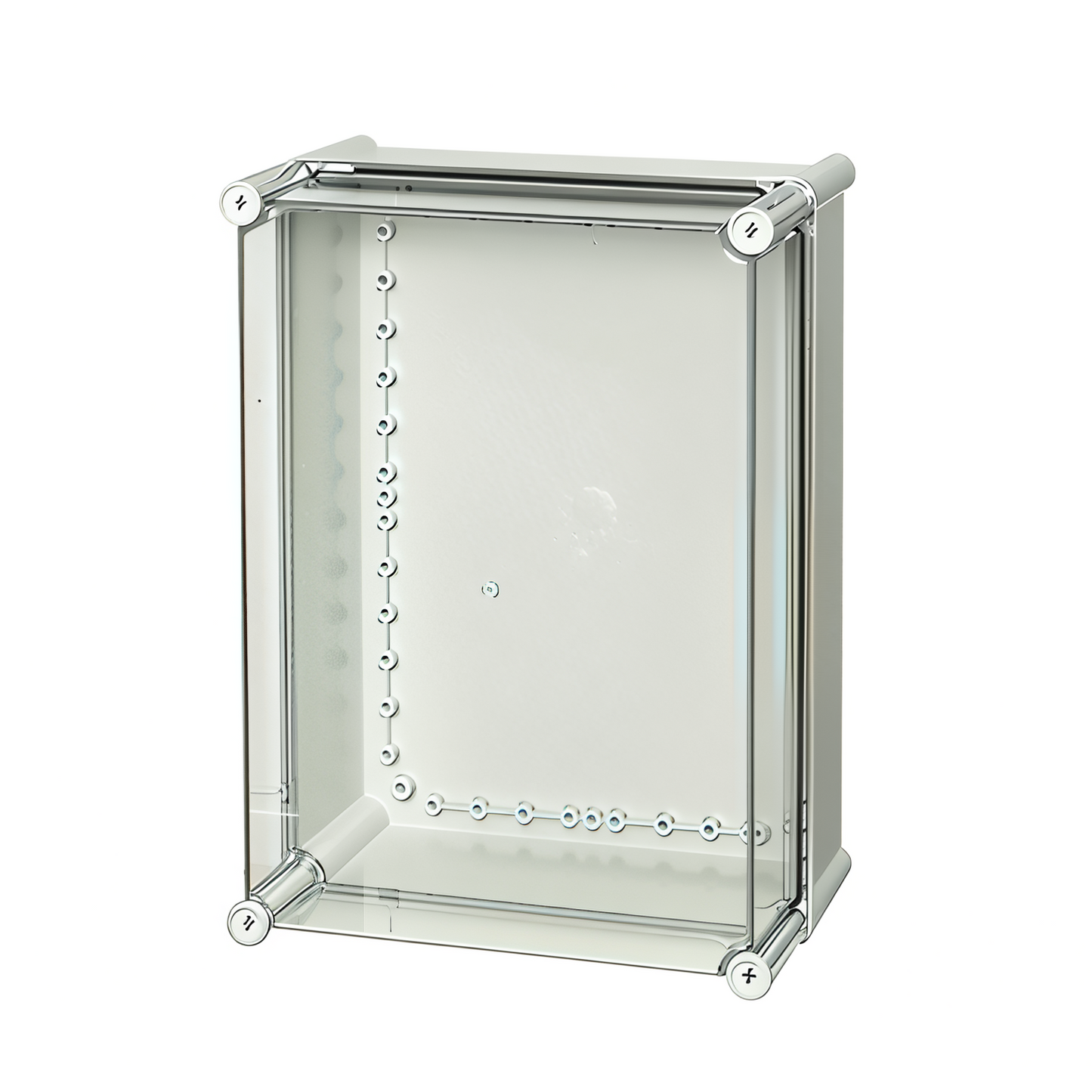

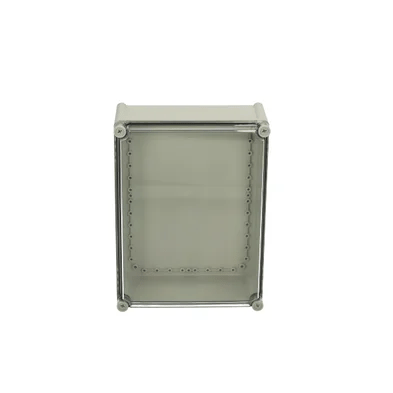

The SOLID PC 3828 13 T is a general-purpose polycarbonate enclosure from the SOLID PC series (SOLI), designed for versatility in control, measurement, terminal enclosures, and electrical installations. Featuring a transparent PC cover, this enclosure provides easy visibility while maintaining high durability and protection.

Key Specifications:

• Dimensions: 380mm (H) × 280mm (W) × 130mm (D)
• Weight: 1507g
• Material: Halogen-free, UV-resistant polycarbonate

Protection Ratings:

• IP66)_67 (Dustproof, waterproof & temporary immersion resistant)
• IK08 (Impact-resistant)
• Flammability Rating: UL 746C 5VA (High flame resistance)

Certifications & Compliance:

• ATEX: No
• UV Resistant: Yes

• Installation: Supports vertical mounting

Applications:

• Control & Measurement: Yes
• Terminal Enclosures: Yes
• Electrical Installations: Yes

Ideal for industrial, commercial, and utility applications, the SOLID PC 3828 13 T (5330363) ensures reliable protection and visibility in demanding environments.

See dimensional drawing here

See full data sheet here
