Rittal AX 1090.000 Steel Enclosure | 600x1000x250mm | IP66
Rittal AX 1090.000 Steel Enclosure | 600x1000x250mm | IP66
Rittal
Regular price
£202.60 GBP
Regular price
Sale price
£202.60 GBP
Unit price
/
per
Shipping calculated at checkout.

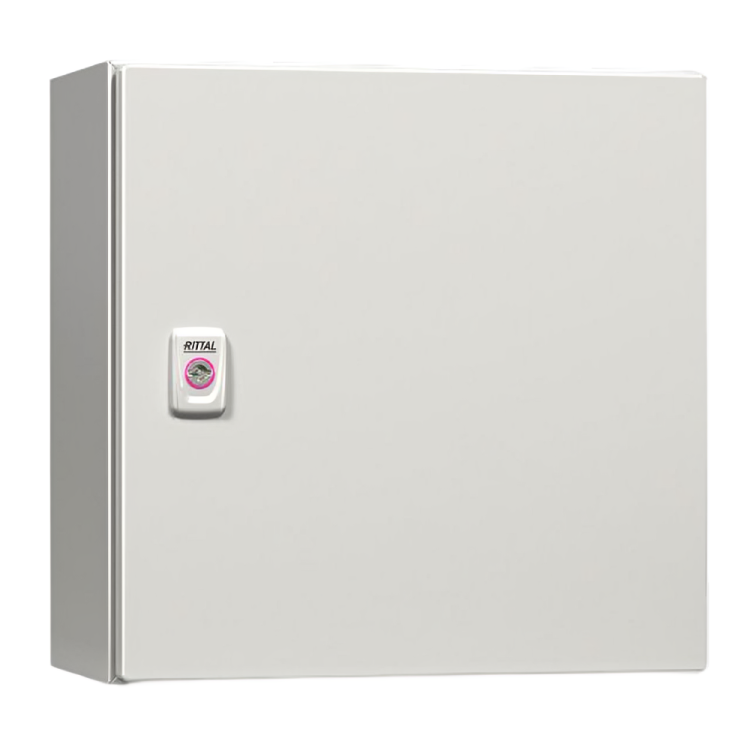

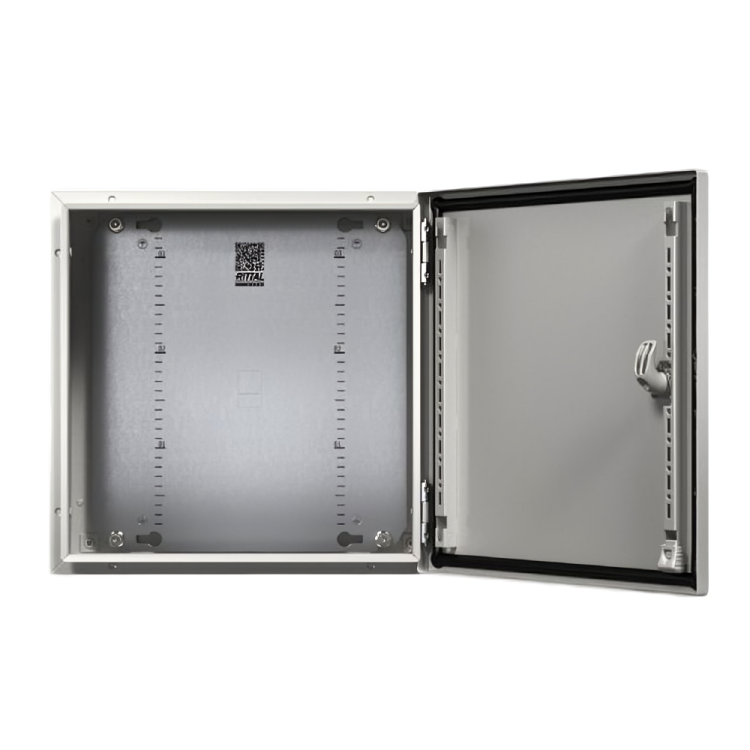

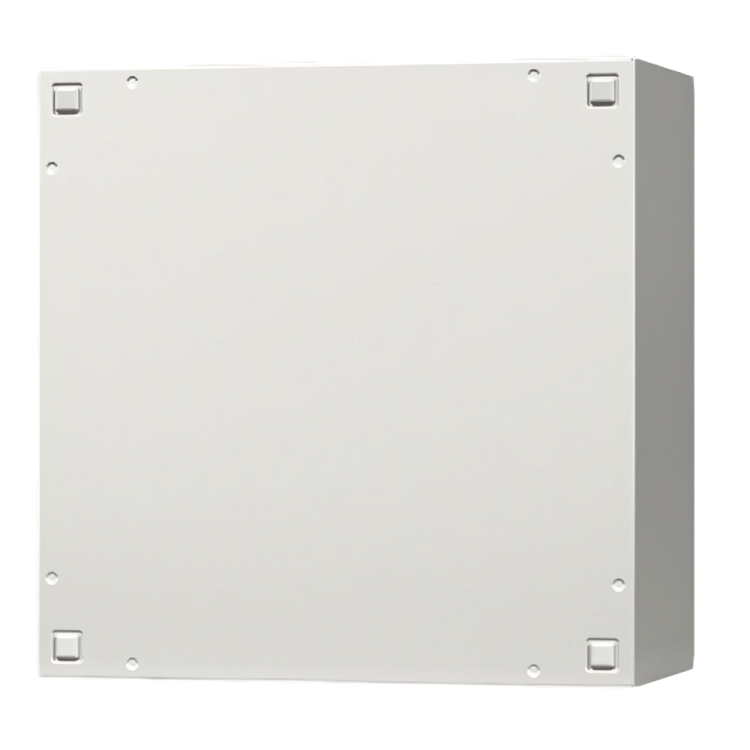

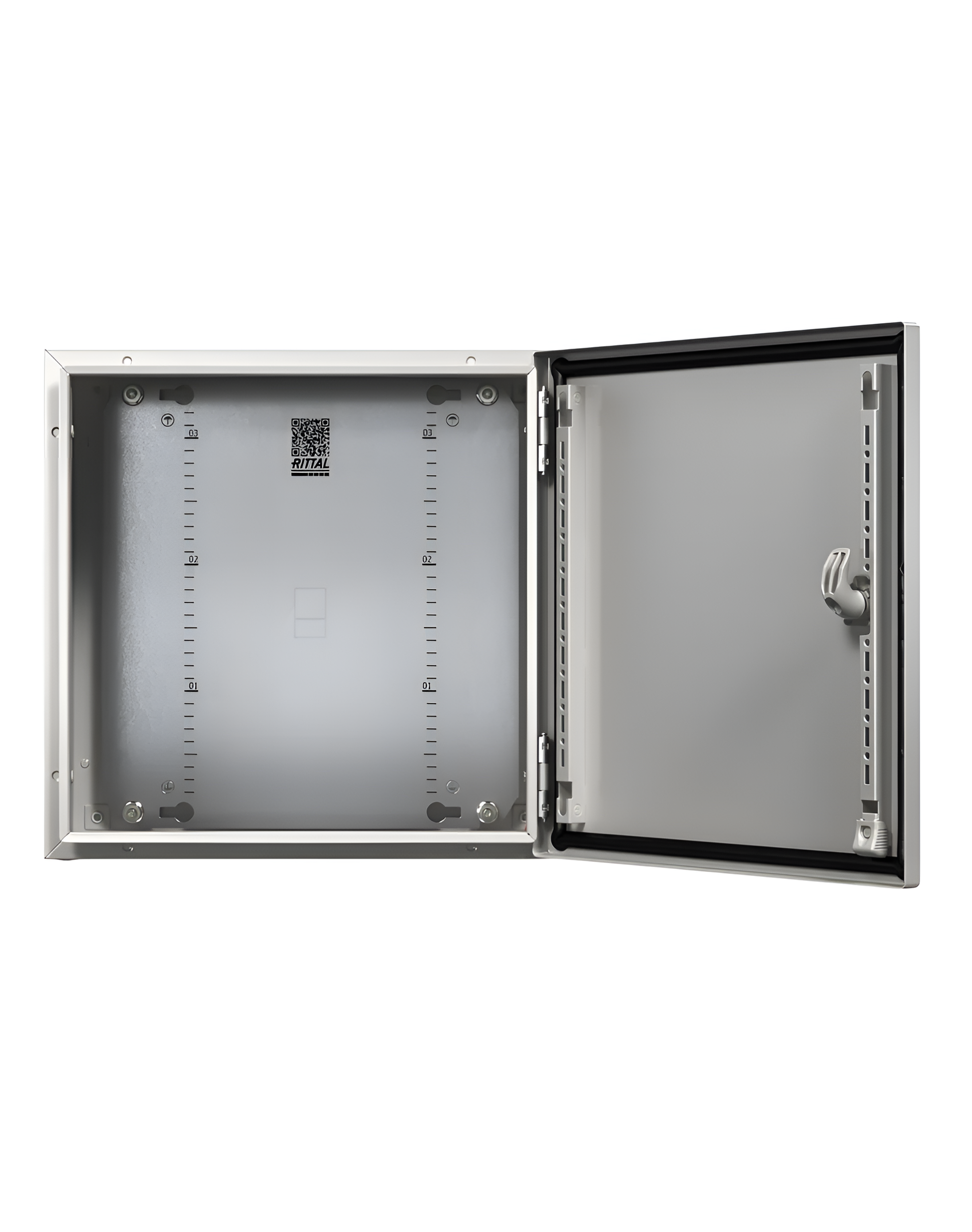

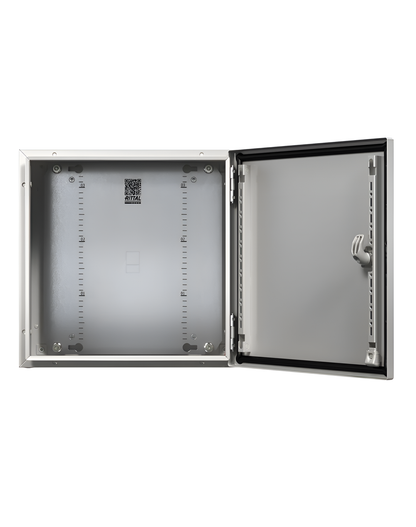

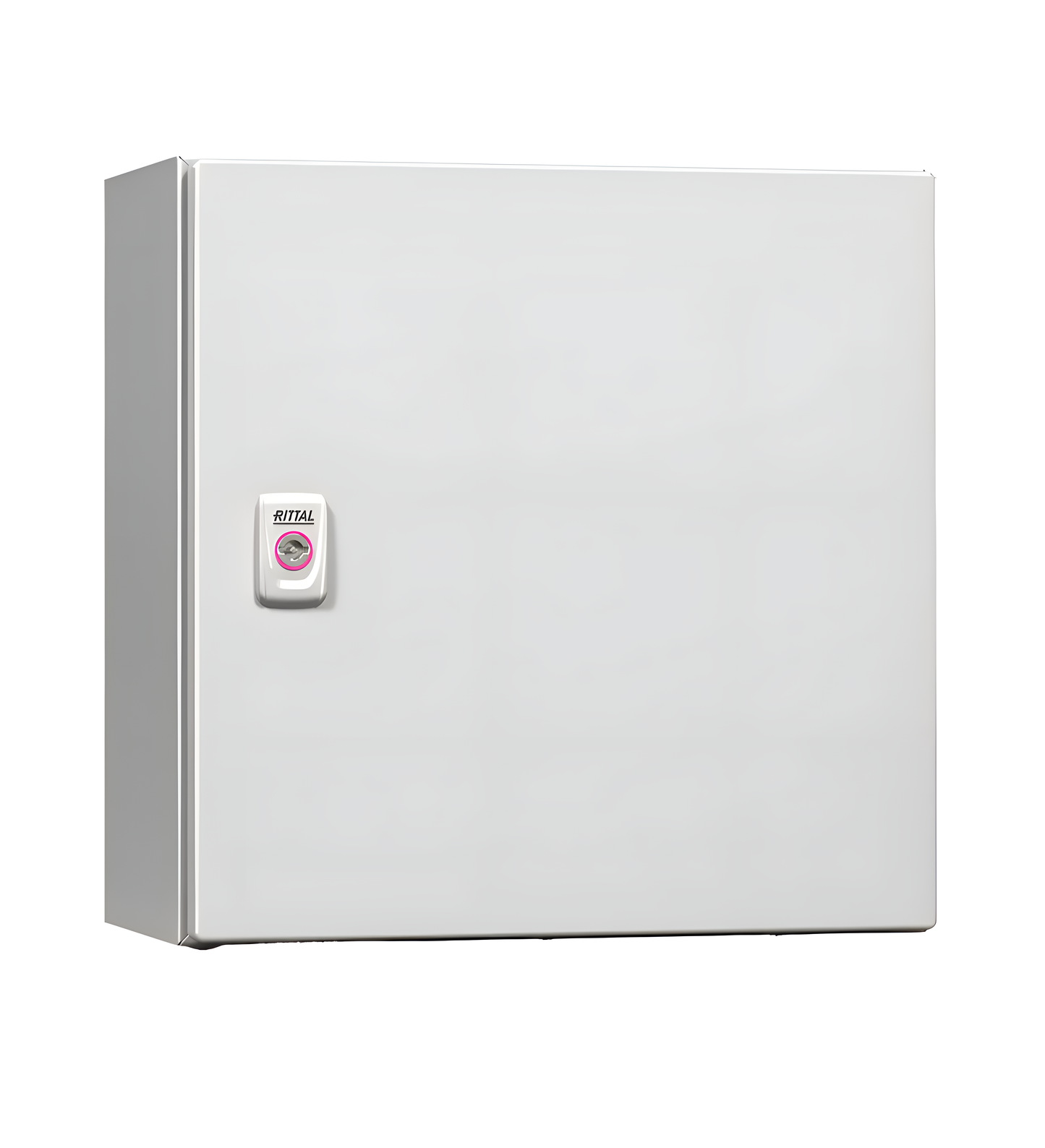

The Rittal AX 1090.000 is a robust, single-door sheet steel compact enclosure (600x1000x250mm) engineered for demanding industrial environments. This IP66-rated wall-mounting cabinet provides superior protection for sensitive electrical components, with Integral Enclosure Locators in the Roof, Base and Side.
Key Specifications:
| Product Number | AX 1090.000 |
| Dimensions (W x H x D) | 600 mm x 1,000 mm x 250 mm |
| Material | Enclosure & Door: Sheet steel (1.5mm & 2mm thick) |
| Surface Finish | Dipcoat primed, powder-coated (RAL 7035) |
| Protection Category | IP 66 (IEC 60 529) & NEMA 4 (UL 508A) |
| IK Code | IK10 |
| Includes | Enclosure with door, Mounting plate, Gland plate(s), Perforated door strip, 2 x 3mm double-bit cam locks |
| Door Hinge | Interchangeable (right to left) |
See full data sheet here
