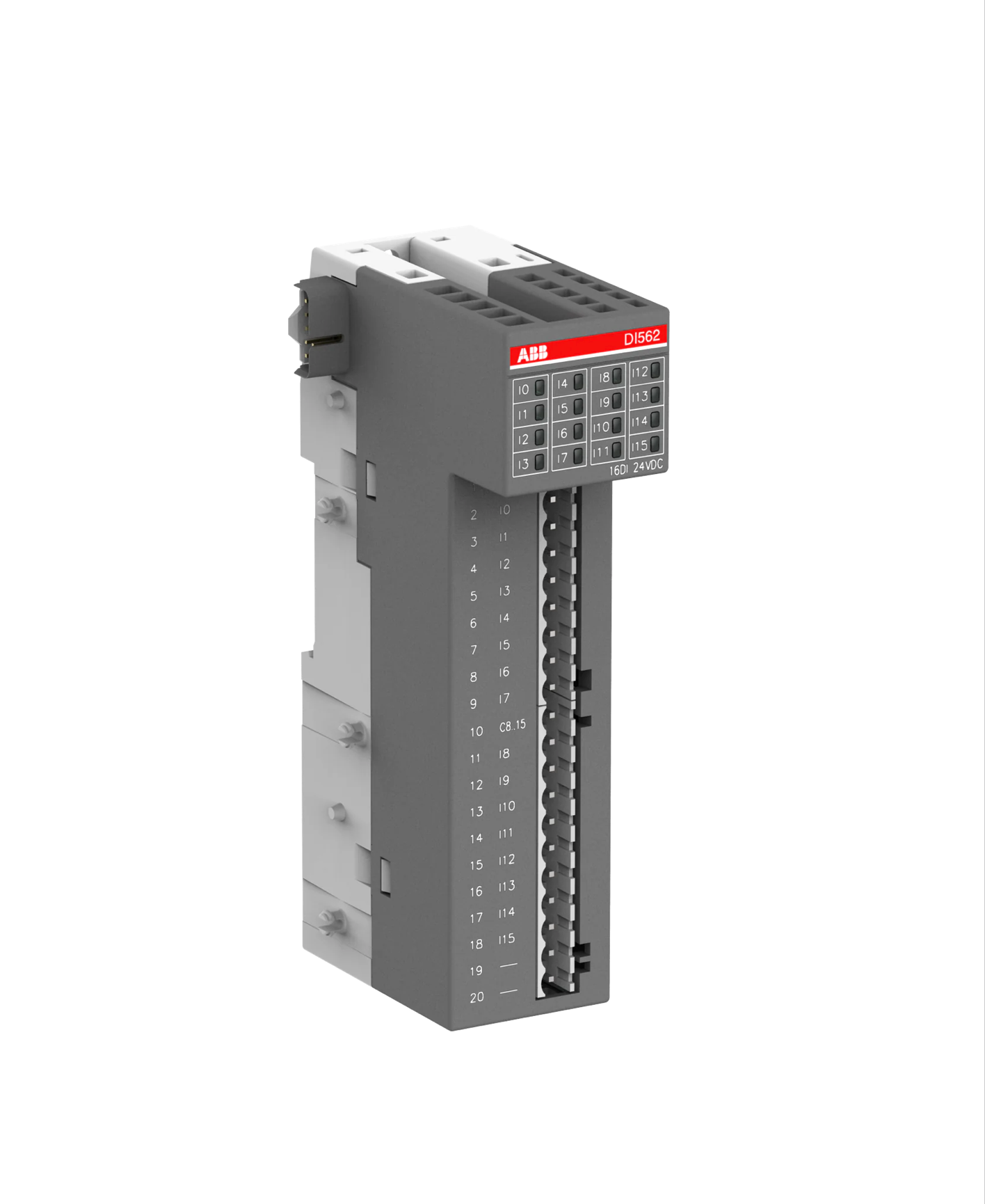

Digital input module. 16 DI sink/source: 24VDC - DI562 (1TNE968902R2102)

The ABB DI562 is a digital input module designed for distributed automation I/O's. Below are the detailed specifications:

Dimensions:

• Product Net Weight: 0.116 kg
• Product Net Depth / Length: 135 mm
• Product Net Height: 74 mIO
• Product Net Width: 34 mm
• Gross Weight: 0.215 kg
• Package Level 1 Depth / Length: 93 mm
• Package Level 1 Height: 63 mm
• Package Level 1 Width: 170 mm
• Package Level 1 Units: 1 carton

Technical:

• Function: 16 DI sink/source: 24VDC
• Number of Digital Inputs: 16
• Number of Digital Configurable I/Os: 0
• Input Voltage Type: AC/DC
• Input Current: 5 mA
• Maximum Input Voltage: 0 ... 30 V
• Delay Time (τ): 8 … 8 ms
• Connection Type: Pluggable
• Degree of Protection: IP20
• Ambient Air Temperature: Operation 0 ... +60 °C, Storage -40 ... +70 °C

Additional Information:

• Product Main Type: DI562
• Product Name: Distributed Automation I/Os

See full data sheet from ABB here
