ARCA IEC Wall-Mounted Enclosure (302015)

Product Number: 302015

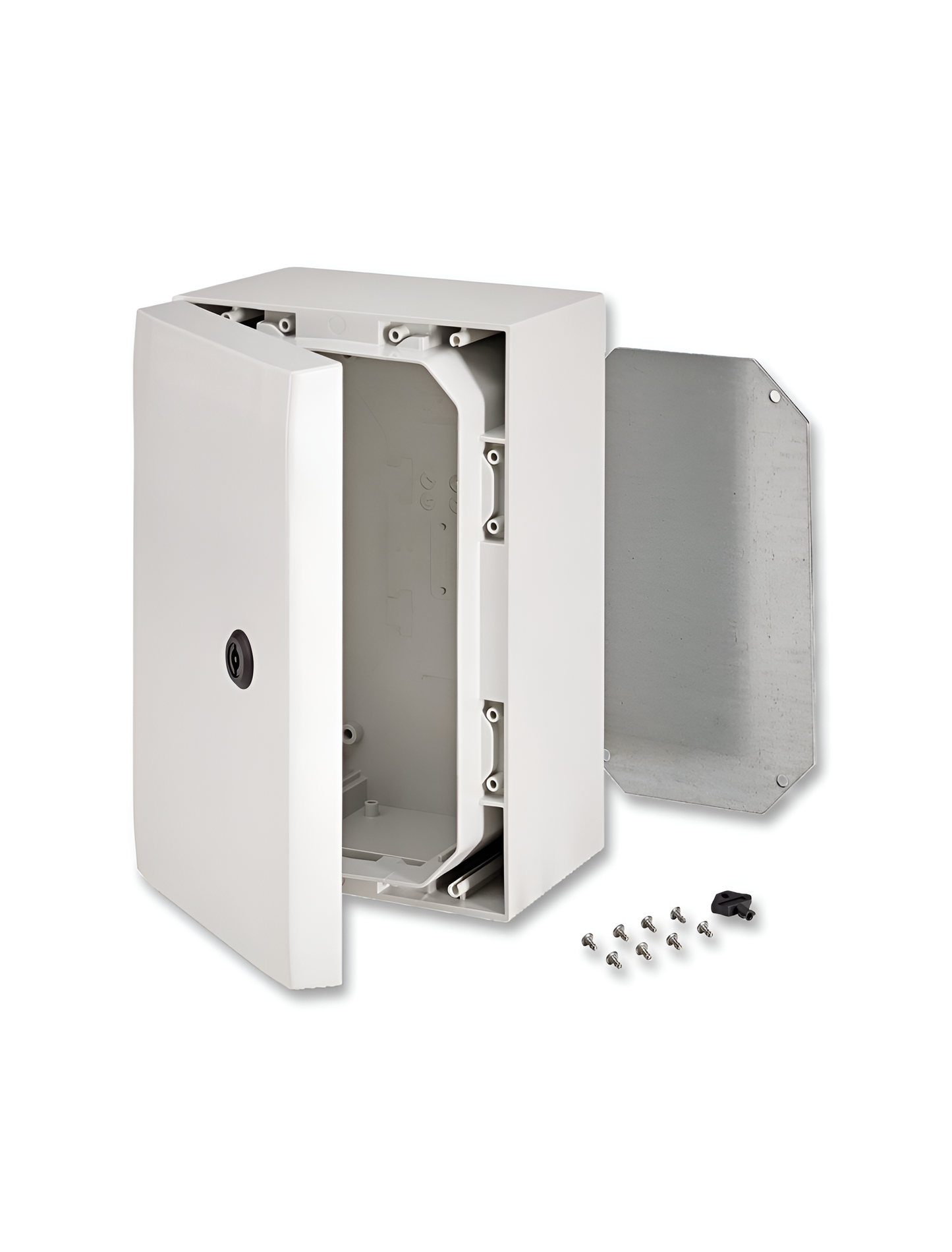

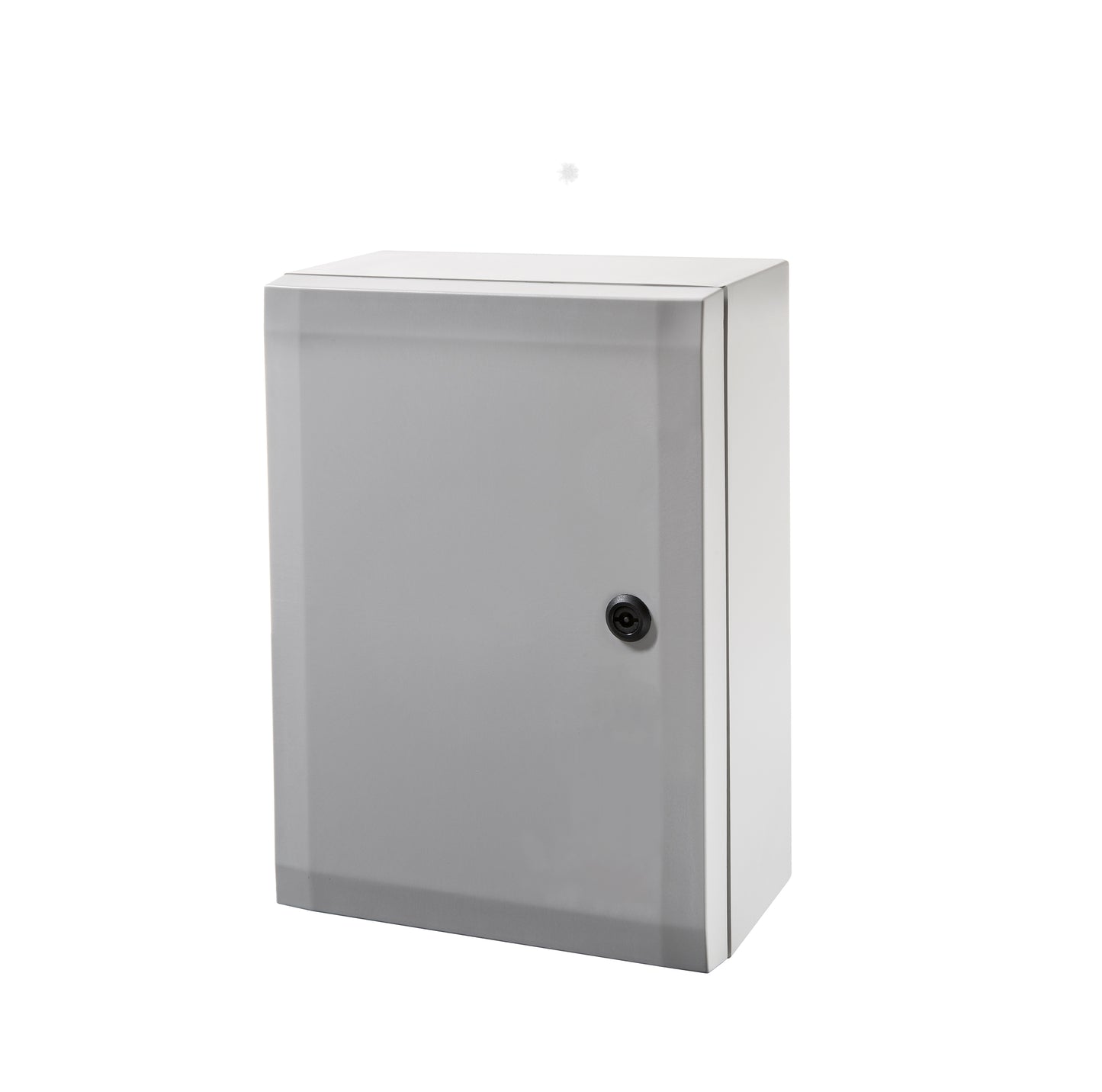

Part of the ARCA IEC (ARCN) series, the ARCA 302015 (8120002) is a high-performance wall-mounted cabinet designed for control and measurement applications in electrical installations. Constructed from durable, halogen-free polycarbonate, this enclosure features a PC grey cover, 1-point locking system, and hinges on the long side for secure and easy access.

Key Features & Specifications:

• Dimensions: 300mm (H) × 200mm (W) × 150mm (D)
• Weight: 2400g
• Material: UV-resistant polycarbonate with UL 94 5VA flammability rating

Protection Ratings:

• IP66 (Dust-tight & Water resistant)
• IK10 (High resistance to mechanical impacts)

Certifications & Compliance:

• UL508A listed
• Halogen-free & UV-resistant
• ATEX: Not certified

Installation:

• Supports vertical mounting

Applications:

• Ideal for control & measurement systems
• Suitable for electrical installations
• Not intended for terminal enclosures, power distribution boards, or electronic devices

Engineered for durability and reliability in demanding environments, the ARCA 302015 (8120002) ensures superior protection and long-term performance.

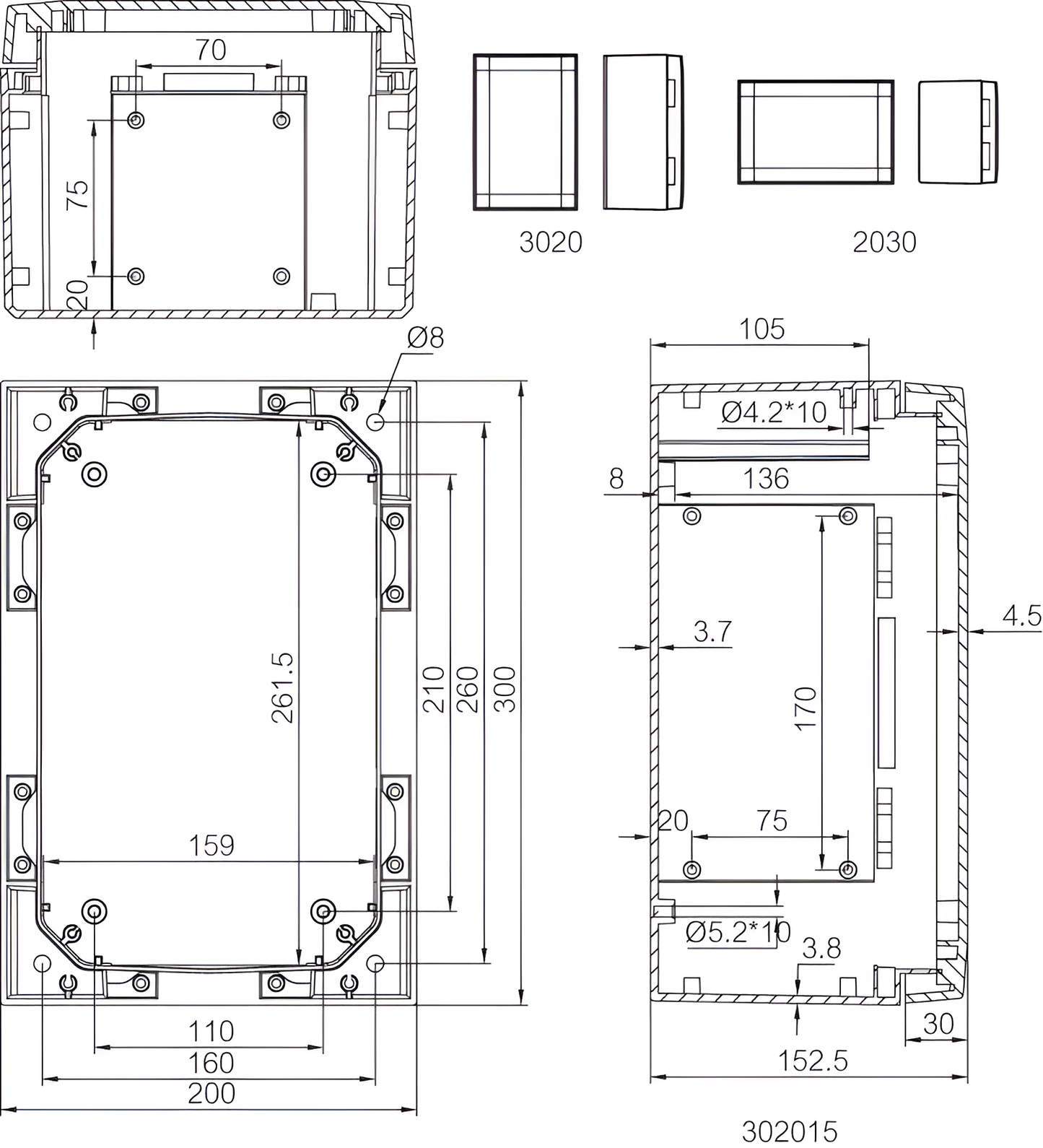

See dimensional drawing here

See full data sheet here
