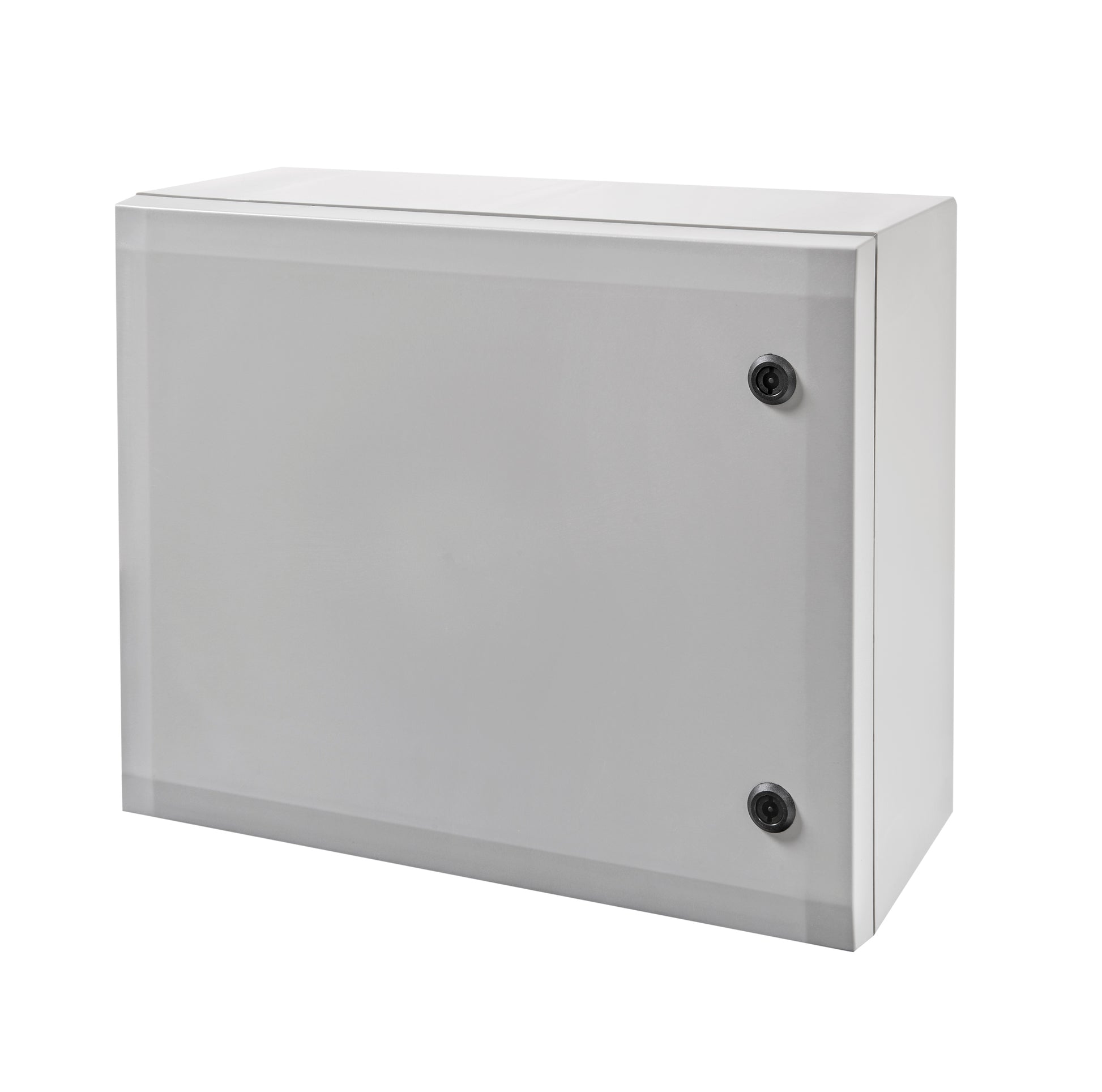

ARCA 304015 | Fibox 300x400x150mm IP66 Polycarbonate Enclosure

ARCA 304015- 300x400x150 enclosure IP66 – Fibox 300x400x150mm IP66 Wall-Mount Enclosure

ARCA 304015 is part of the ARCA IEC series (ARCN) and is designed as a robust 300x400x150 IP66 polycarbonate enclosure suitable for control and measurement applications in electrical installations. This wall-mounted cabinet features a PC grey cover, 2-point locking system, and hinges on the short side for secure and convenient access.

Key Specifications:

• Dimensions: 300H x 400W x 150D (mm)
• Weight: 4200g
• Material: Halogen-free, UV-resistant polycarbonate
• Protection Ratings: - IP66 (Dustproof & waterproof), - IK10 (High impact resistance)
• Flammability Rating: UL 94 5VA (High flame resistance)
• Certifications & Compliance: - ATEX: No, - UV Resistant: Yes
• UL Code : UL508A
• Installation: Vertical mounting supported
• Applications: Control & Measurement Systems - Yes, Electrical Installations - Yes, Terminal Enclosures - Yes, Power Distribution Boards - Yes, Electronic Devices - Yes

What's included in the box:

• Cabinet base and door with PUR gasket
• Mounting plate and fixing screws
• 2-point locking system with keys
• Door guide

Ideal for industrial and commercial settings requiring durable, high-protection enclosures, the ARCA 304015 ensures long-term reliability in harsh environments.

See dimensional drawing here

See full data sheet here
