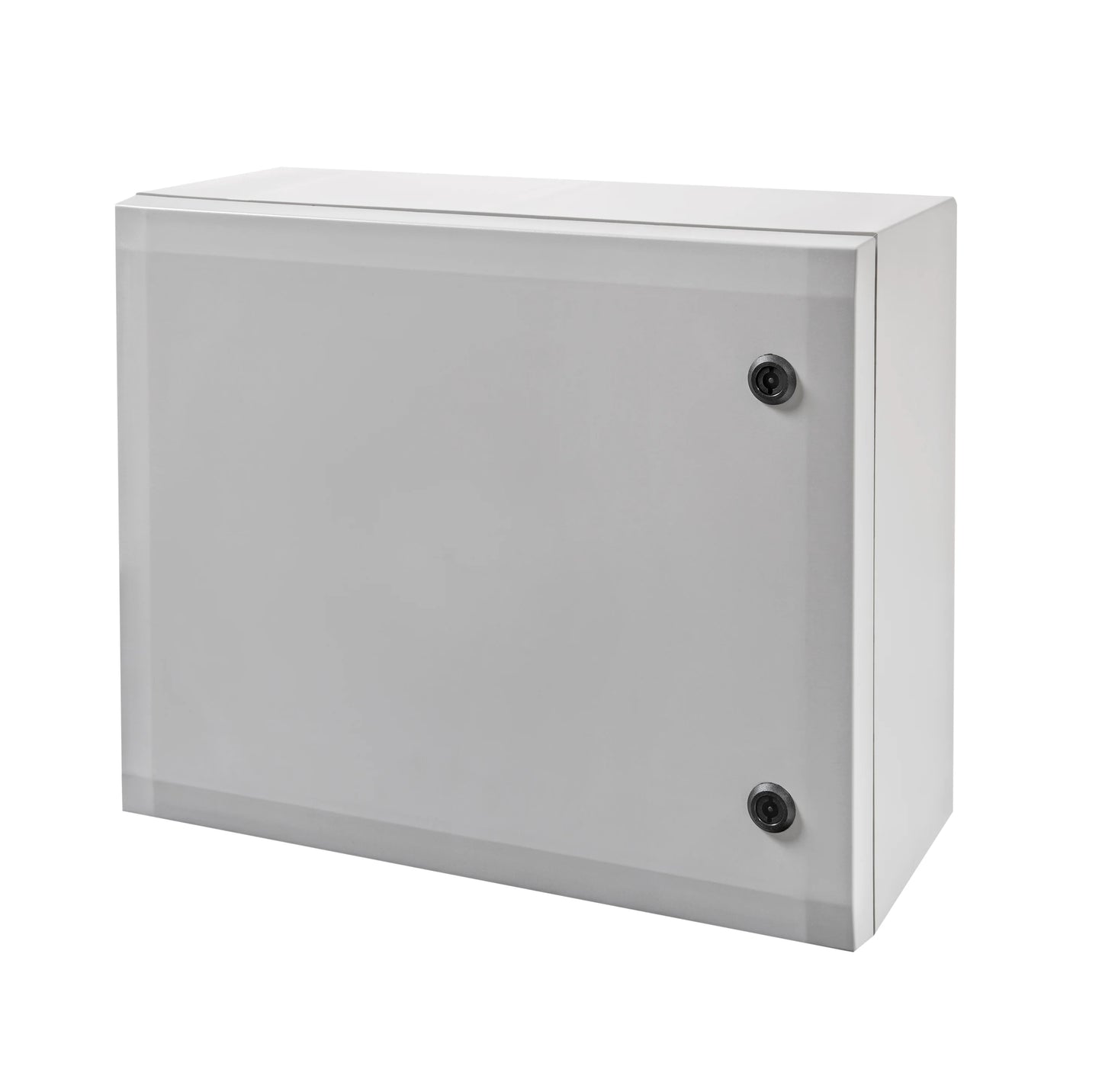

ARCA 304021 – Fibox 300x400x210mm IP66 Enclosure
Part of the ARCA IEC (ARCN) series, the ARCA 304021 (8120023) is a high-performance wall-mounted enclosure designed for control and measurement applications in demanding environments. Constructed from UV-resistant, halogen-free polycarbonate, this cabinet ensures durability and long-term protection against harsh conditions.
Key Features & Specifications:
| Model | ARCA 304021 |
| Part Number | 8120023 |
| Brand | Fibox |
| External Height | 300 mm |
| External Width | 400 mm |
| External Depth | 210 mm |
| Material | Polycarbonate (halogen-free, UV-resistant) |
| IP Rating | IP66 (dust-tight & water-proof) |
| IK Rating | IK10 (20 joule impact resistance) |
| Colour | RAL7035 (light grey) |
| Locking System | 2-point locking system |
| Hinge Position | Short side |
| Flammability Rating | UL 94 5VA |
| UL Code | UL 508A |
| ATEX Rated | No |
| UV Resistant | Yes |
| Weight | 4800g |
| Mounting Plate | Sold separately |
| Installation | Wall-mounting, vertical orientation |
| Applications | Control & measurement, electrical installations |
Key Benefits:
Mounting plate included – the ARCA 403021 comes ready for your components.
Engineered for reliability in industrial and commercial settings, the ARCA 304021 (8120023) offers exceptional protection, security, and longevity in challenging environments.

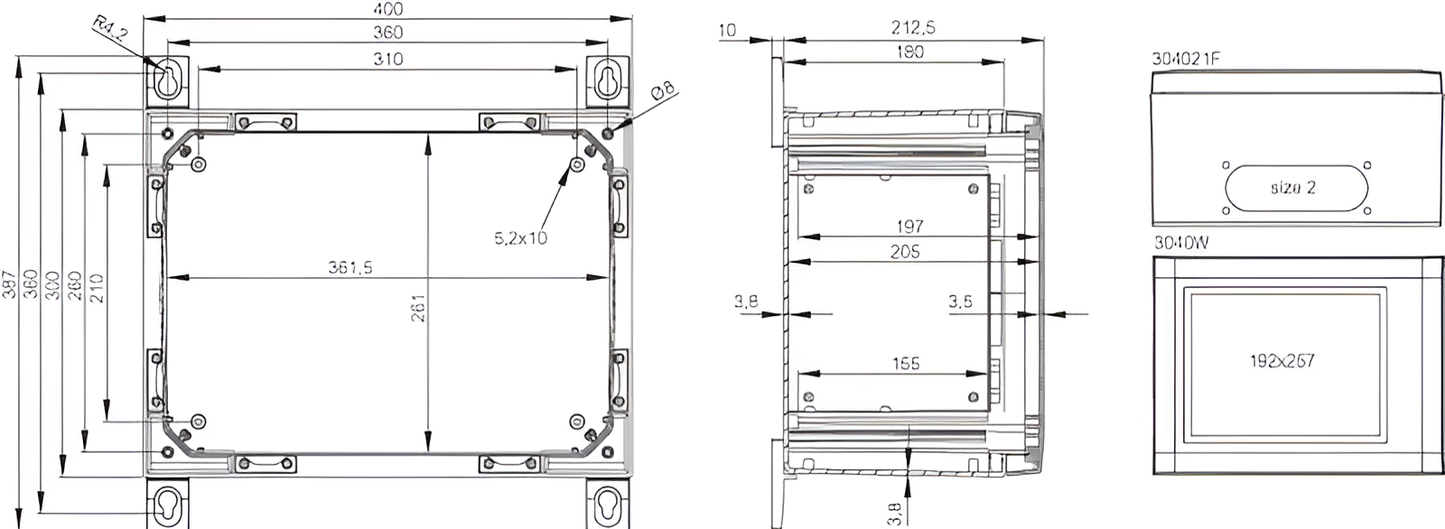

See dimensional drawing here
See full data sheet here
