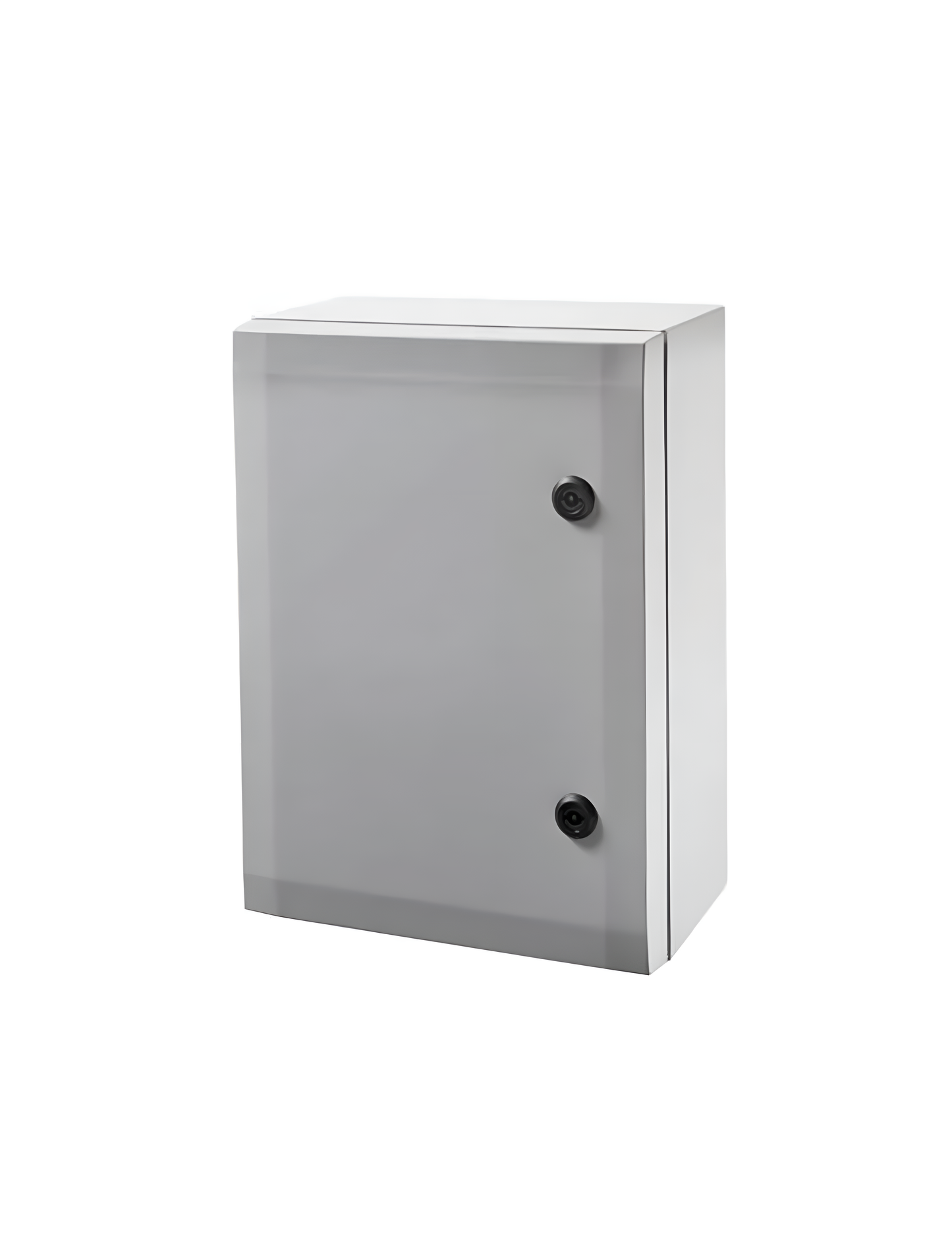

ARCA IEC Wall-Mounted Enclosure (403015)

Product Number: 8120006

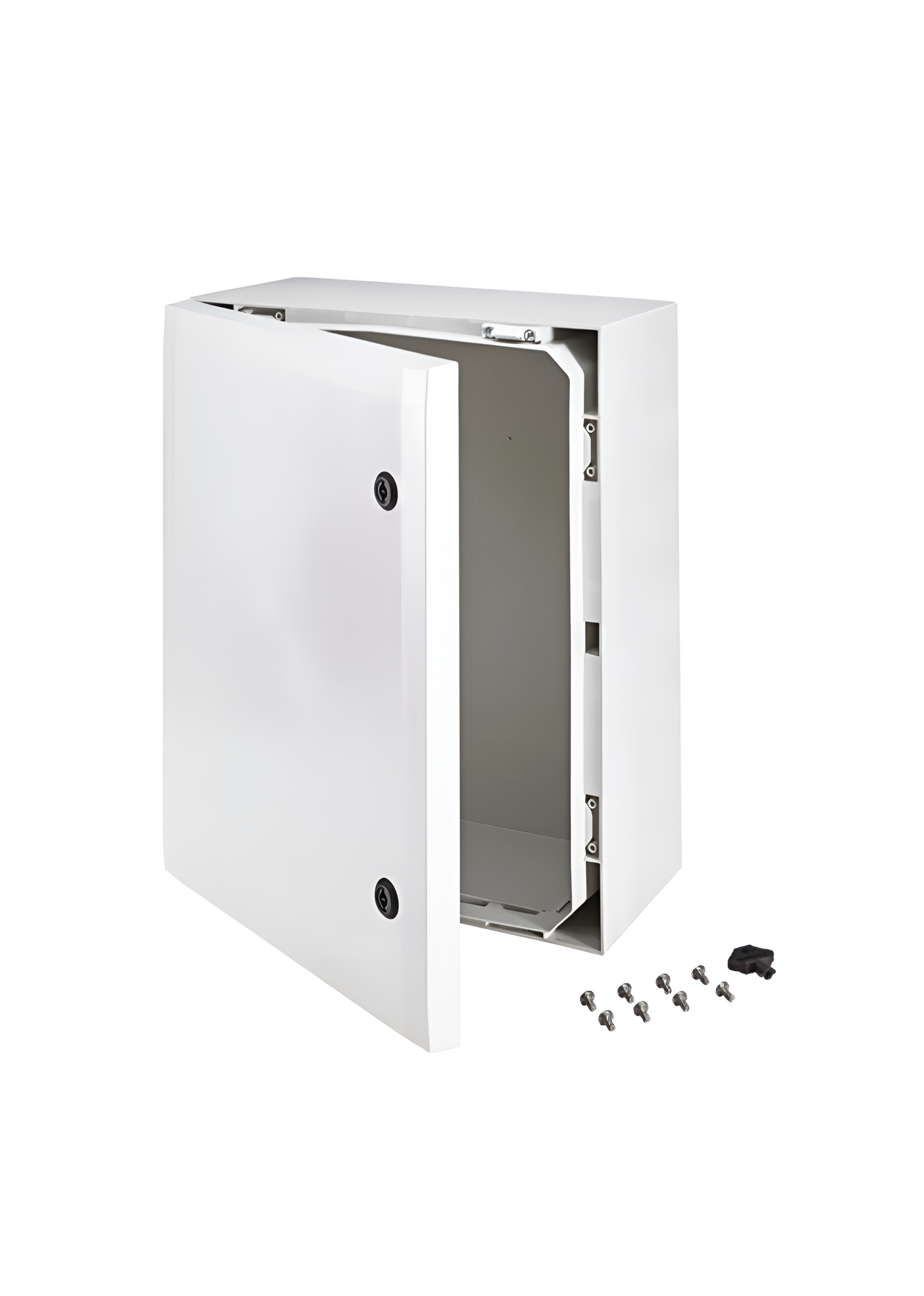

The ARCA 403015 is part of the ARCA IEC series (ARCN) and serves as a durable polycarbonate enclosure designed for control and measurement applications in electrical installations. This wall-mounted cabinet features a PC grey cover, a 2-point locking system, and hinges on the long side for secure and easy access.

Key Specifications:

• Dimensions: 400mm (H) × 300mm (W) × 150mm (D)
• Weight: 4200g
• Material: Halogen-free, UV-resistant polycarbonate
• Protection Ratings: - IP66 (Dust-tight & protected against powerful water jets), - IK10 (High resistance to mechanical impact)
• Flammability Rating: UL 94 5VA (Superior flame resistance)
• Certifications & Compliance: - ATEX: No,  - UV Resistant: Yes, - UL Code : UL508A
• Installation: Supports vertical mounting
• Applications: - Control & Measurement: Yes, - Terminal Enclosures: No, - Power Distribution Boards: No, - Electrical Installations: Yes, - Electronic Devices: No

Ideal for demanding industrial and commercial environments, the ARCA 403015 ensures long-lasting protection for electrical components in harsh conditions.

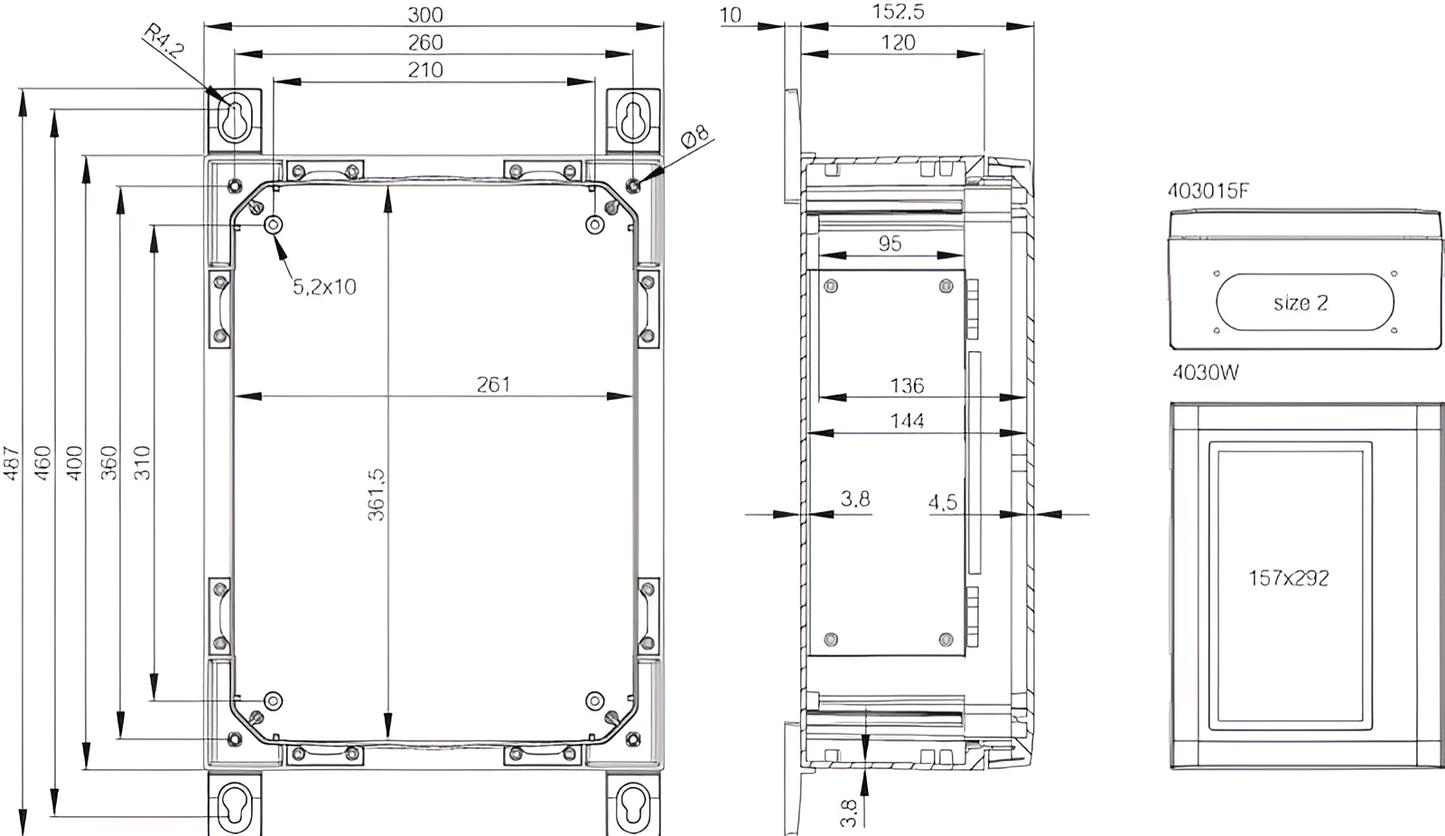

See dimensional drawing here

See full data sheet here
