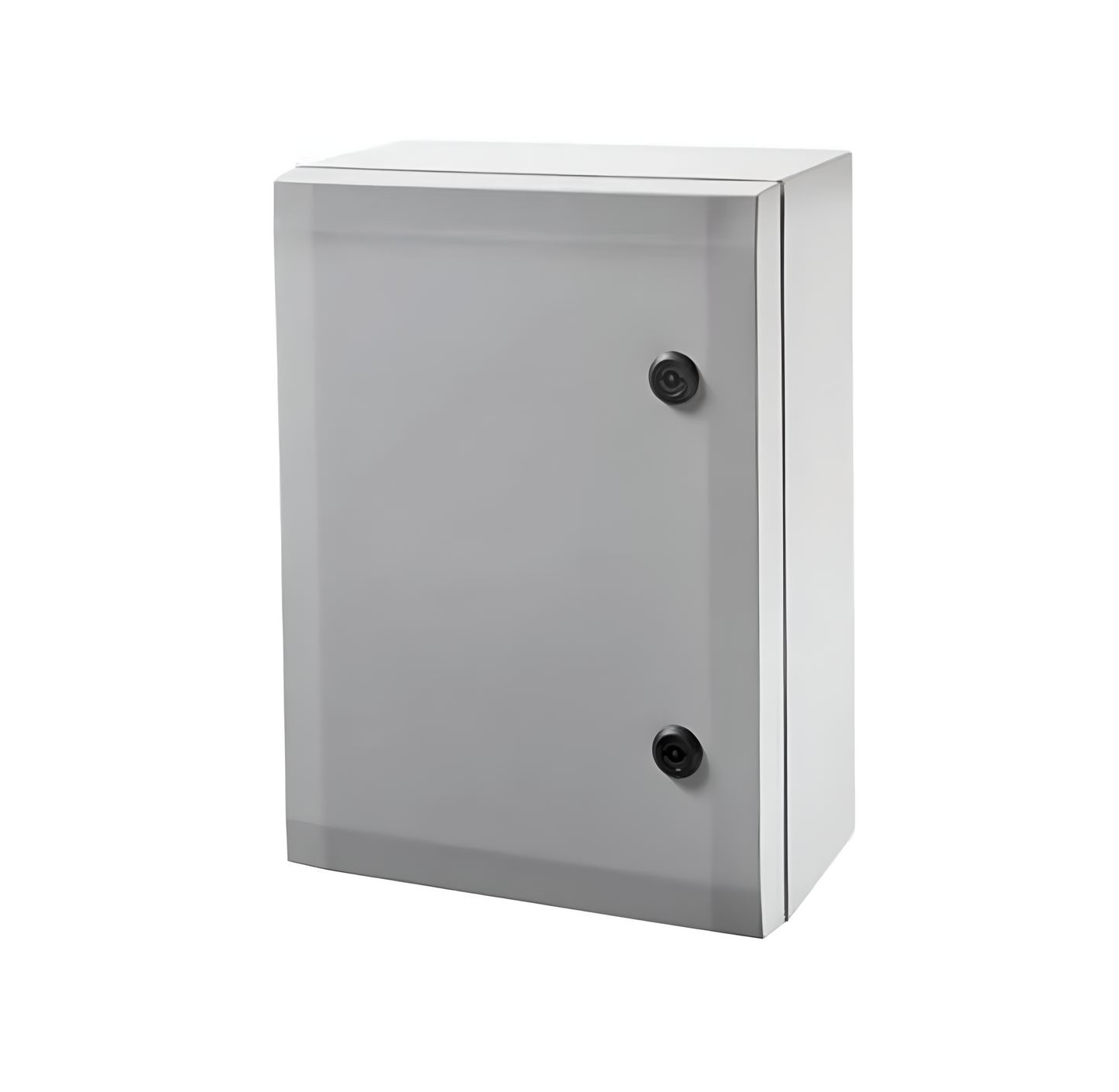

• ARCA IEC Wall-Mounted Enclosure (403015)
  • ARCA IEC Wall-Mounted Enclosure (403021)
  • ARCA IEC Wall-Mounted Enclosure (403021)
1 3

ARCA 403021 | Fibox 400x300x210mm IP66 Polycarbonate Enclosure

ARCA 403021 | Fibox 400x300x210mm IP66 Polycarbonate Enclosure

Fibox

£82.30 GBP
£123.77 GBP £82.30 GBP
Sale Restocking Soon
Shipping calculated at checkout.

ARCA 403021 | Fibox 400x300x210mm IP66 Polycarbonate Enclosure | Product Number: 8120007

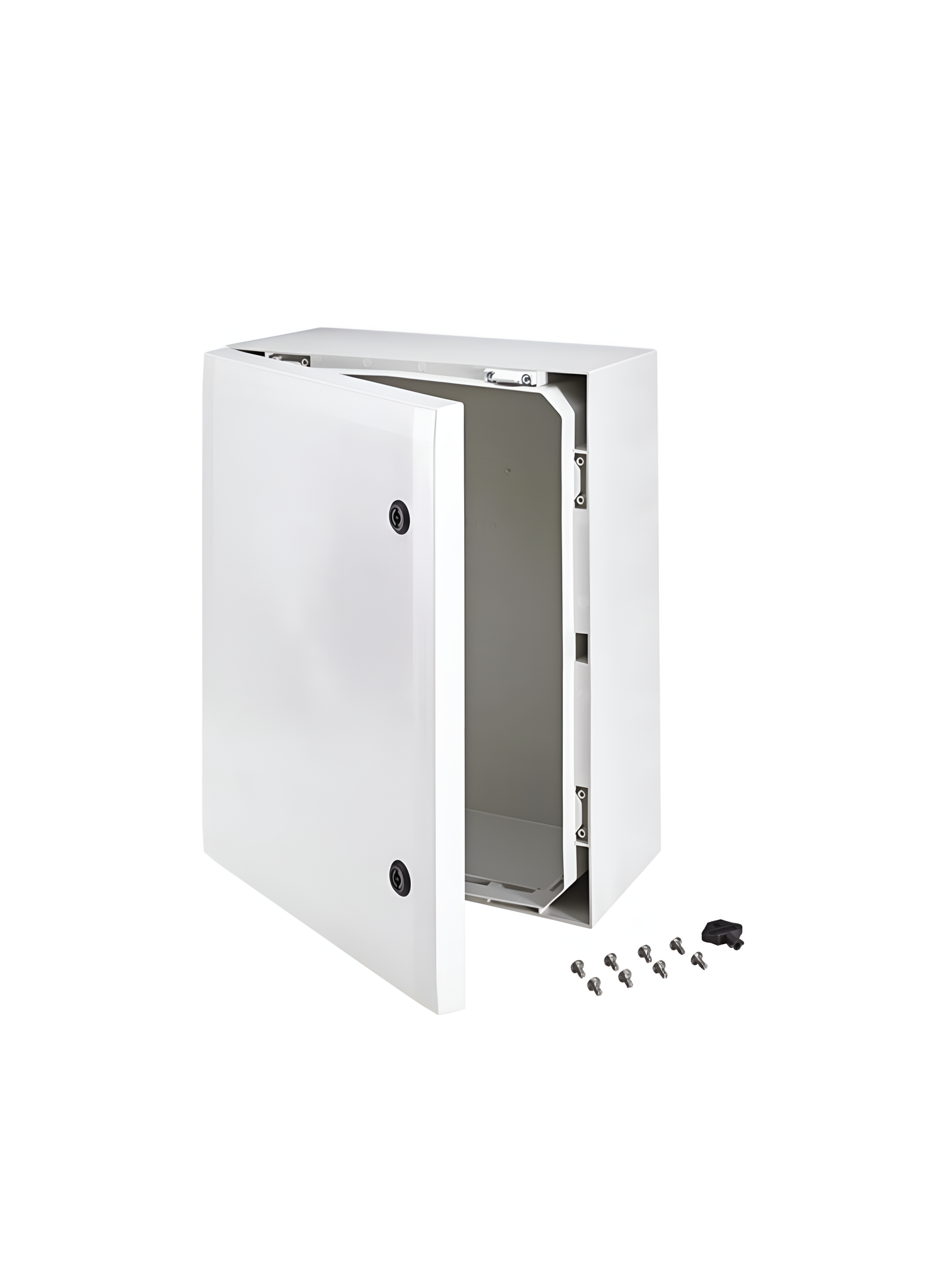

The ARCA 403021 is part of the ARCA IEC series (ARCN) and is a high-performance polycarbonate enclosure designed for control and measurement applications in electrical installations. This wall-mounted cabinet features a PC grey cover, a 2-point locking system, and hinges on the long side for secure and easy access.

Key Specifications:

Model ARCA 403021
Manufacturer Part No 8120007
Brand Fibox
External Height 400 mm
External Width 300 mm
External Depth 210 mm
Material Polycarbonate (halogen-free, UV-resistant)
IP Rating IP66 (dustproof & waterproof)
IK Rating IK10 (20 joule impact resistance)
Colour RAL7035 (light grey)
Flame Rating UL 94 5VA (high flame resistance)
Lock Type 2-point locking system
Hinges On long side for easy access
Mounting Vertical wall mounting
Weight 4800g
Certifications UL 508A
ATEX Rating No
UV Resistant Yes
Applications Control & Measurement, Electrical Installations



Key Benefits:

  • 2-point locking system – provides secure closure on both sides of the door, ensuring a tight seal and preventing dust ingress.
  • Hinges on the long side – the door opens wide for easy access to components, with a door guide for smooth operation.
  • Mounting plate included – the ARCA 403021 comes ready for your components.

Ideal for demanding industrial and commercial environments, the ARCA 403021 ensures durability, security, and long-term performance in harsh conditions.

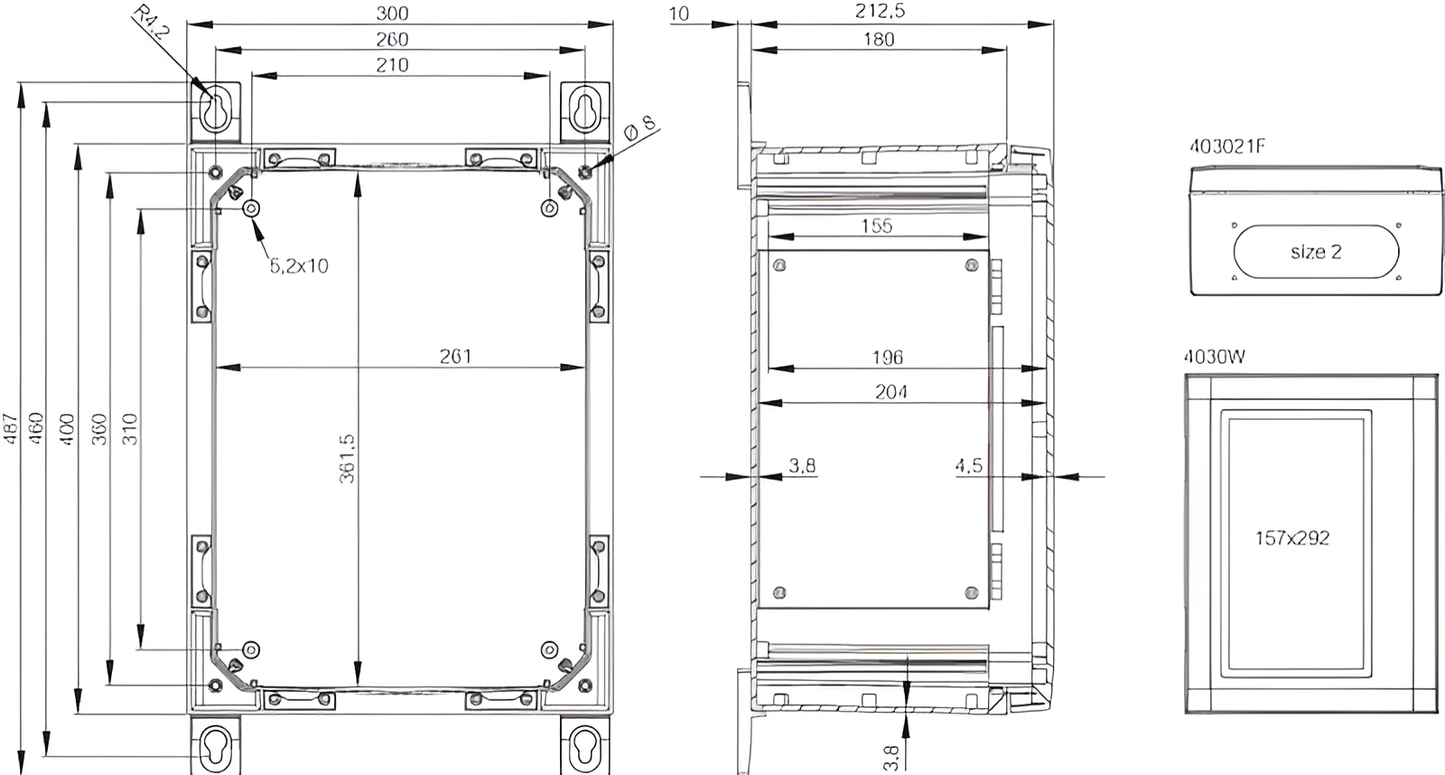

See dimensional drawing here

See full data sheet here
