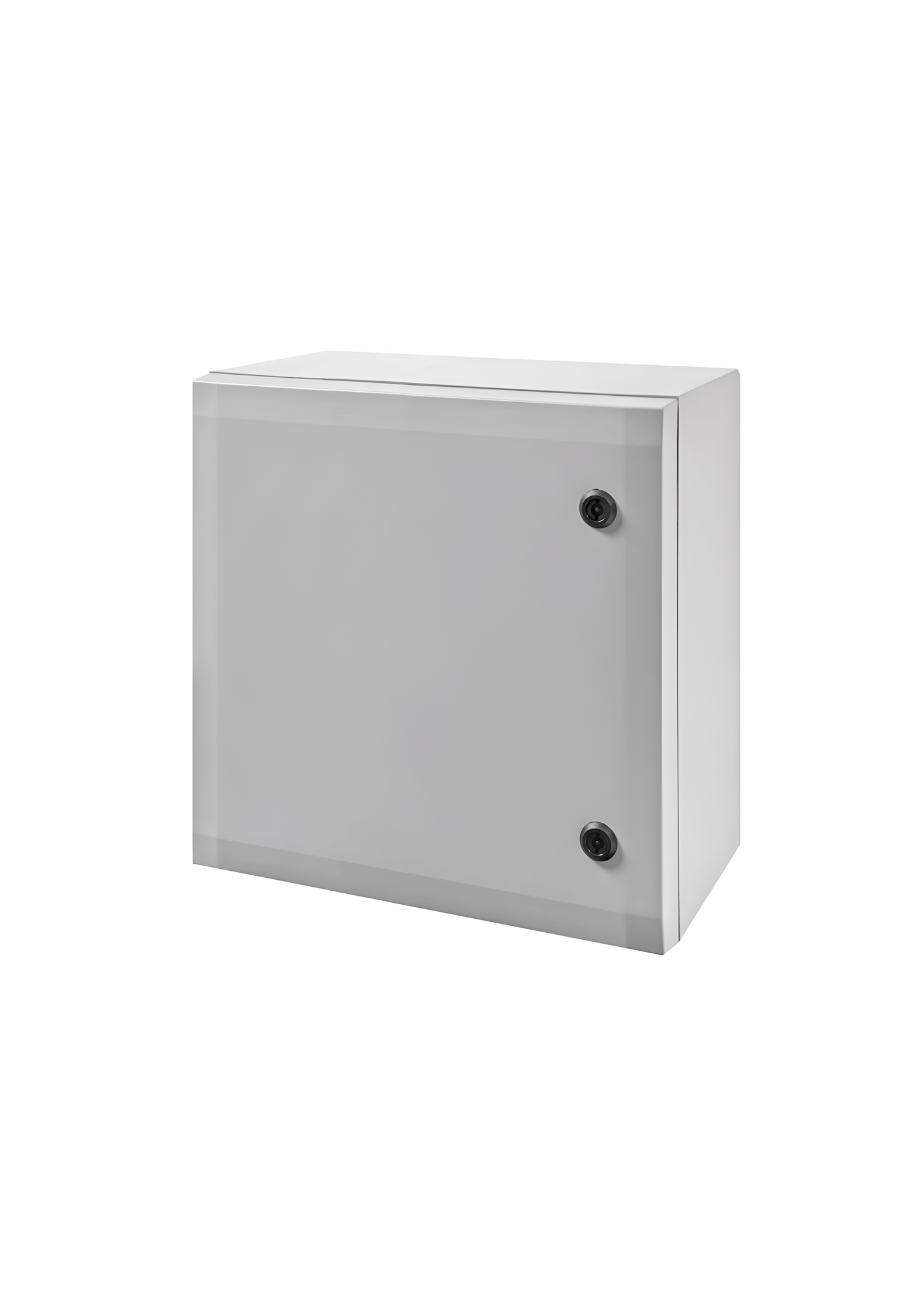

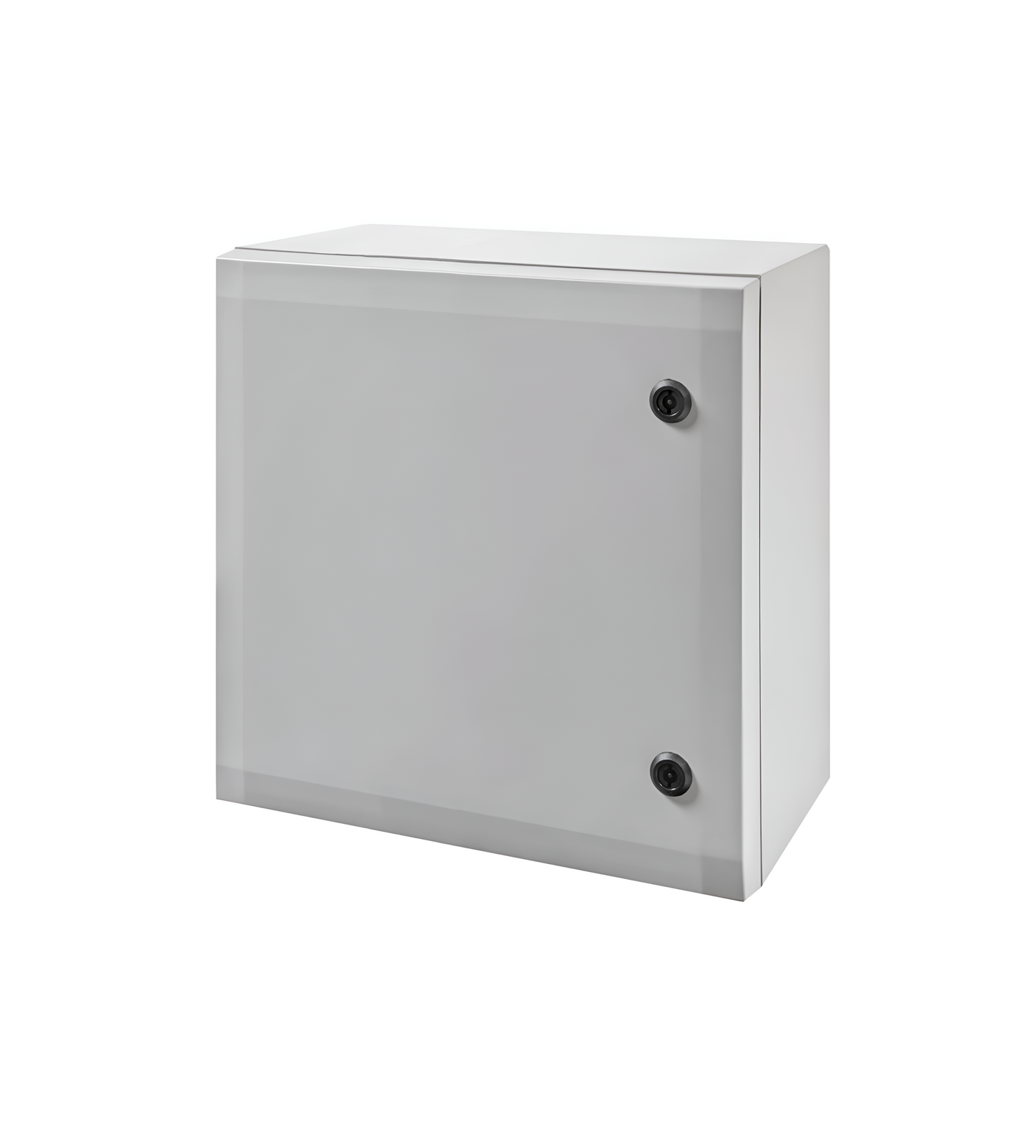

ARCA IEC Wall-Mounted Enclosure (404021)

Product Number: 404021

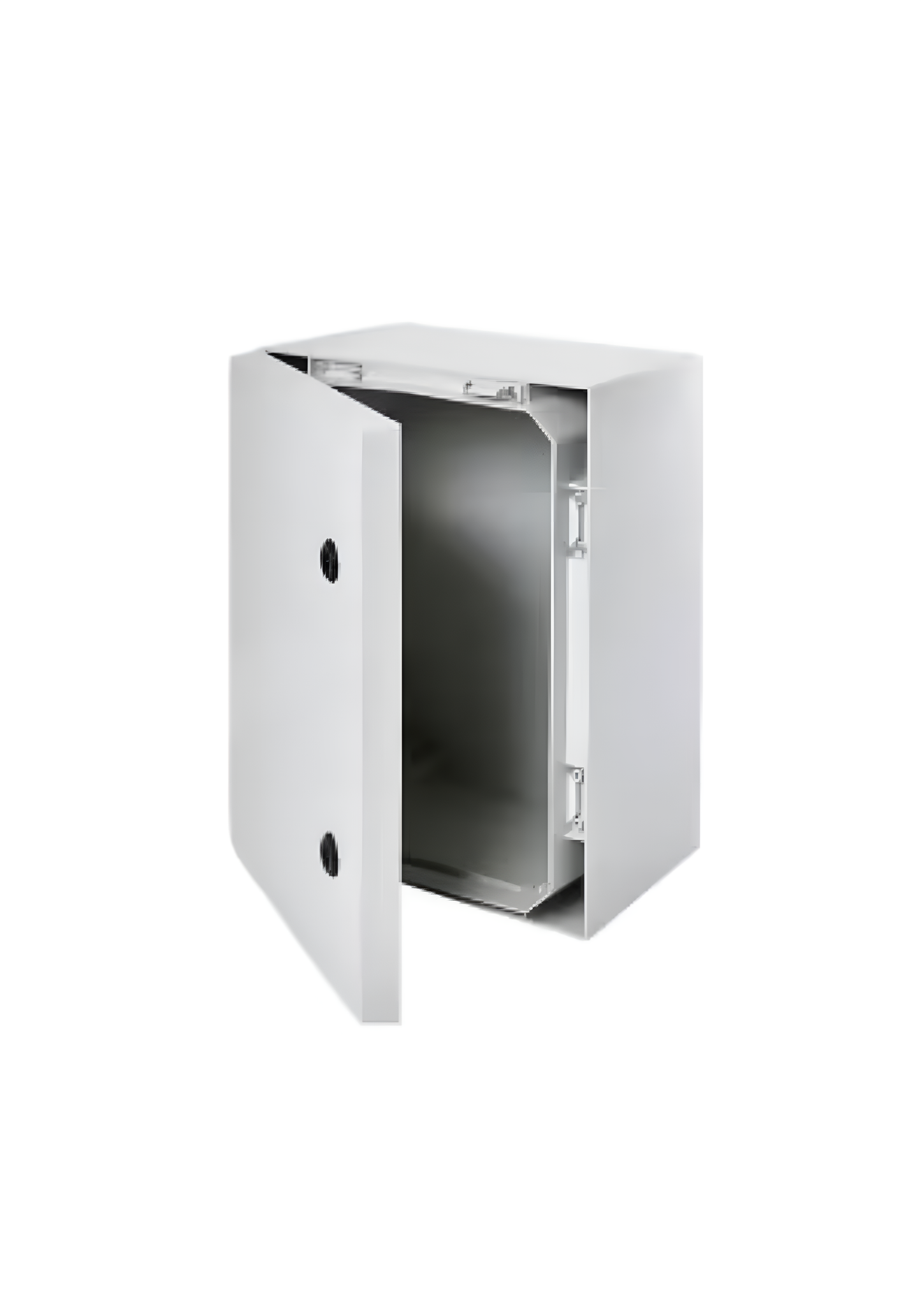

The ARCA 404021 (8120009) is a high-performance polycarbonate cabinet from the ARCA IEC (ARCN) series, designed for secure control and measurement applications in electrical installations. This durable enclosure features a grey PC base and door, reinforced with a PUR gasket for superior weather resistance, and includes a mounting plate with screws for easy component installation.

Key Features:

• Robust Security: Equipped with a 3mm double-bit lock (key included)—S versions include a swing handle with 2-point locking and integrated door guide for enhanced stability.
• Durable Construction: Made from halogen-free, UV-resistant polycarbonate with hinges on the long side for smooth access.

Protection & Compliance:

• IP66 (Complete dust protection & water resistant)
• IK10 (Highest impact resistance)
• UL 94 5VA (Superior flame retardancy)
• UL508A Listed (Industrial control equipment compliance)

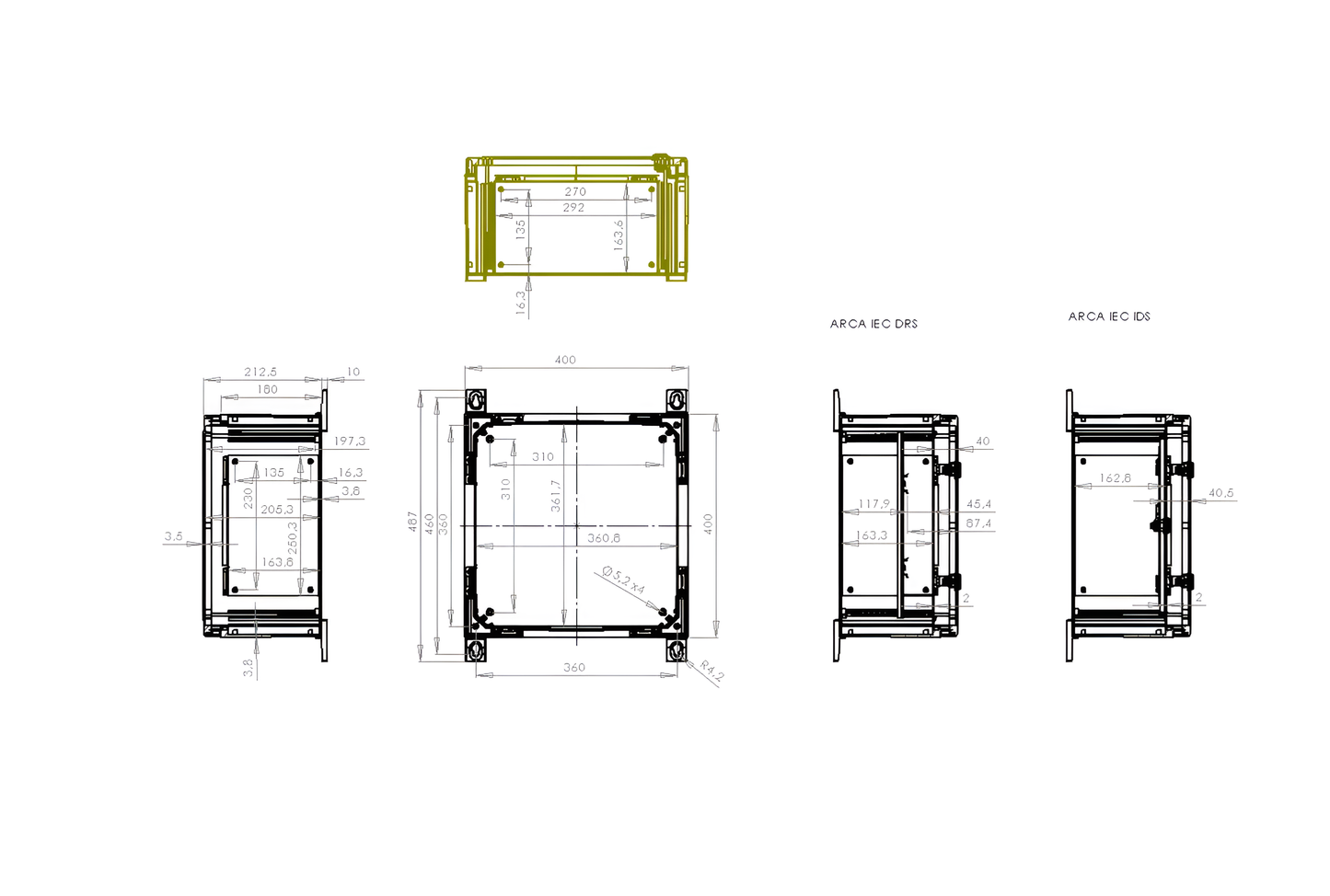

• Dimensions: 400mm (H) × 400mm (W) × 210mm (D)
• Weight: 4800g
• Installation: Supports vertical mounting for flexible placement.

Applications:

✔ Control & Measurement Systems
✔ Electrical Installations
✖ Terminal Enclosures
✖ Power Distribution Boards
✖ Electronic Devices

Ideal for industrial environments requiring secure, weatherproof, and impact-resistant enclosures, the ARCA 404021 ensures long-term reliability in demanding conditions.

See full data sheet here
