ARCA 405021 – Fibox 400x500x210mm IP66 Enclosure

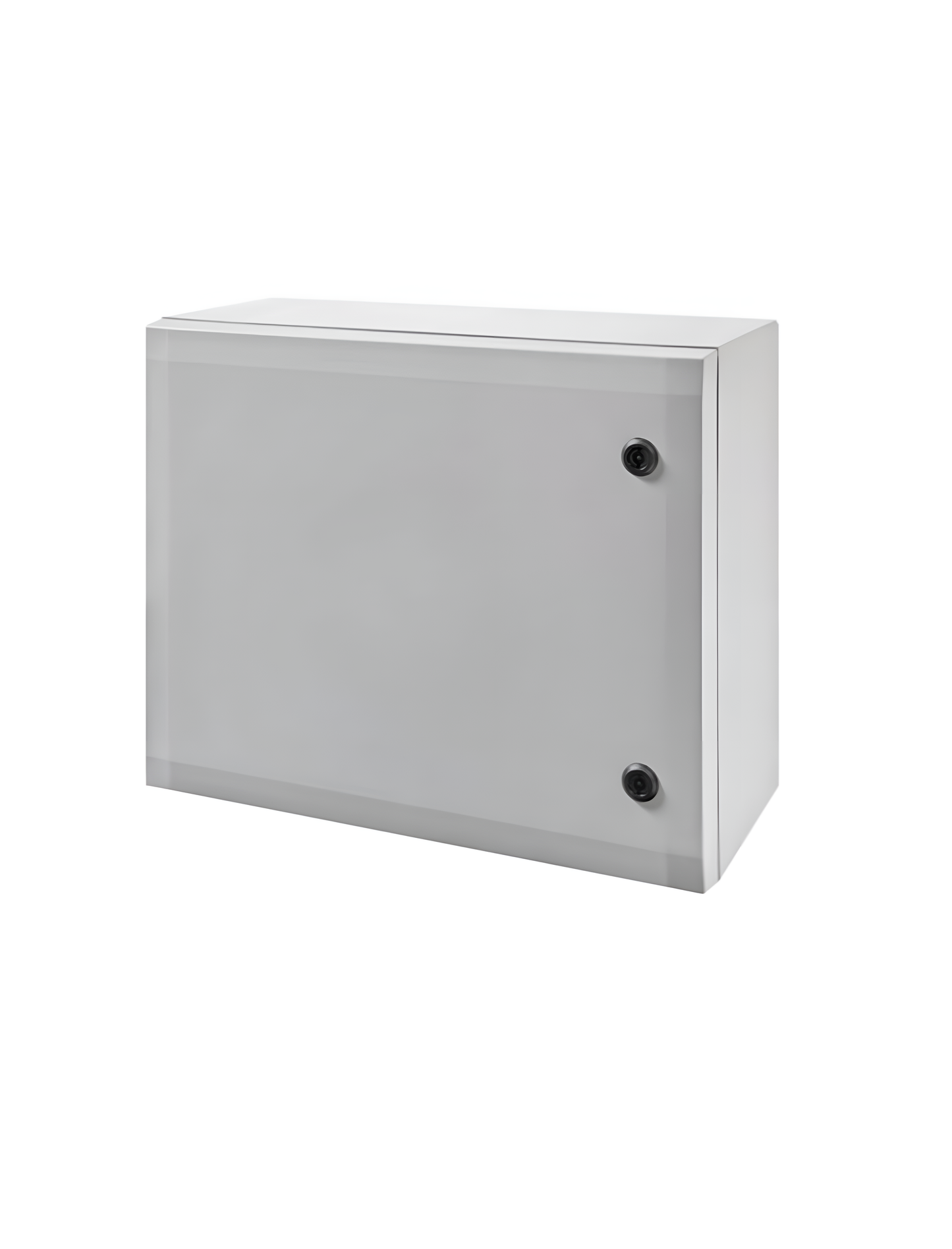

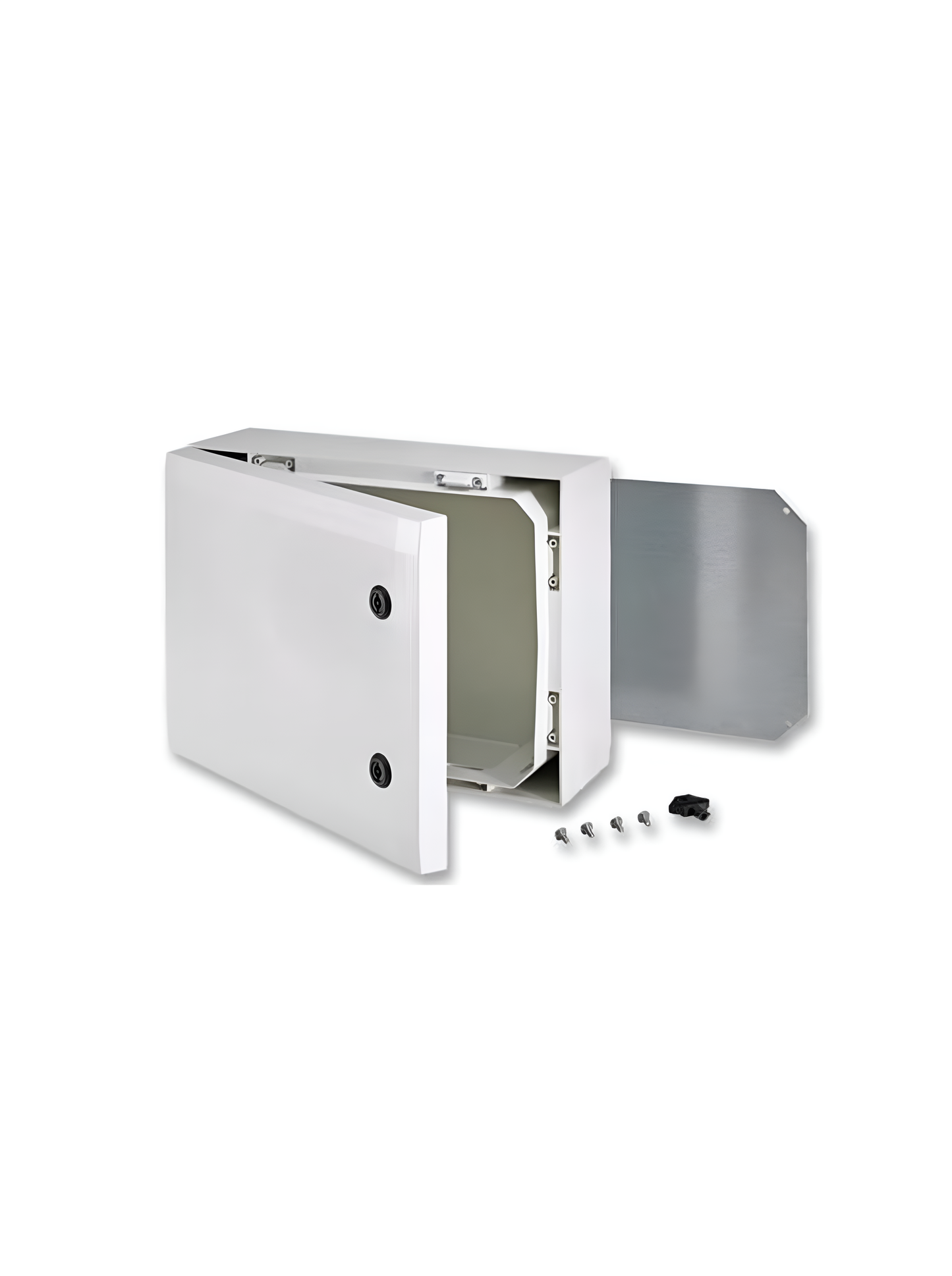

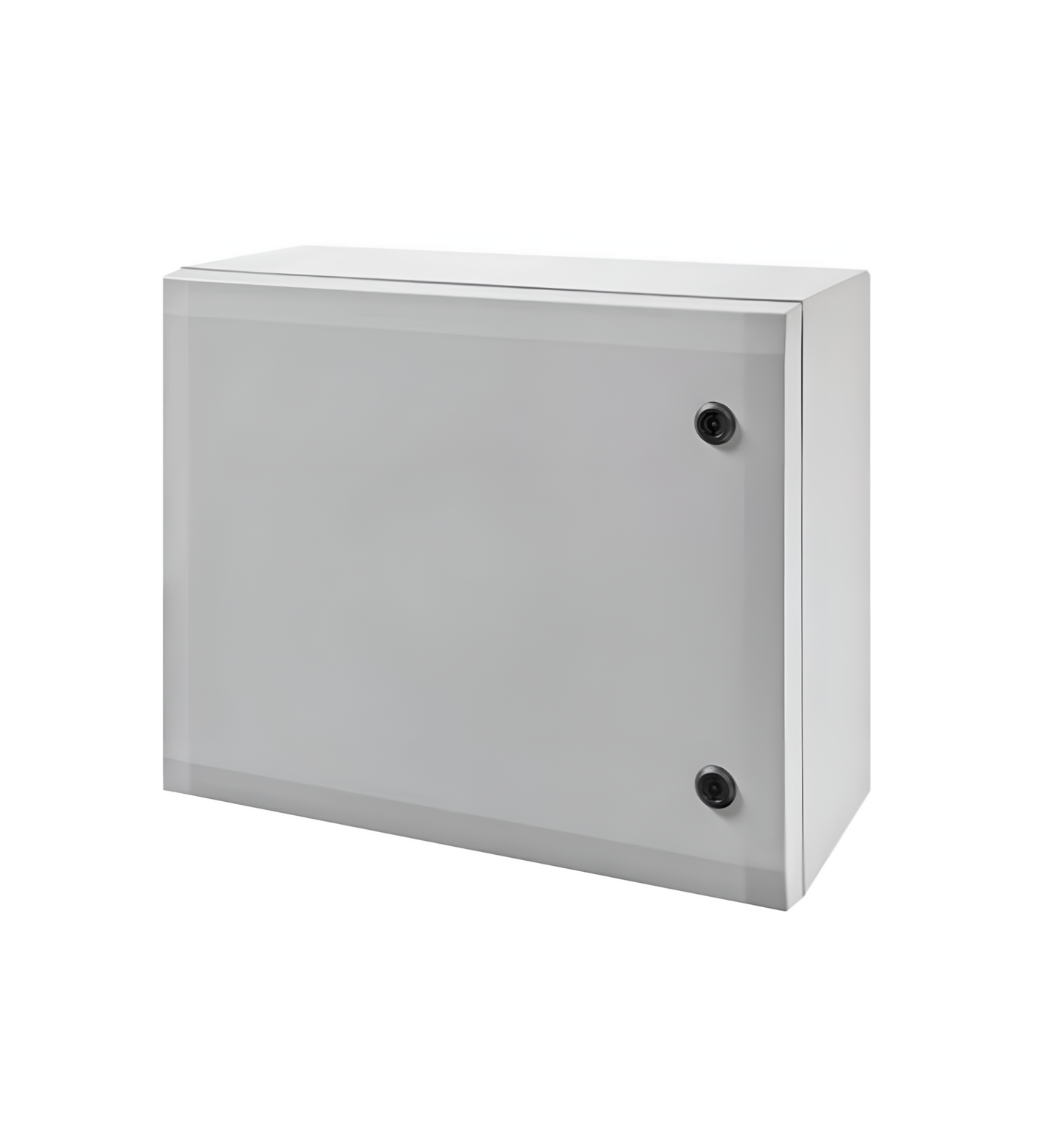

The ARCA 405021 (8120009) is a high-performance polycarbonate cabinet from the ARCA IEC (ARCN) series, designed for secure control and measurement applications in electrical installations. This durable enclosure features a grey PC base and door, reinforced with a PUR gasket for superior weather resistance, and includes a mounting plate with screws for easy component installation.
Key Features:
| Model | ARCA 405021 |
| Manufacturer Part No | 8120009 |
| Brand | Fibox |
| External Height | 400 mm |
| External Width | 500 mm |
| External Depth | 210 mm |
| Material | Polycarbonate (PC) |
| IP Rating | IP66 |
| IK Rating | IK10 (20 joule impact resistance) |
| Colour | RAL7035 (light grey) |
| NEMA Rating | 1, 4, 4X, 12, 13 |
| Flame Rating | UL 94 5VA |
| UV Resistant | Yes (UL 746C) |
| Operating Temperature | -40°C to +80°C |
| Mounting Plate | Included (with screws) |
| Lock Type | 3mm double-bit lock with key |
| Weight | 4800g |
| EAN | 6418074314628 |
Key Benefits:
- Durable & Weatherproof: IP66 and IK10 rated – dust-tight, waterproof, and impact-resistant for harsh environments.
- Corrosion-Free
- Ready to Install: Mounting plate and screws are included – no need to buy separately.
- Secure Locking: 3mm double-bit lock with key keeps your components safe.
Ideal for industrial environments requiring secure, weatherproof, and impact-resistant enclosures, the ARCA 405021 ensures long-term reliability in demanding conditions.

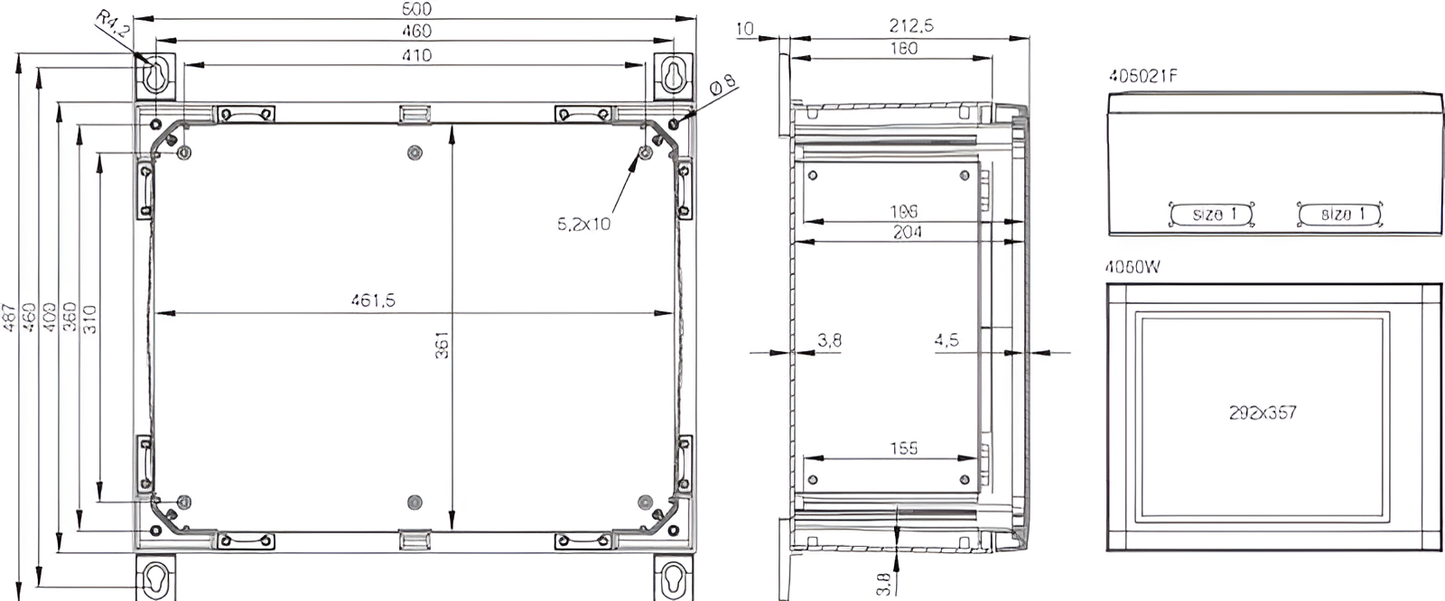

See dimensional drawing here
See full data sheet here
