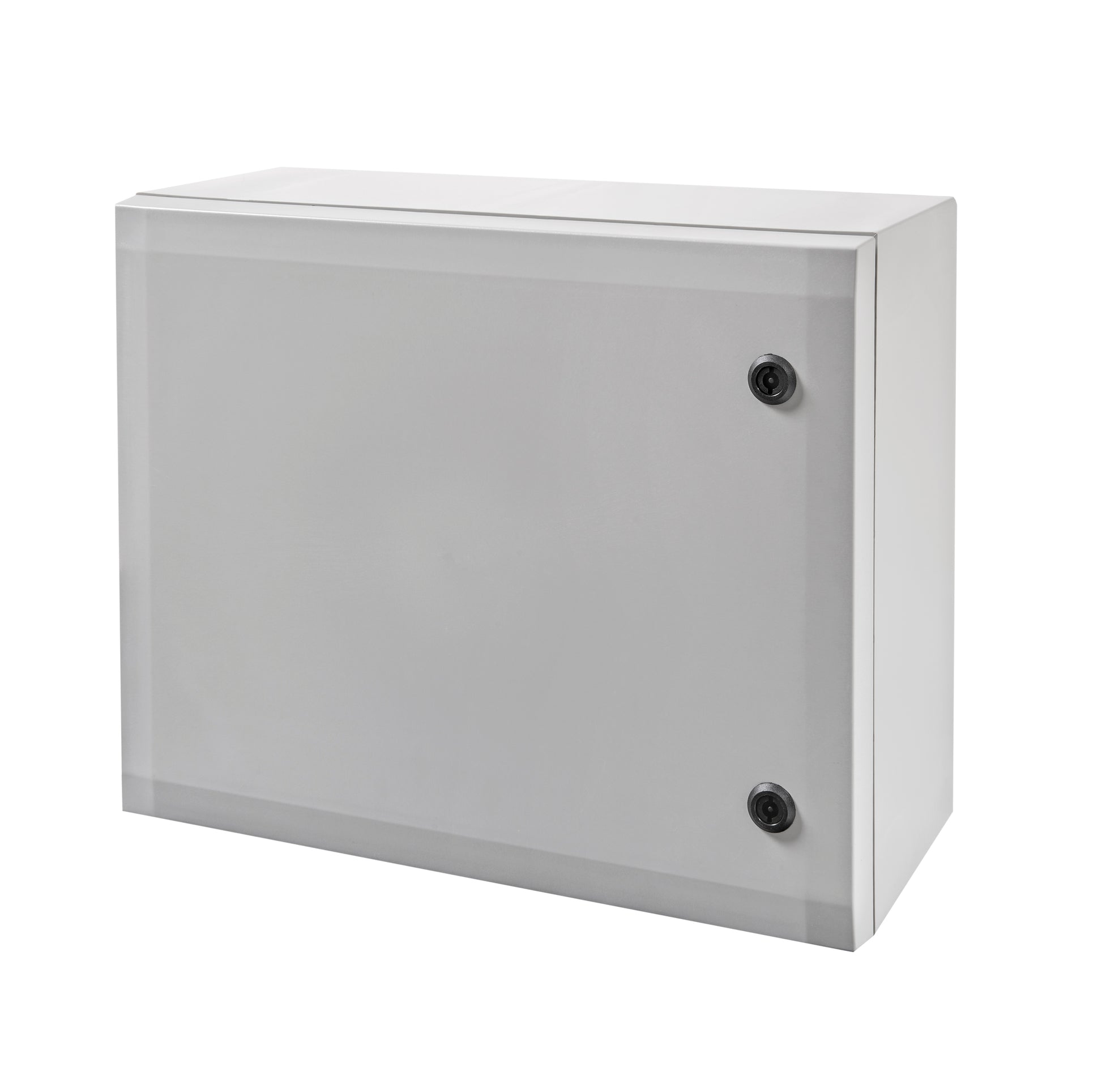

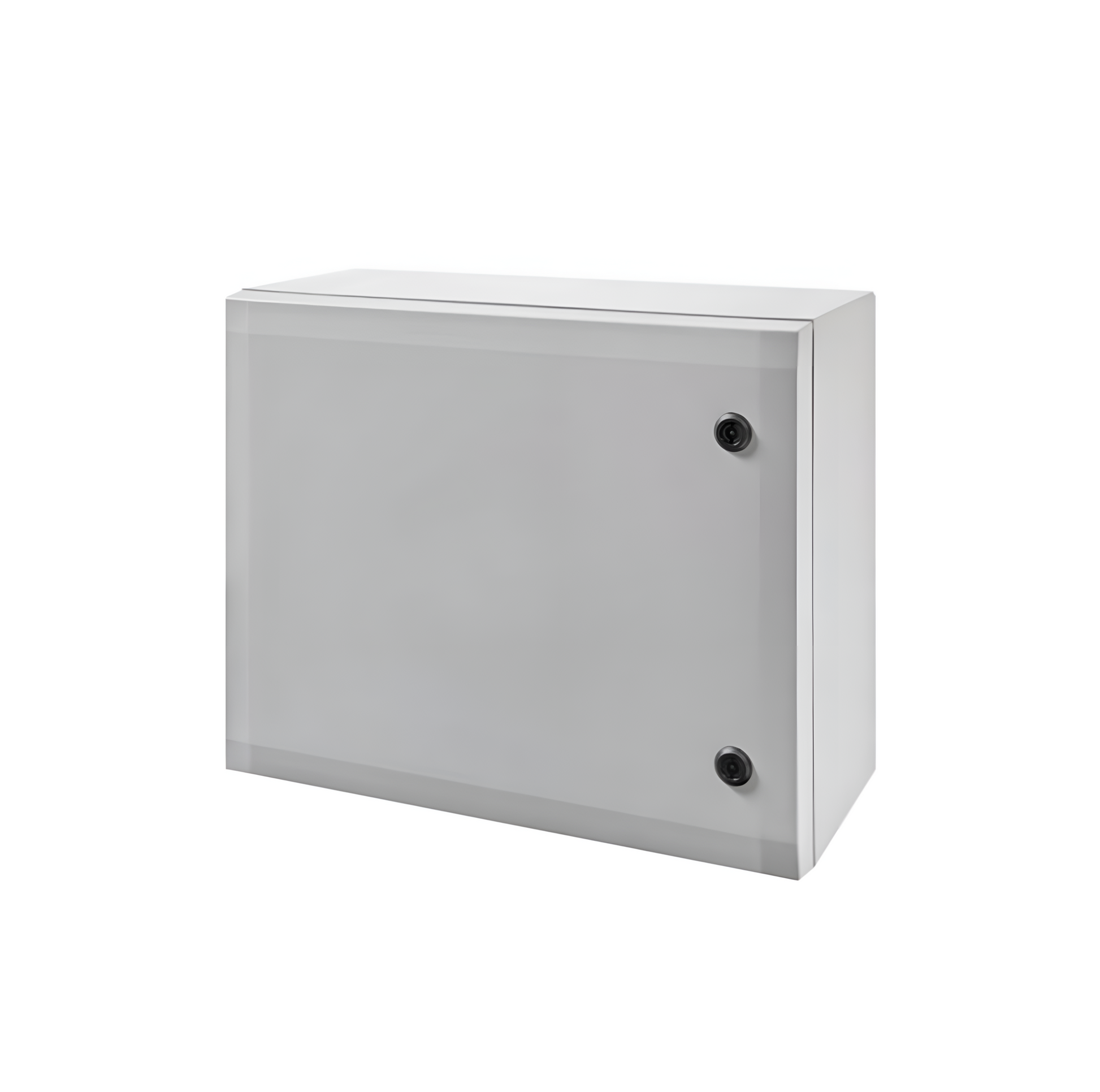

ARCA IEC Wall-Mounted Enclosure (406021)

The ARCA 406021 is a high-performance enclosure from the ARCA IEC series (ARCN), designed for control and measurement applications in electrical installations. This wall-mounted cabinet features a durable polycarbonate (PC) grey cover, a 2-point locking system, and hinges on the short side for secure and easy access.

Key Specifications:

• Dimensions: 400mm (H) × 600mm (W) × 210mm (D)
• Weight: 8400g
• Material: Halogen-free, UV-resistant polycarbonate
• Protection Ratings: - IP66 (Dust-tight & protected against powerful water jets), - IK10 (Highest impact resistance)
• Flammability Rating: UL 94 5VA (Excellent flame resistance)
• Environmental Resistance: - UV Resistant: Yes, ATEX Certified: No
• UL Code : UL508A
• Installation: Supports vertical mounting
• Applications: - Control & Measurement: Yes, - Electrical Installations: Yes, -Terminal Enclosures: No, - Power Distribution Boards: No, - Electronic Devices: No

Ideal for demanding industrial and commercial environments, the ARCA 406021 ensures superior durability, weather resistance, and security for electrical components.

See dimensional drawing here

See full data sheet here
