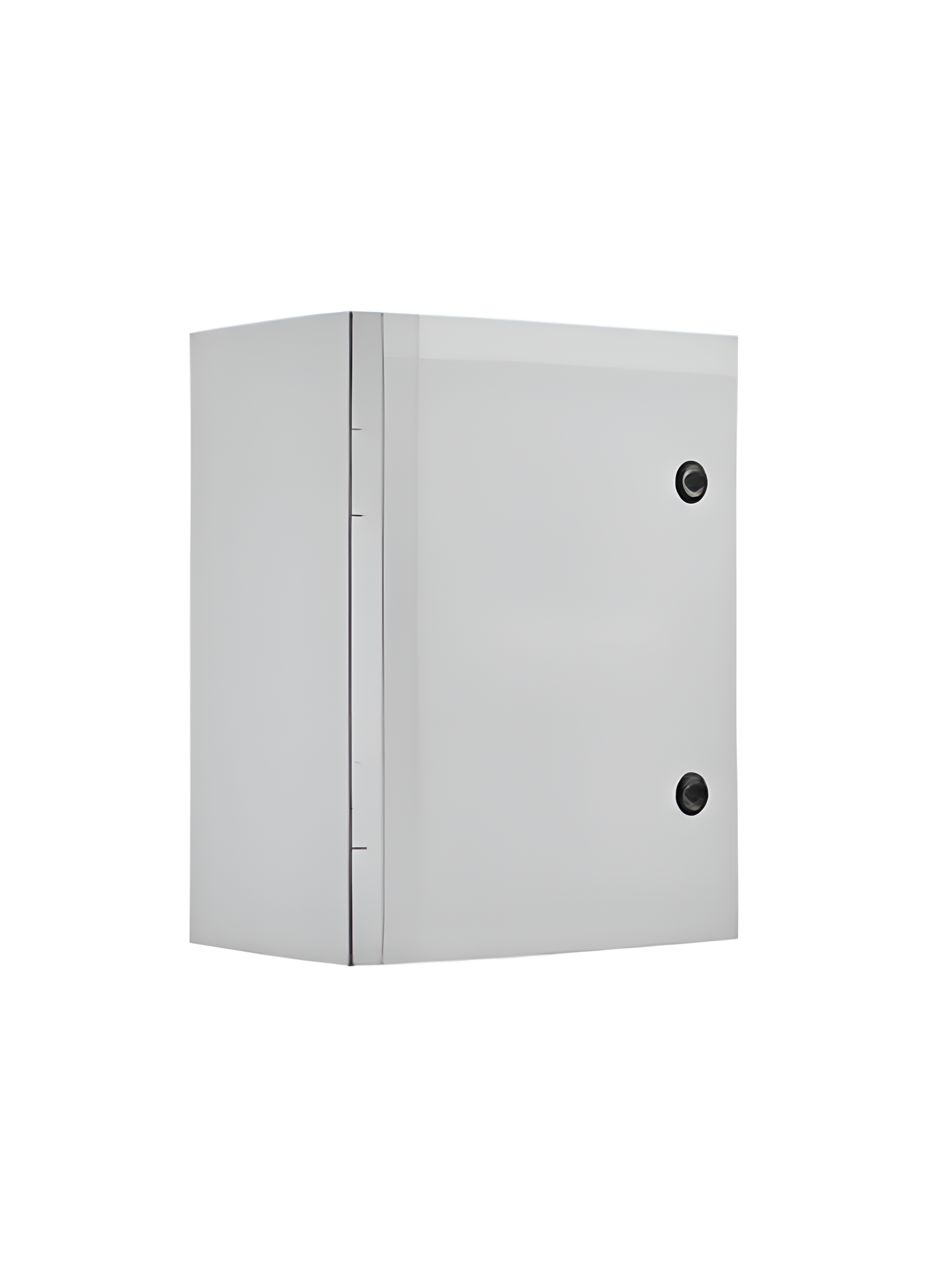

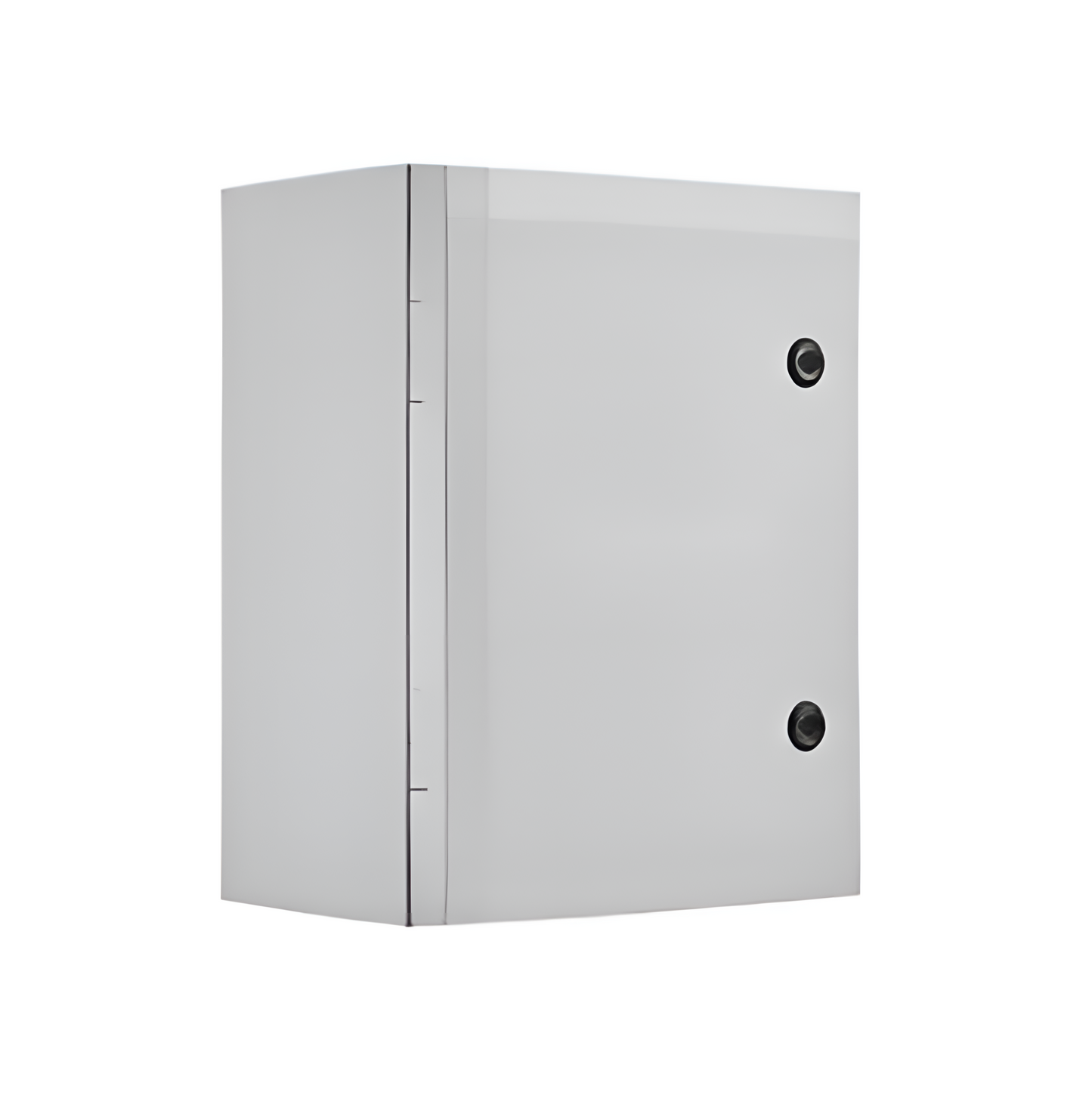

ARCA IEC Wall-Mounted Cabinet (505021)

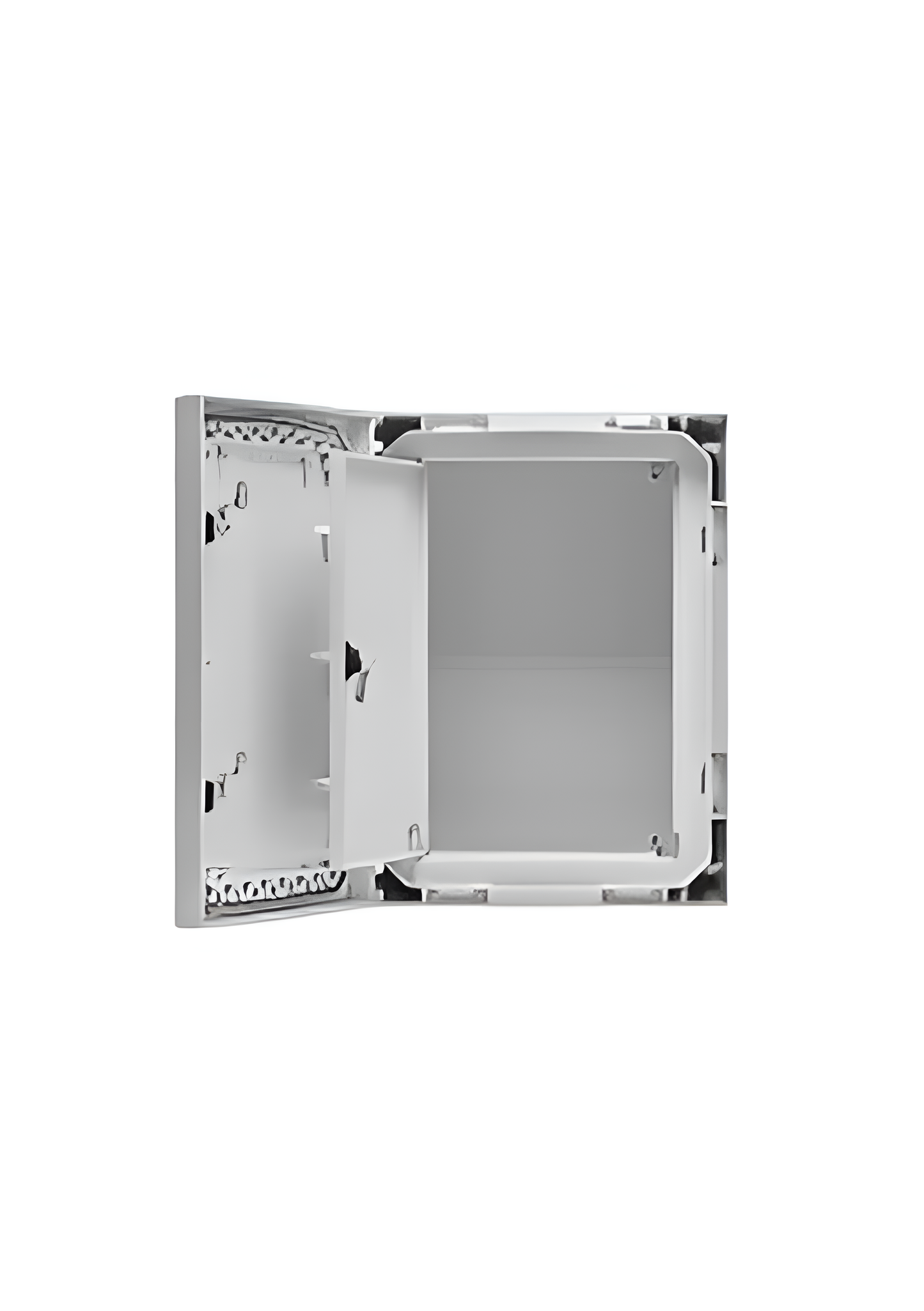

The ARCA 505021 (8120032) is a high-performance polycarbonate enclosure from the ARCA IEC (ARCN) series, designed for secure control and measurement applications in electrical installations. This robust cabinet features a PC base, a door with a PUR gasket for enhanced sealing, and a mounting plate with included screws for easy component assembly.

Key Features:

Secure Locking System:

• 3mm double-bit lock with key (standard)
• Optional S-versions available with a swing-handle 2-point locking system
• Door guide ensures smooth operation

Durable Construction:

• UV-resistant, halogen-free polycarbonate
• Flame-retardant (UL 94 5VA)
• High-impact protection (IK10)
• IP66-rated (dustproof & waterproof)

Installation & Mounting:

• Vertical mounting supported
• Hinges on the long side for easy access
• Grey cover for a professional appearance

Dimensions & Weight:

• 500mm (H) × 500mm (W) × 210mm (D)
• Weight: 5400g

Certifications & Compliance:

• UL 508A certified
• ATEX: No
• UV Resistant: Yes

Applications:

✔ Control & Measurement
✔ Electrical Installations
✖ Terminal Enclosures
✖ Power Distribution Boards
✖ Electronic Devices

Ideal for industrial environments requiring secure, weatherproof, and impact-resistant enclosures, the ARCA 505021 (8120032) ensures long-term durability and protection for critical electrical components.

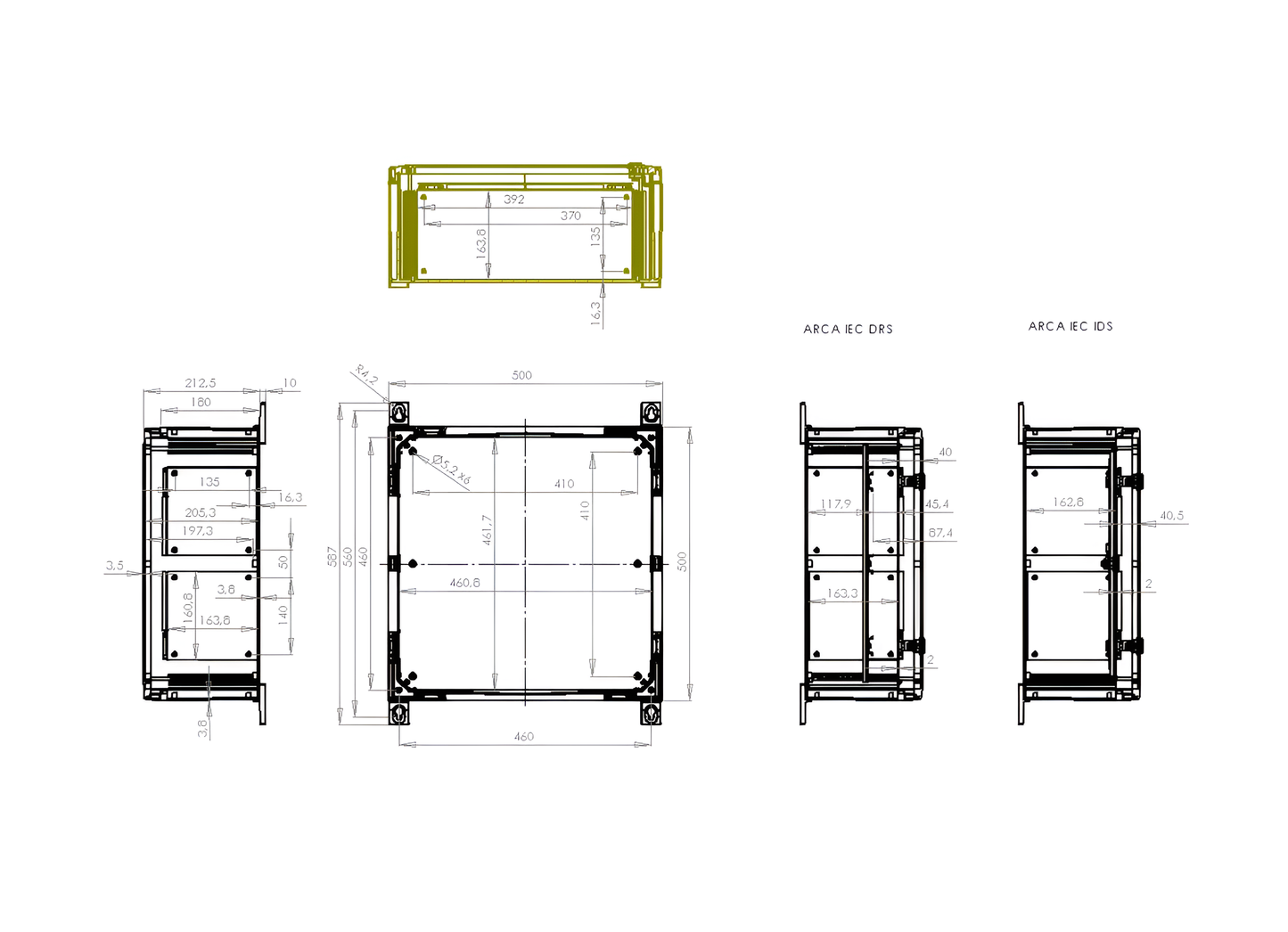

See dimensional drawing here

See full data sheet here
