ARCA IEC Wall-Mounted Enclosure (507030)

Product Number: 8120031

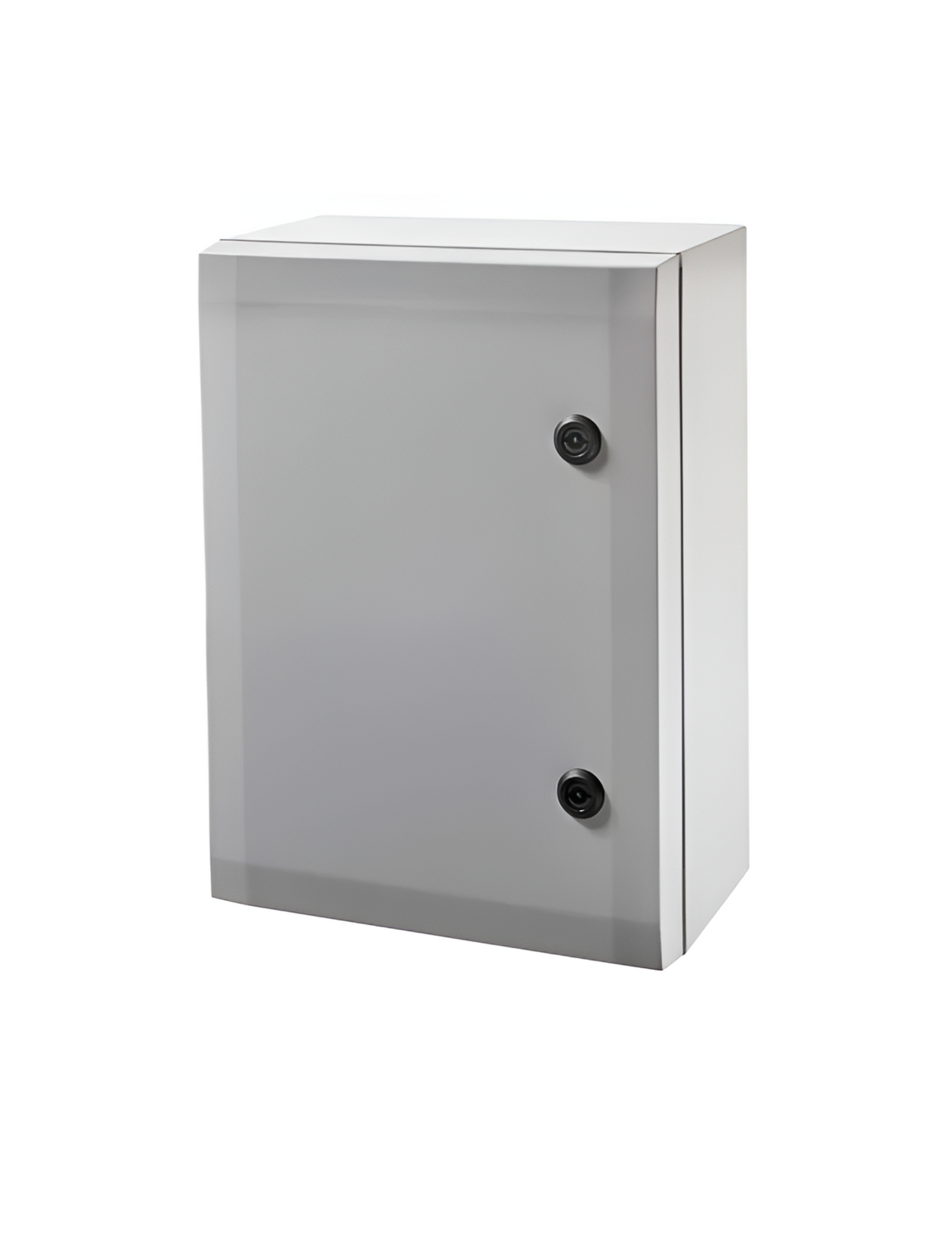

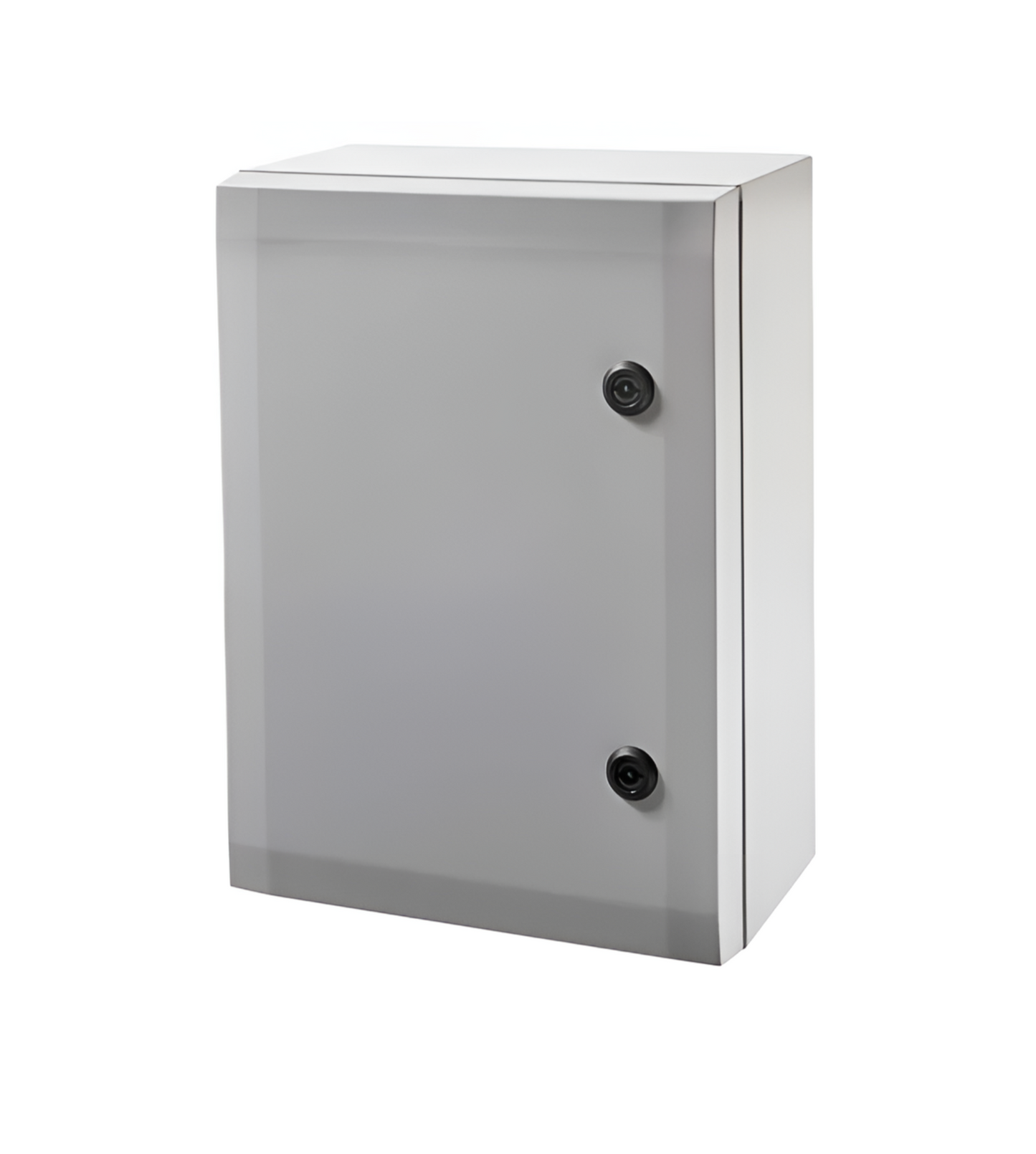

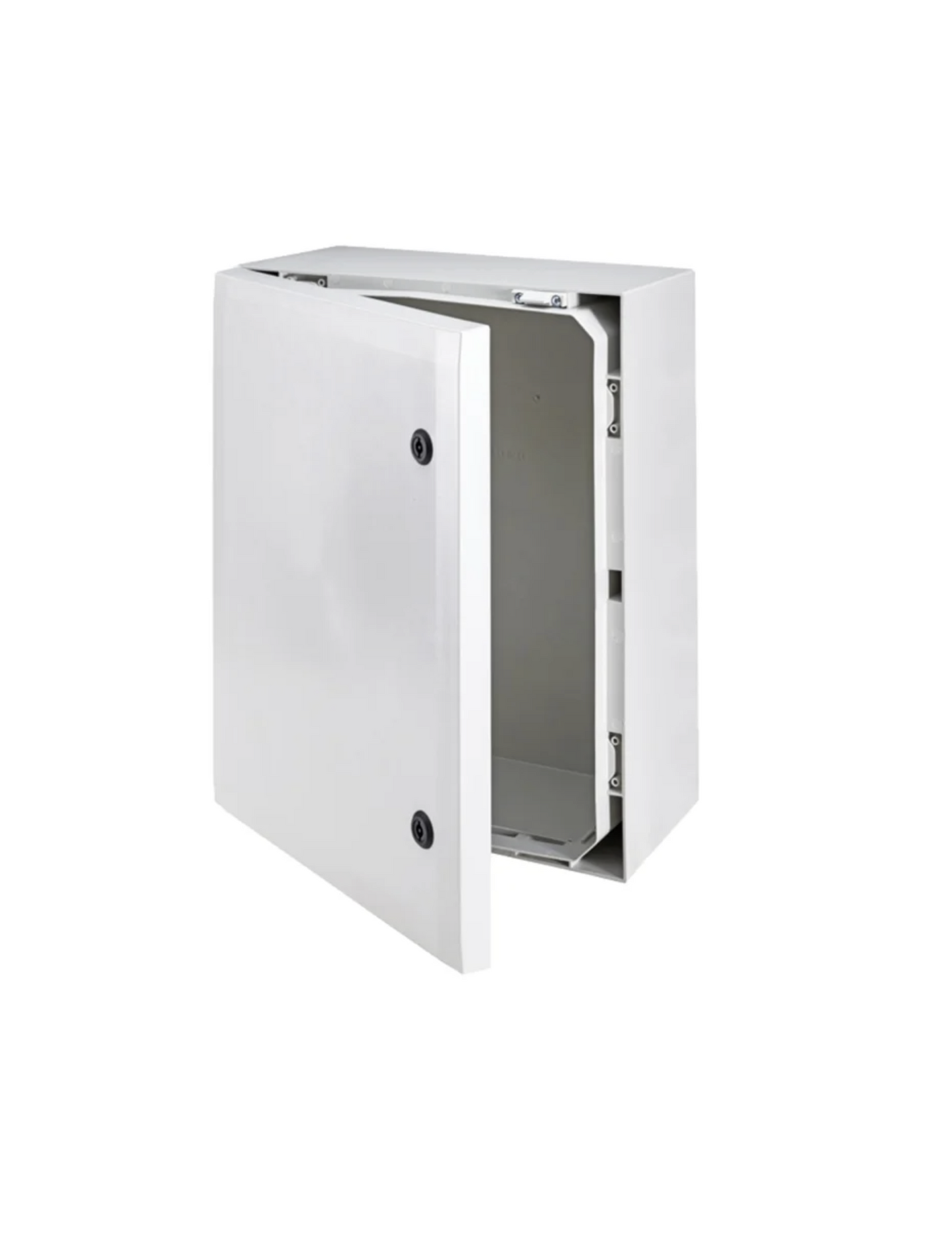

The ARCA 507030 (8120031) is a high-performance polycarbonate enclosure from the ARCA IEC series (ARCN), designed for control and measurement applications in electrical installations. This wall-mounted cabinet features a durable PC grey cover, a 2-point locking system, and hinges on the short side for secure and easy access.

Key Specifications:

• Dimensions: 500mm (H) × 700mm (W) × 300mm (D)
• Weight: 14,400g
• Material: Halogen-free, UV-resistant polycarbonate
• Protection Ratings: - IP66 (Dustproof & waterproof), -  IK10 (High impact resistance)
• Flammability Rating: UL 94 5VA (High flame resistance)
• Certifications & Compliance: - ATEX: No, - UV Resistant: Yes
• UL Code : UL508A
• Installation: Vertical mounting supported
• Applications: - Control & Measurement: Yes, - Terminal Enclosures: No, - Power Distribution Boards: No, - Electrical Installations: Yes, - Electronic Devices: No

Ideal for demanding industrial environments, the ARCA 507030 ensures superior durability and protection in harsh conditions.

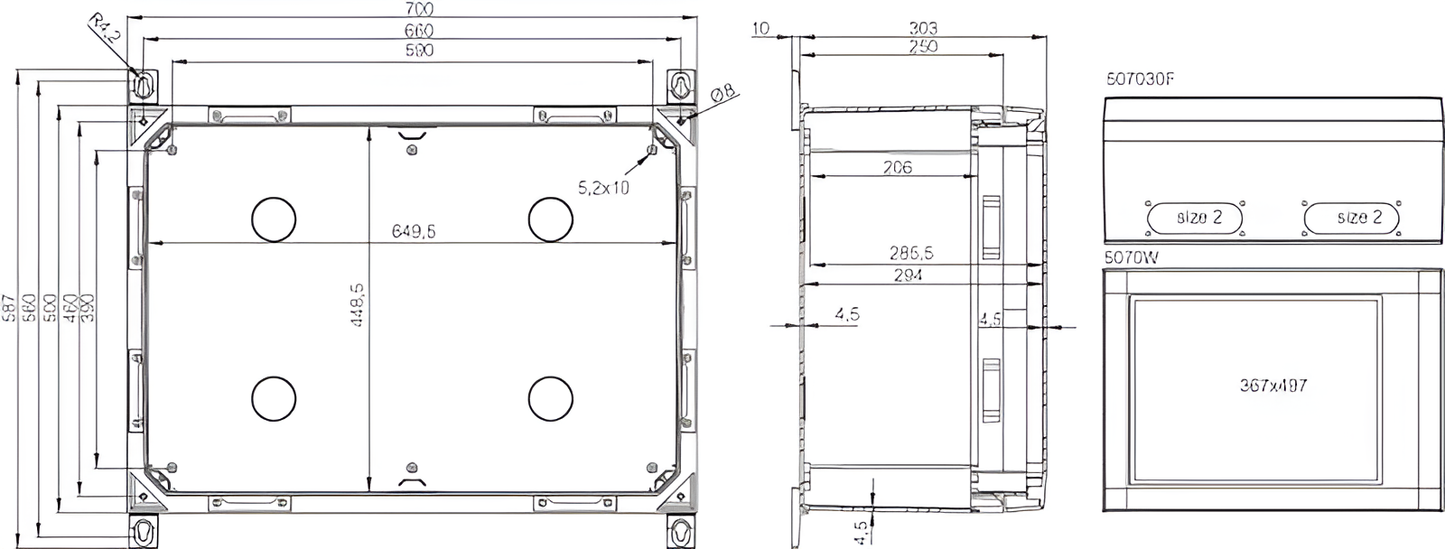

See dimensional drawing here

See full data sheet here
