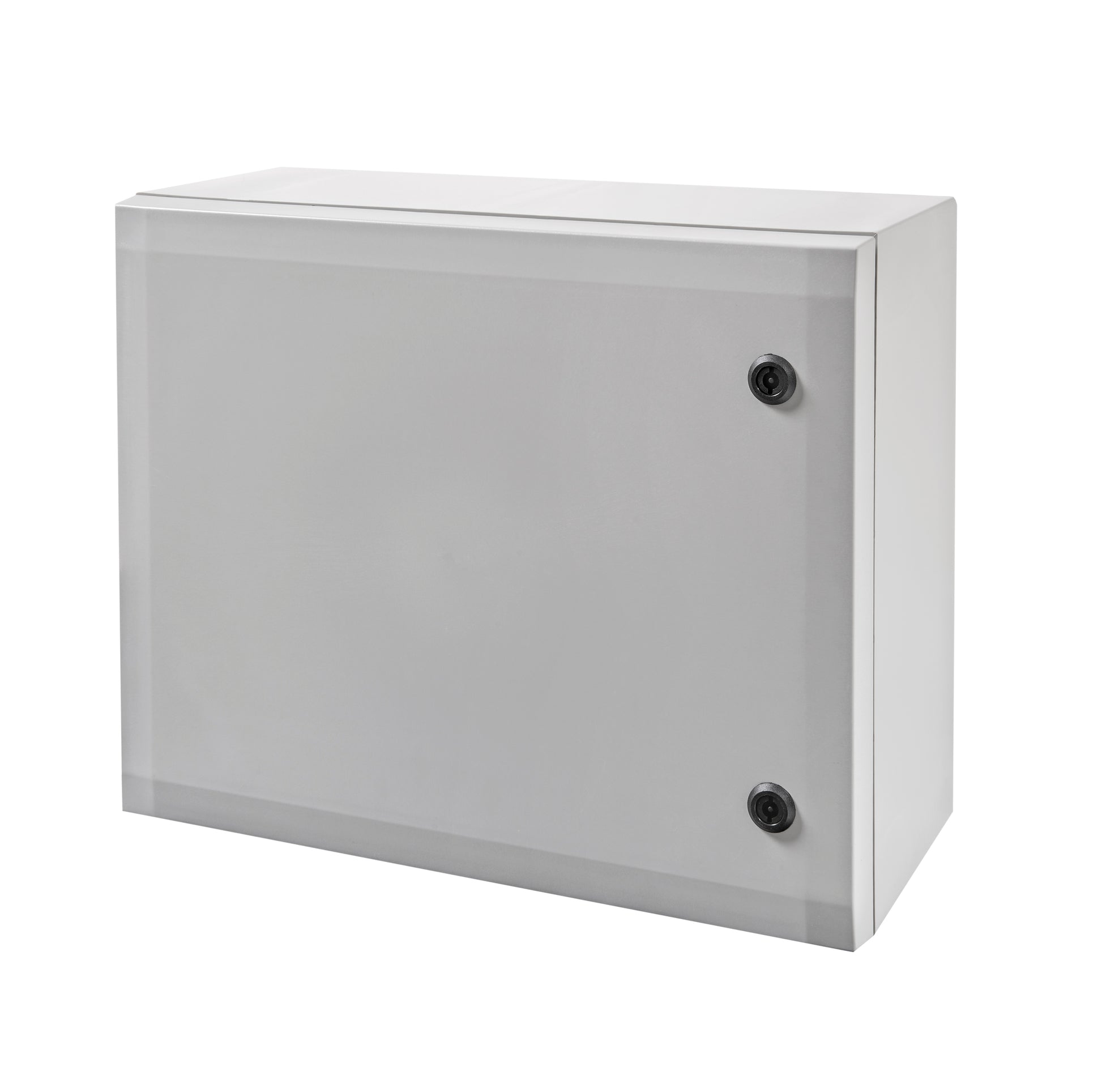

ARCA IEC Wall-Mounted Enclosure (608030)

Part of the ARCA IEC (ARCN) series, the ARCA 608030 (8120029) is a high-performance wall-mounted cabinet designed for control and measurement applications in demanding electrical installations. Constructed from UV-resistant, halogen-free polycarbonate, this enclosure ensures durability, superior protection, and long-term reliability in harsh environments.

Key Features & Specifications:

Robust Construction:

• Material: High-strength polycarbonate
• Protection Ratings: IP66 (dust-tight & waterproof) & IK10 (impact-resistant)
• Flame Resistance: UL 94 5VA certified for enhanced safety
• UV Resistant: Yes (ideal for outdoor use)
• ATEX Certified: No
• UL Code : UL508A

Design & Functionality:

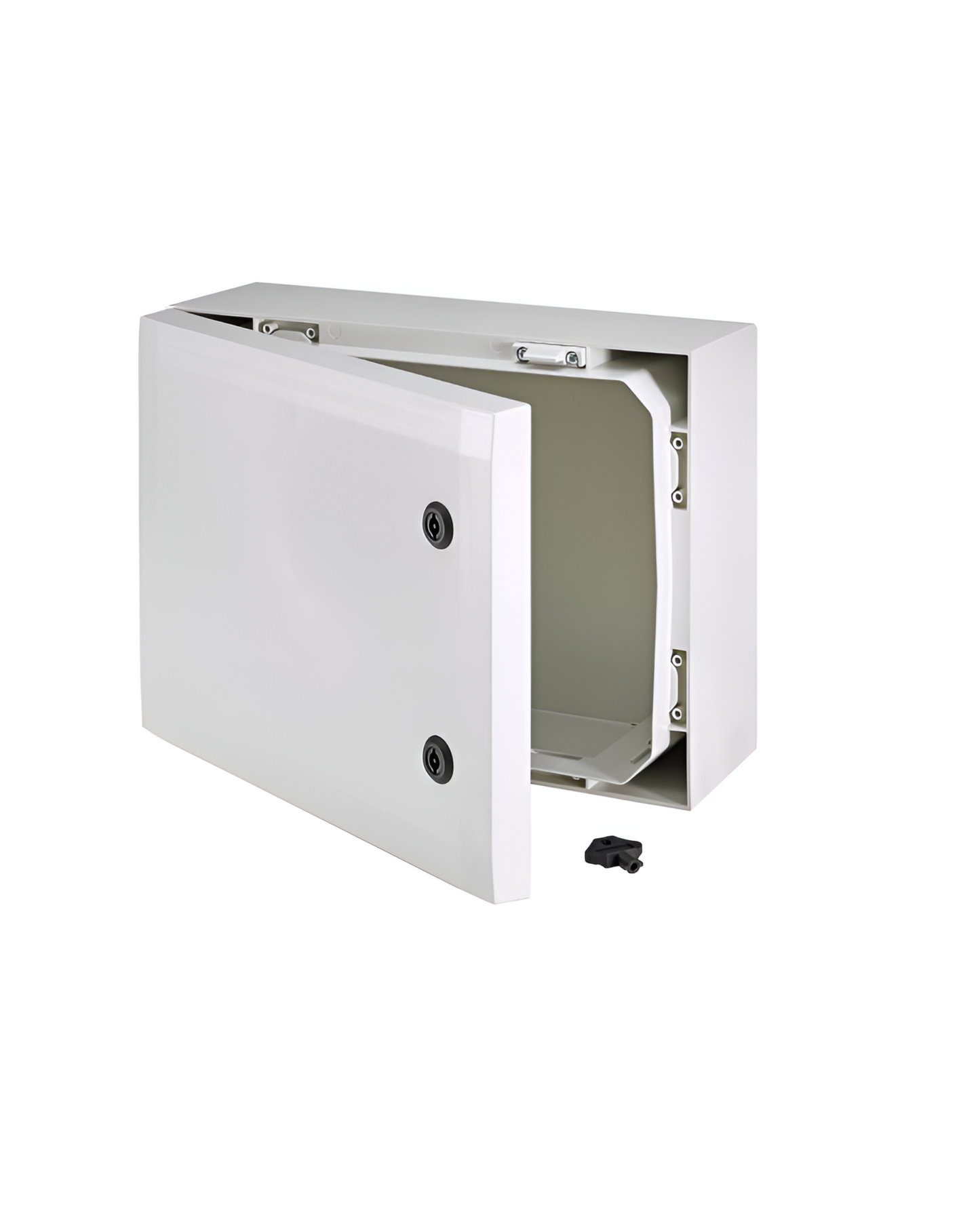

• Grey PC cover with 2-point locking system for secure access
• Hinges on the short side for easy opening
• Vertical mounting supported

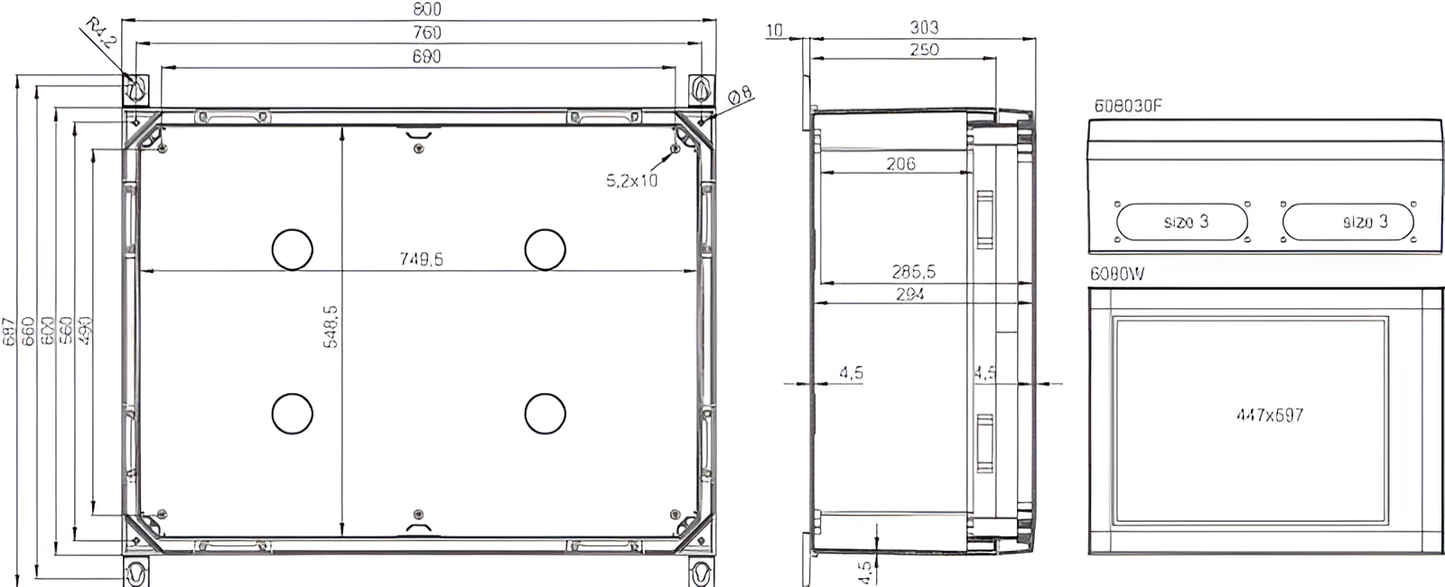

Dimensions & Weight:

• 600mm (H) × 800mm (W) × 300mm (D)
• Weight: 18,850g

Applications:

• Electrical Installations: Yes
• Control & Measurement Systems: Yes
• Terminal Enclosures / Power Distribution / Electronic Devices: No

Ideal for industrial and infrastructure applications requiring a rugged, high-protection enclosure, the ARCA 608030 (8120029) combines strength, security, and environmental resistance for reliable performance.

See full data sheet here
