ARCA IEC – Wall-Mounted Enclosure (705030)

Product Number: 8120017

The ARCA 705030 (8120017) is part of the ARCA IEC series (ARCN) and is designed as a heavy-duty polycarbonate enclosure for control and measurement applications in electrical installations. This wall-mounted cabinet features a PC grey cover, a 2-point locking system, and hinges on the long side for secure and easy access.

Key Specifications:

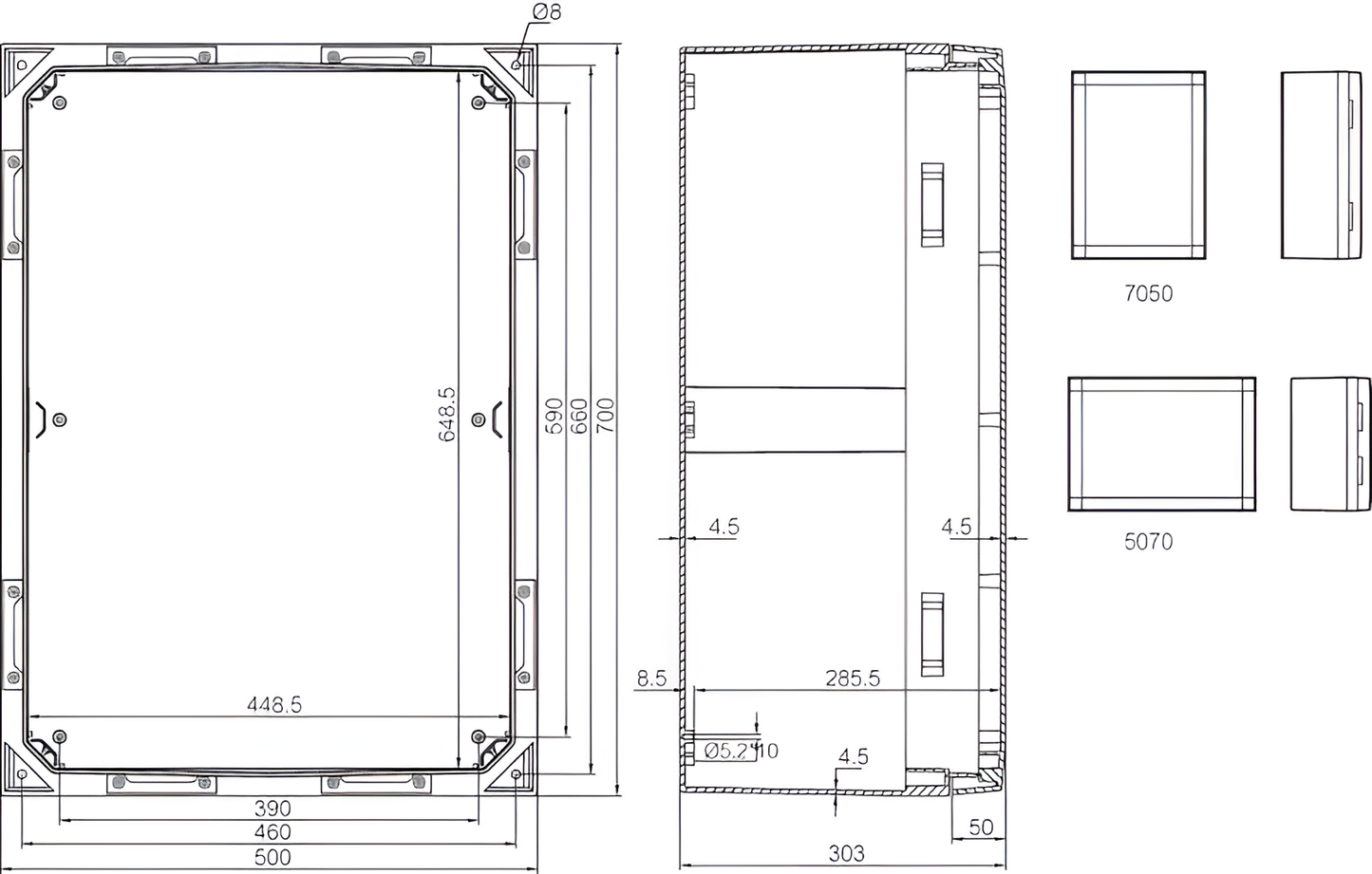

• Dimensions: 700mm (H) × 500mm (W) × 300mm (D)
• Weight: 14,400g
• Material: Halogen-free, UV-resistant polycarbonate
• Protection Ratings: - IP66 (Dustproof & waterproof), - IK10 (High impact resistance)
• Flammability Rating: UL 94 5VA (High flame resistance)
• Certifications & Compliance: - ATEX: No, - UV Resistant: Yes, - UL Code : UL508A
• Installation: Supports vertical mounting
• Applications: - Control & Measurement: Yes, - Terminal Enclosures: No, - Power Distribution Boards: No, - Electrical Installations: Yes, - Electronic Devices: No

Ideal for industrial and commercial environments requiring durable, high-protection enclosures, the ARCA 705030 ensures long-term reliability in demanding conditions.

See full data sheet here
