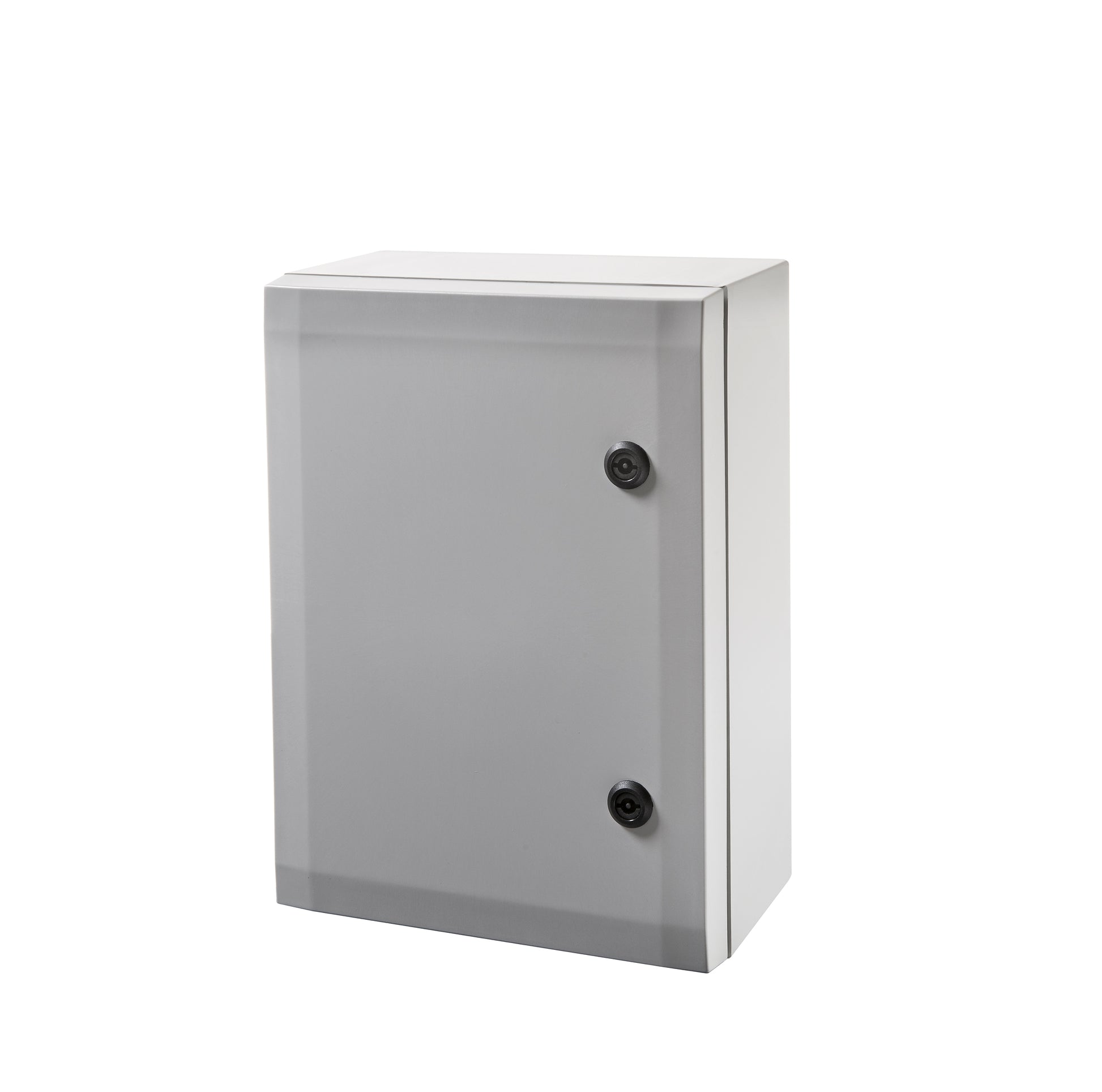

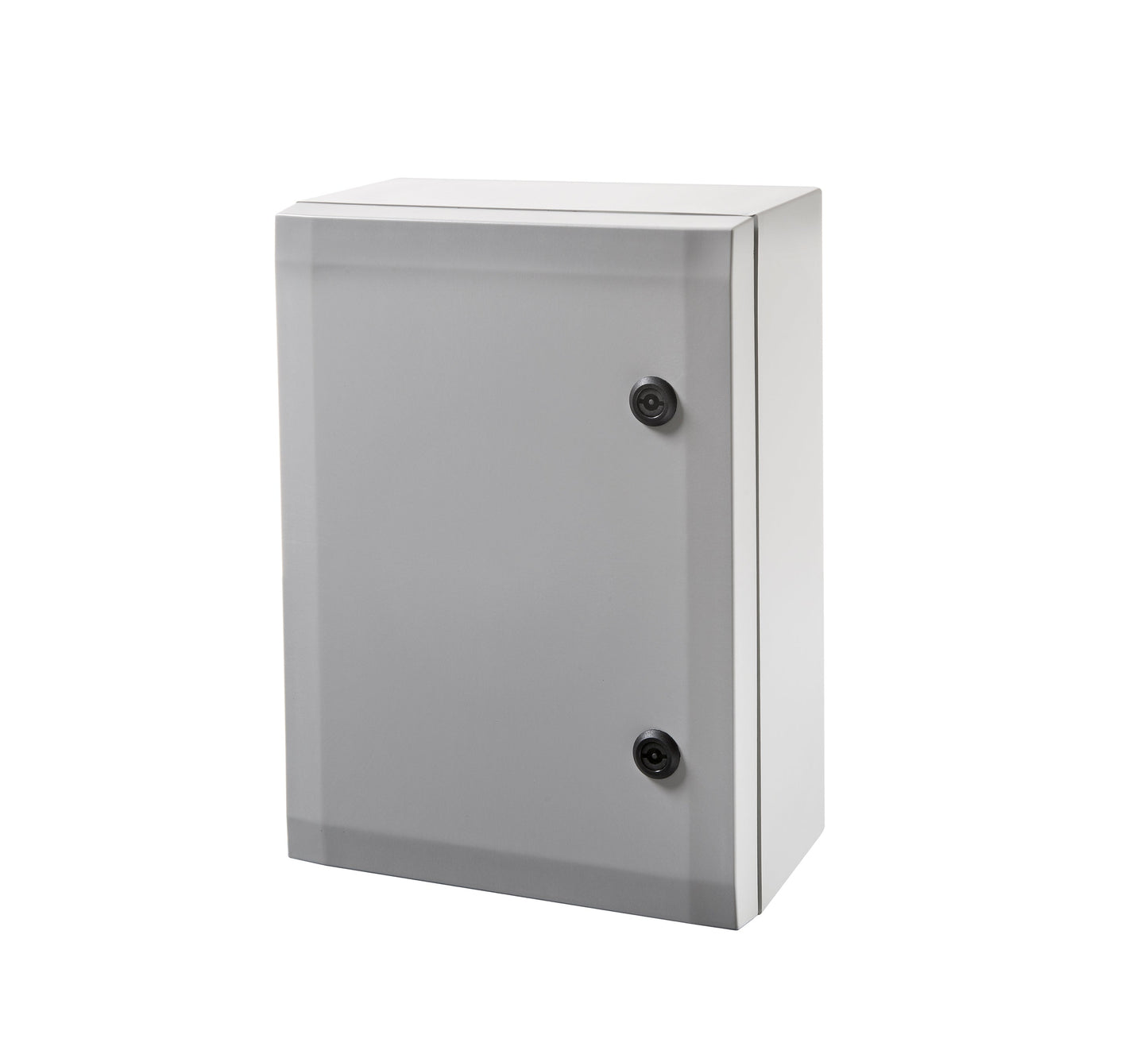

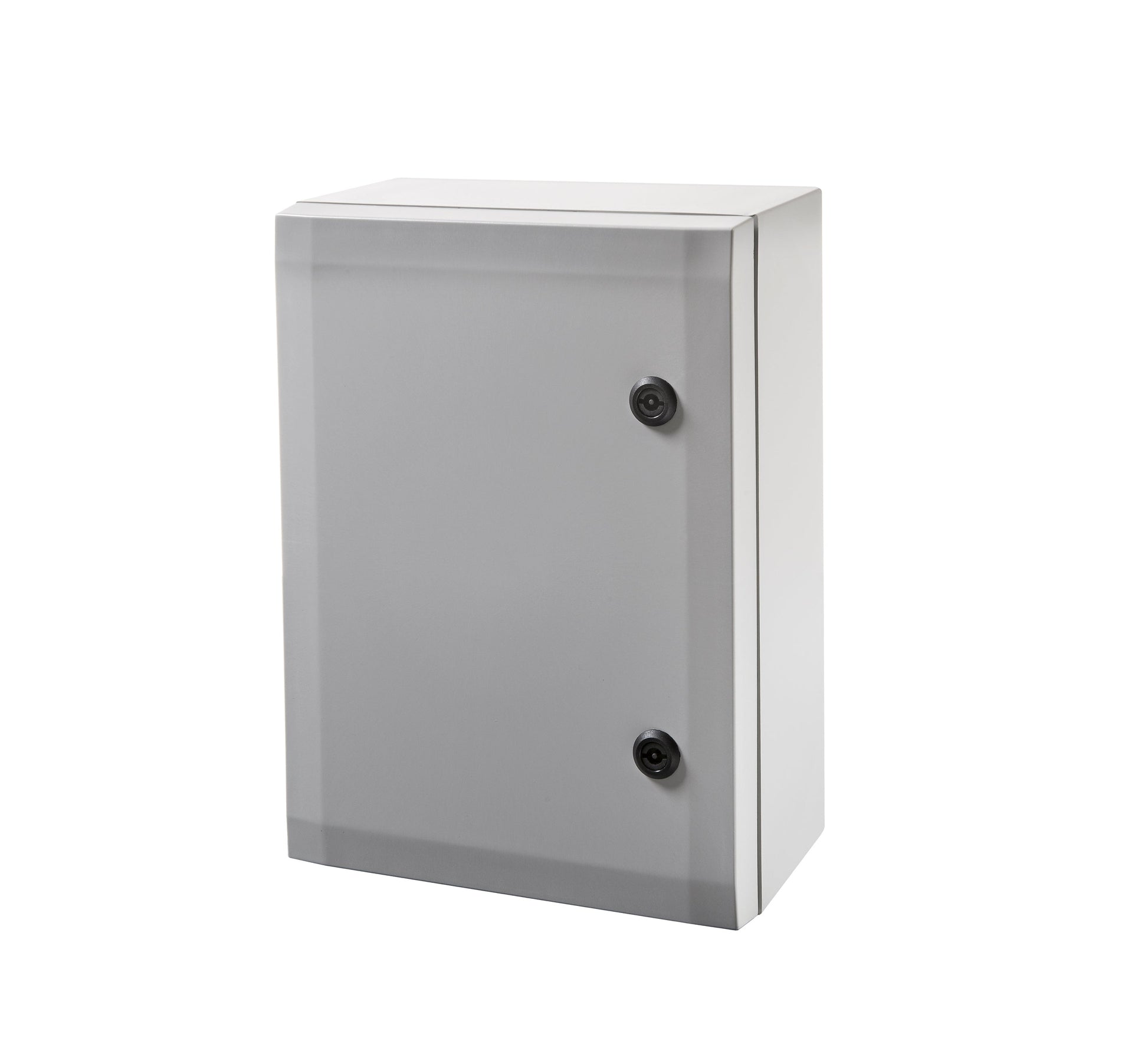

ARCA IEC Wall-Mounted Enclosure Cabinet (806030)

Product Number: 8120019

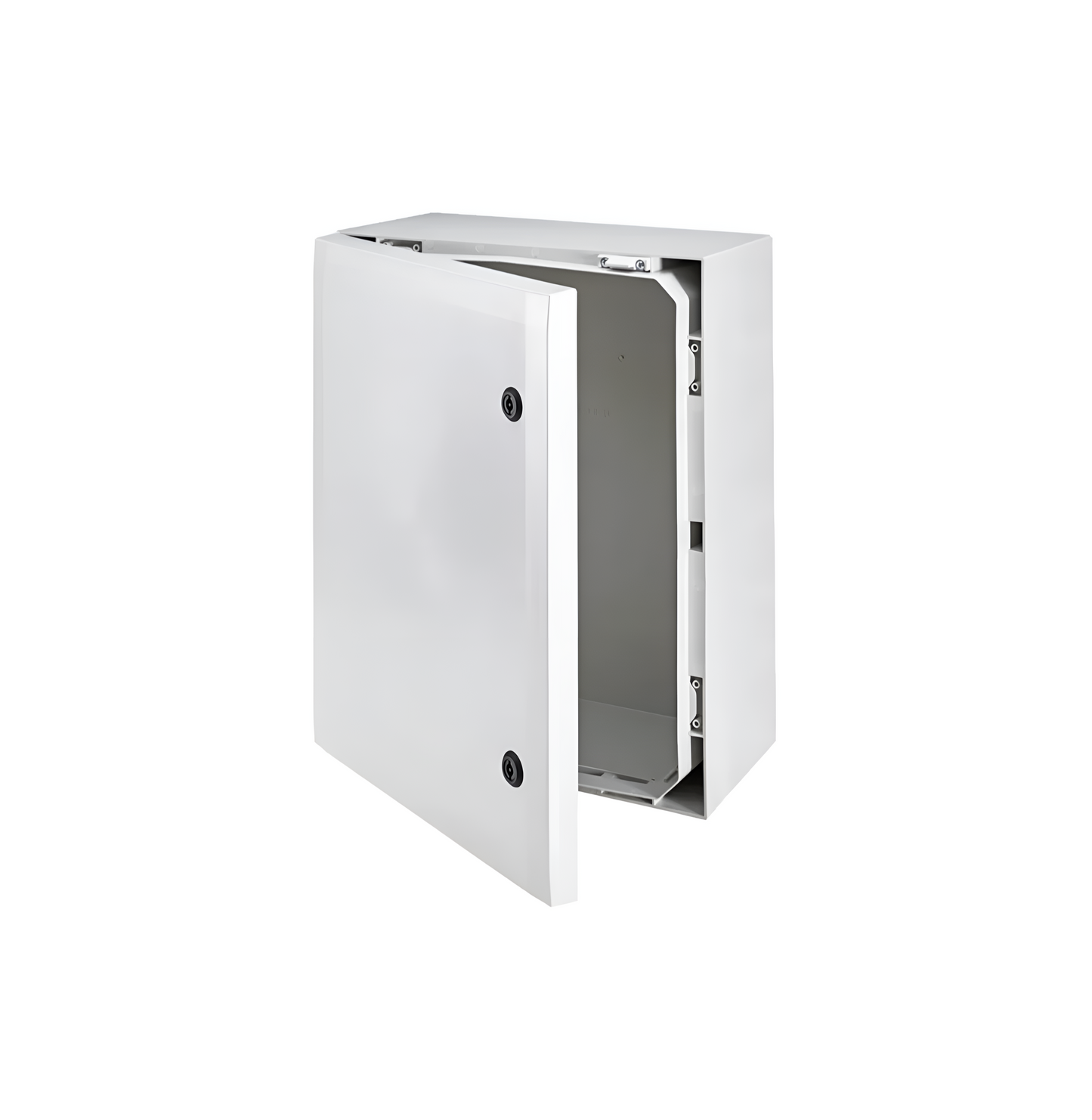

The ARCA 806030 (8120019) is a high-performance polycarbonate enclosure from the ARCA IEC (ARCN) series, designed for secure control and measurement applications in electrical installations. This robust wall-mounted cabinet features a grey PC cover, a 2-point locking system, and hinges on the long side for easy access while maintaining durability.

Key Features & Specifications:

• Dimensions: 800mm (H) × 600mm (W) × 300mm (D)
• Weight: 18,850g (18.85 kg)
• Material: Halogen-free, UV-resistant polycarbonate

Protection Ratings:

• IP66 (Complete dust protection & powerful water jet resistance)
• IK10 (Highest impact resistance)
• UL Code : UL508A
• Safety & Compliance:
• Flammability Rating: UL 94 5VA (Superior flame resistance)
• UV Resistant: Yes (Suitable for outdoor use)
• ATEX Certified: No
• Installation: Supports vertical mounting

Applications:

• Control & Measurement: Yes
• Electrical Installations: Yes
• Terminal Enclosures / Power Distribution / Electronic Devices: No

Engineered for demanding industrial environments, the ARCA 806030 (8120019) ensures long-lasting protection against harsh conditions while providing secure housing for electrical components.

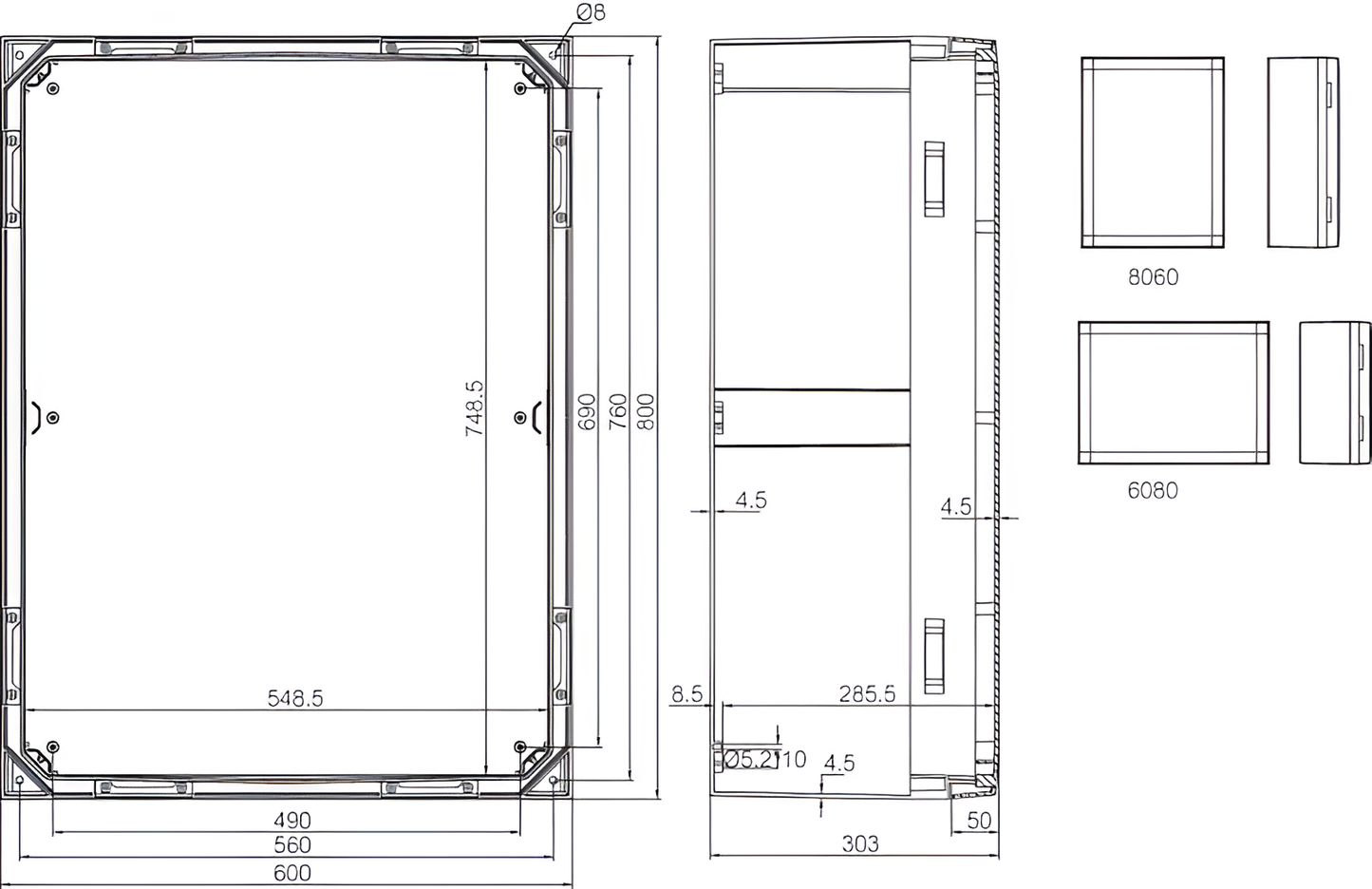

See dimensional drawing here

See full data sheet here
