ARCA 604021 Fibox IEC Enclosure | 600x400x210mm IP66 IK10

ARCA 604021 | Fibox 600x400x210mm Polycarbonate Wall-Mounted Enclosure – IP66, IK10, UV-Resistant

Product Number: 604021

ARCA 604021 Fibox is a high-performance wall-mounted enclosure from the trusted ARCA IEC series (ARCN), specifically engineered for control and measurement applications in harsh industrial electrical installations. The 600x400x210 enclosure is a durable, halogen-free polycarbonate construction combining excellent mechanical strength with lightweight handling. Featuring:

• IP66 Ingress Protection: Completely dust-tight and water-proof. Suitable for outdoor installations, washdown areas, food processing plants, and coastal locations.
• IK10 Impact Resistance: The highest impact rating available, protecting sensitive internal components against mechanical shock and vandalism.
• UV-Resistant Polycarbonate: Will not become brittle or discolour with prolonged sun exposure – ideal for outdoor and marine installations.
• UL 94 5VA Flammability Rating: The highest flame resistance rating for thermoplastic materials, meeting strict safety requirements.

Designed for secure, accessible installation:

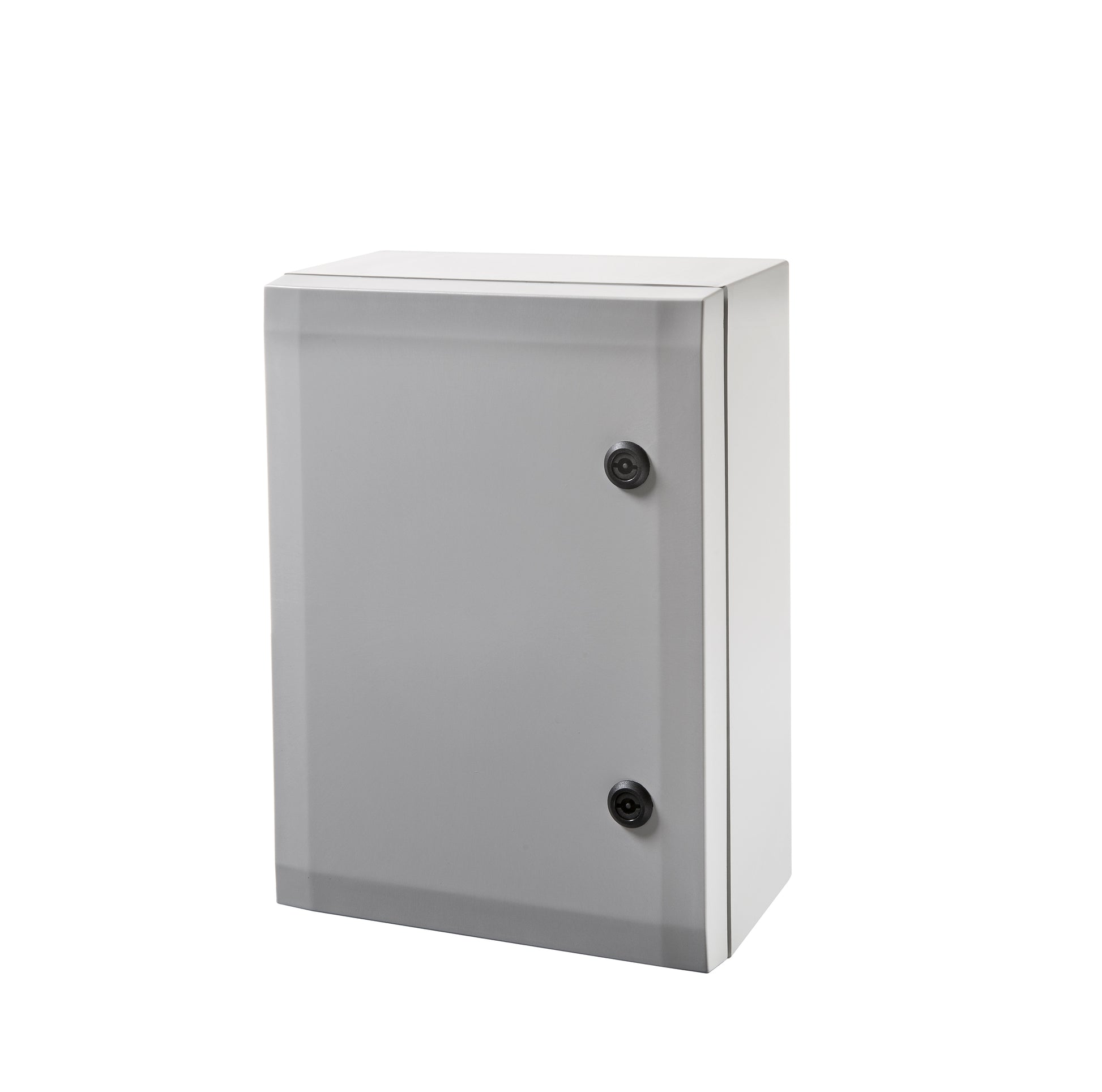

ARCA 604021 features a grey polycarbonate cover with a 2-point locking system for secure closure. Hinges on the long side (600mm height) allow the door to open smoothly and stay in place for easy access during wiring and maintenance.

Key Specifications at a Glance:

• Series -  ARCA IEC (ARCN)
• Height - 600 mm
• Width - 400 mm
• Depth - 210 mm
• Material - Halogen-free, UV-resistant polycarbonate
• Protection rating - IP66
• Impact rating - IK10
• Flammability rating - UL 94 5VA
• Colour - Grey (cover)
• Mounting - Wall-mounted (vertical)
• Locking - 2-point locking system
• Weight - 8400g (8.4kg)
• Certifications - UL508A


Note: Internal mounting plates, terminal blocks, and other accessories are available separately.

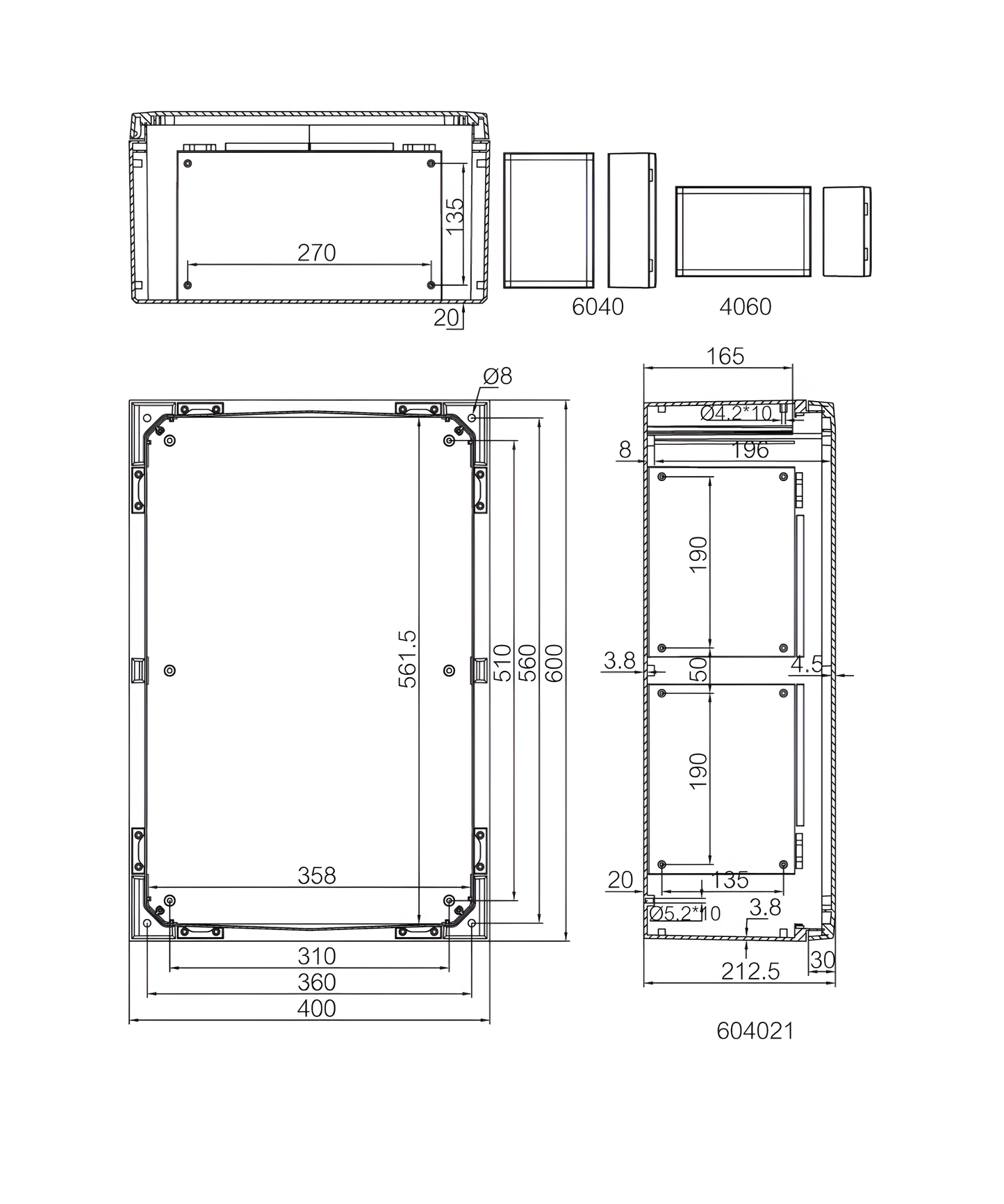

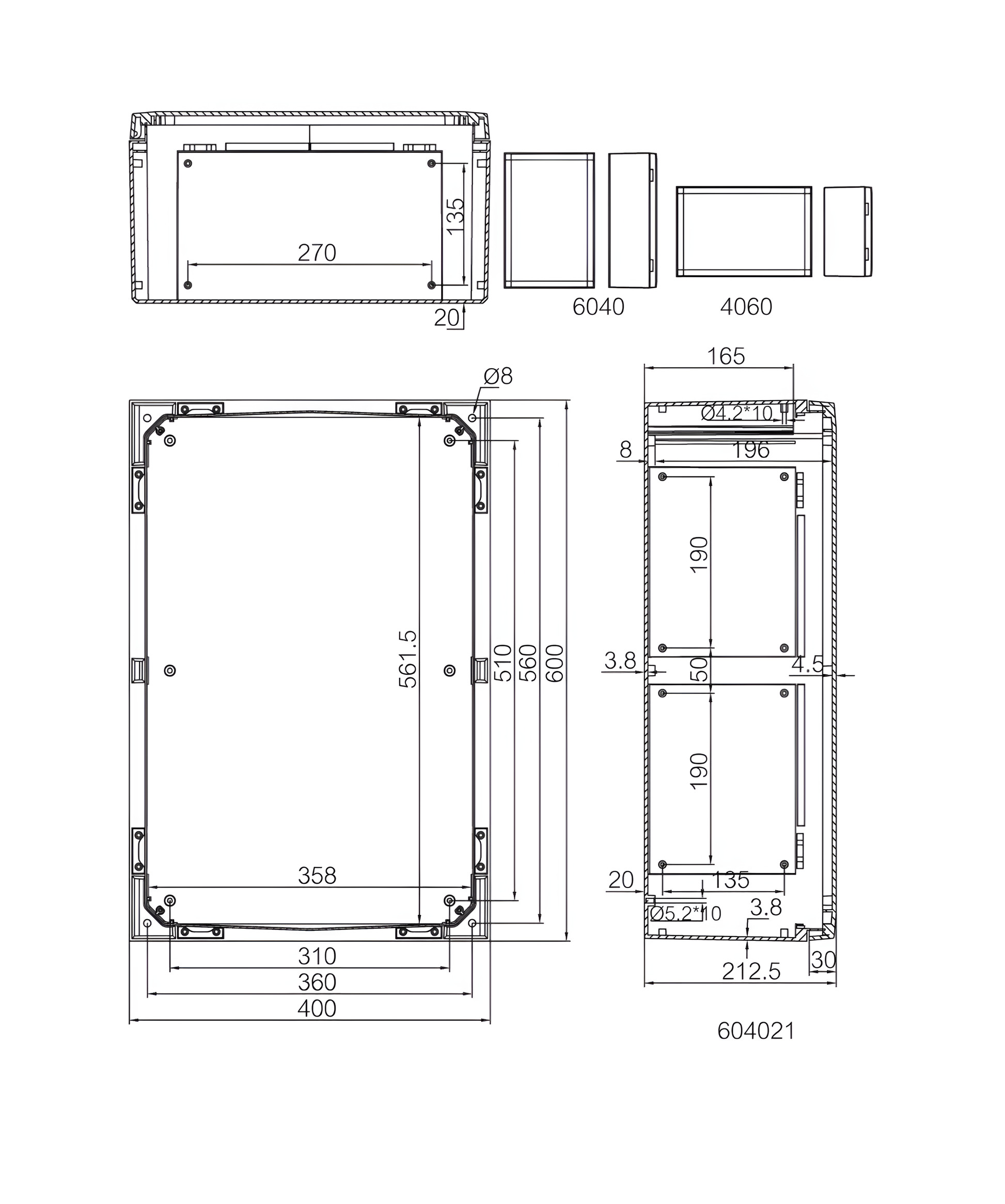

See dimensional drawing here

See full data sheet here
