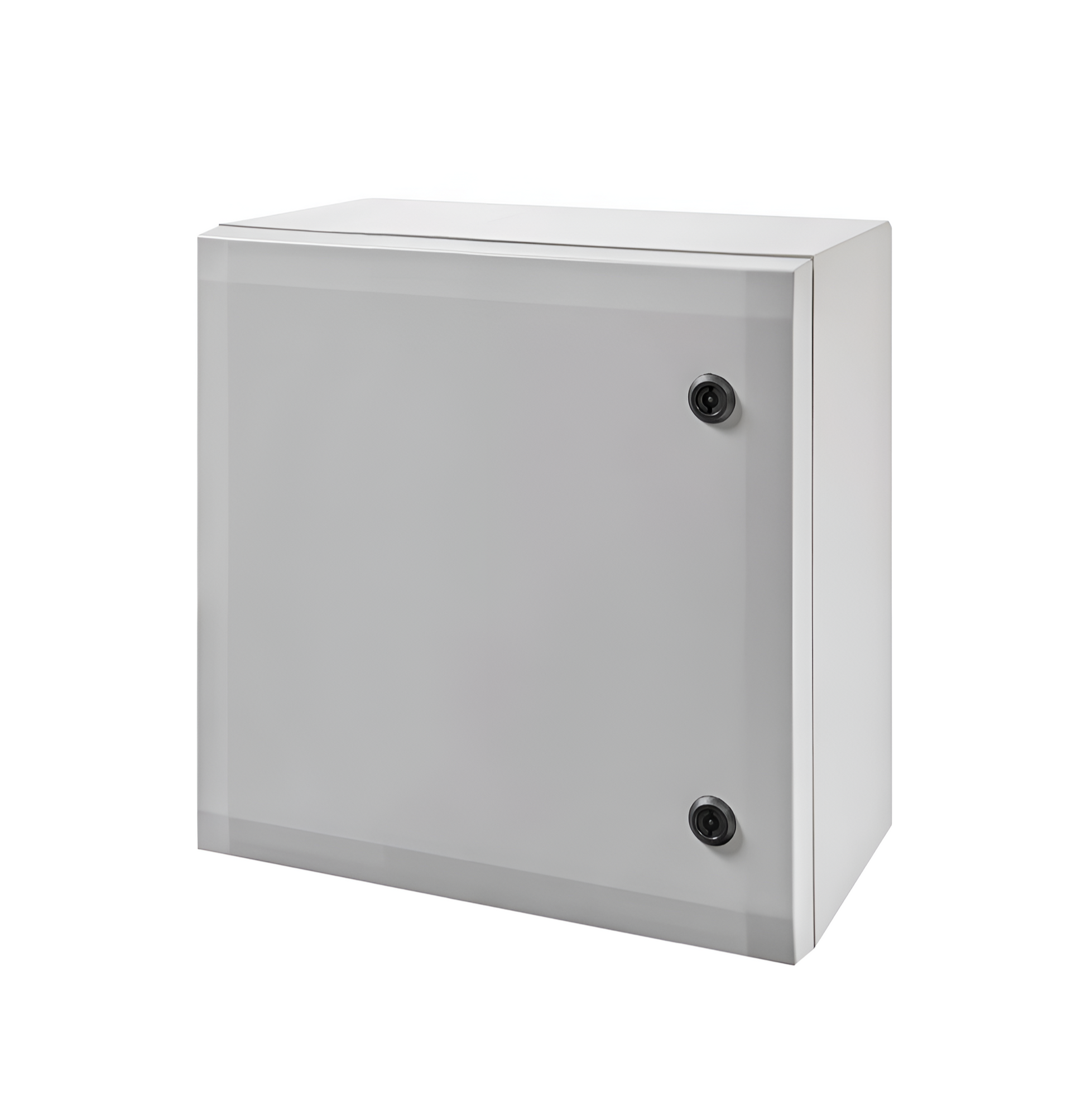

ARCA IEC Wall-Mounted Enclosure (303021)

Product Number: 303021

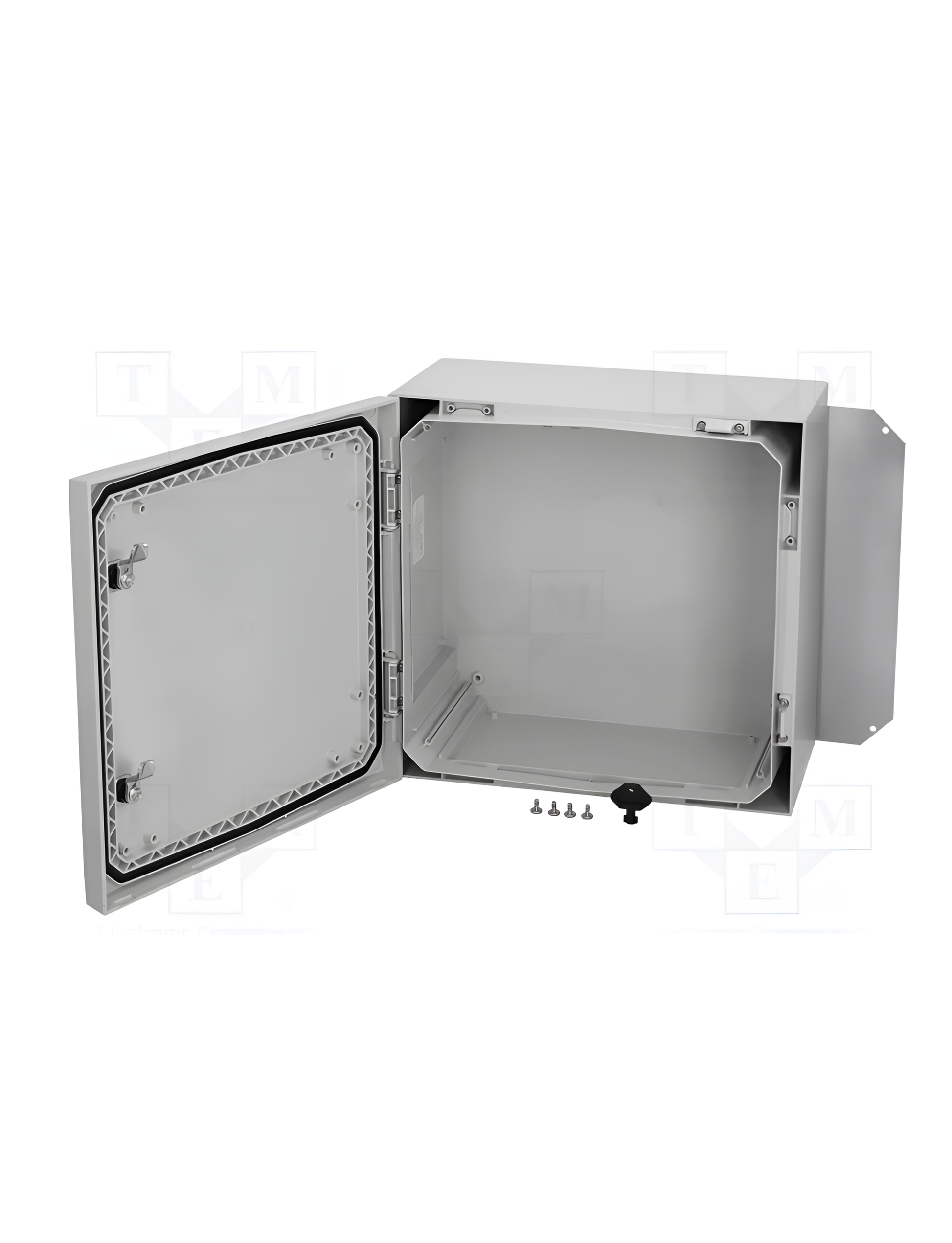

The ARCA 303021 (8120005) is a high-performance polycarbonate enclosure cabinet from the ARCA IEC (ARCN) series, designed for secure control and measurement applications in electrical installations. This robust cabinet features a grey PC base and door with a PUR gasket for superior weather resistance, along with a mounting plate and screws for easy component installation. Security is ensured with a 3mm double-bit lock (key included), while S versions include a swing-handle 2-point locking system for enhanced protection. The door guide ensures smooth operation, and hinges are positioned on the long side for convenient access.

Key Features & Specifications:

• Dimensions: 300mm (H) × 300mm (W) × 210mm (D)
• Weight: 4200g
• Material: Halogen-free, UV-resistant polycarbonate

Protection Ratings:

• IP66 (Dust-tight & water resistant)
• IK10 (High-impact protection)

Safety & Compliance:

• UL 94 5VA (Highest flame resistance)
• UL508A Listed (Industrial control equipment standard)
• ATEX: No
• UV Resistant: Yes

Installation:

• Supports vertical mounting

Applications:

• ✔ Control & Measurement
• ✔ Electrical Installations
• ✖ Terminal Enclosures | ✖ Power Distribution Boards | ✖ Electronic Devices

Ideal for industrial environments requiring durable, secure, and weatherproof enclosures, the ARCA 303021 (8120005) delivers long-lasting reliability in demanding conditions.

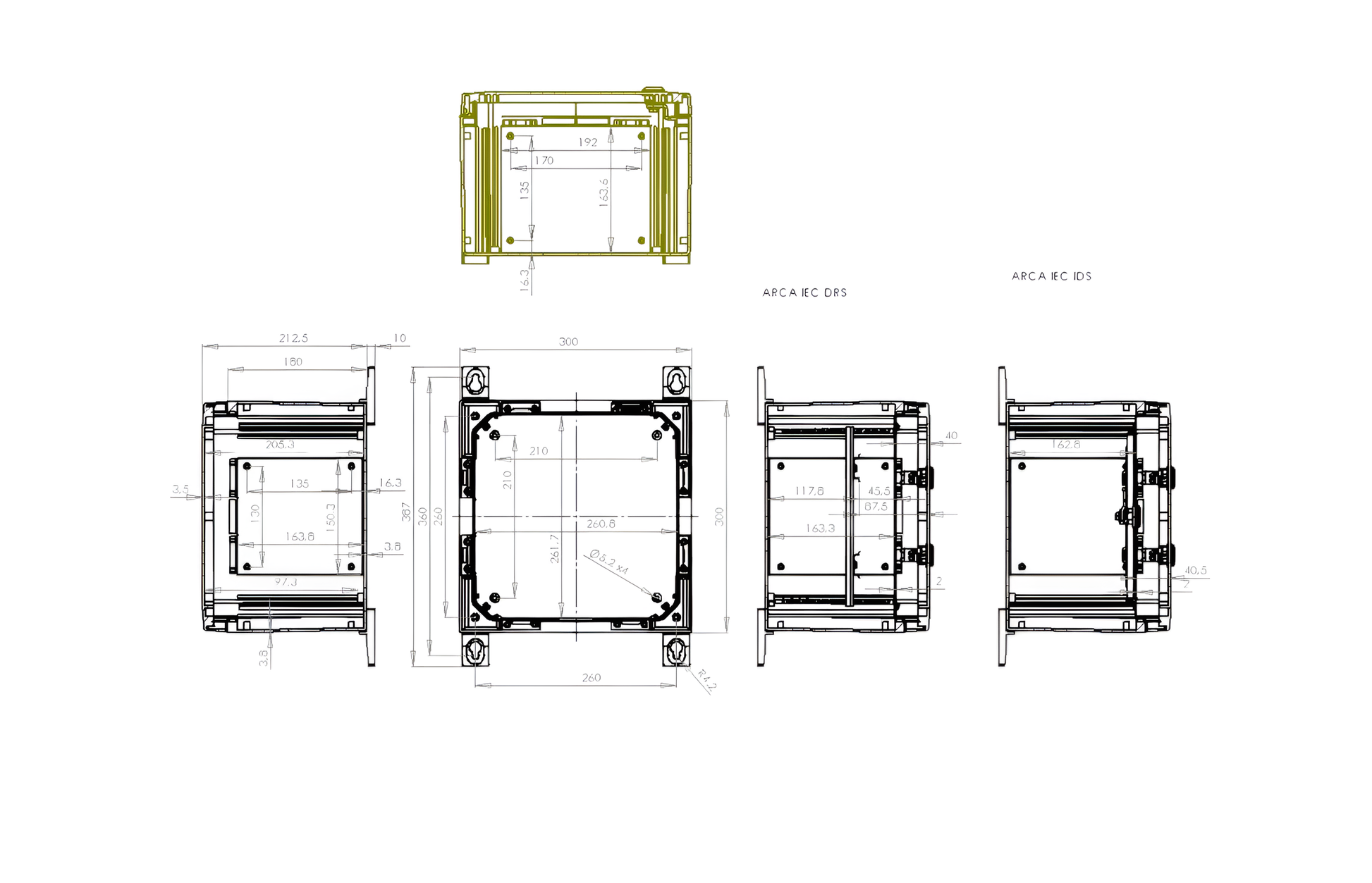

See dimensional drawing here

See full data sheet here
