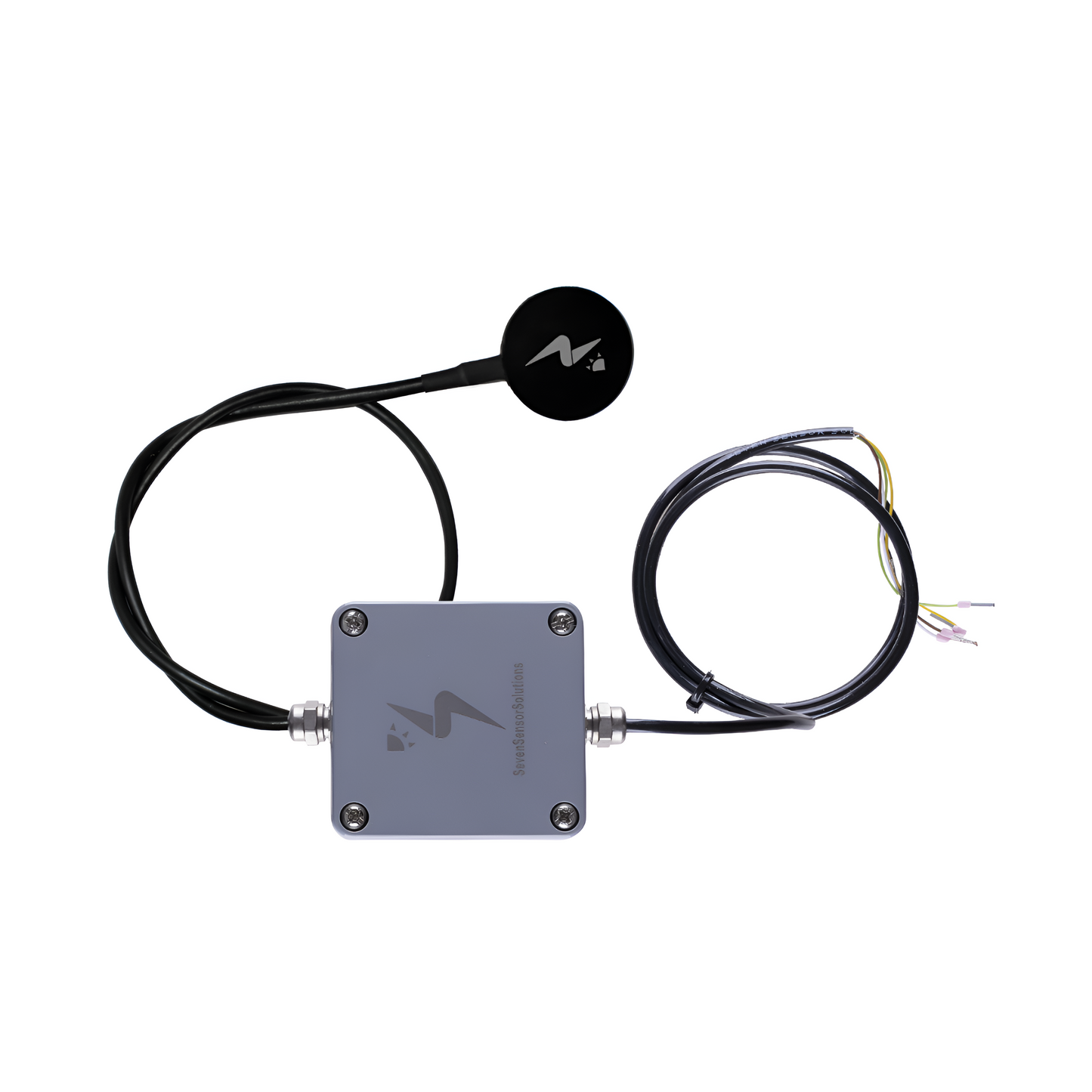

Module Temperature Sensor with Modbus Output PT1000

Product ID: 3S-MT-PT1000-MB

This Seven Sensor module temperature sensor measures the back of solar panels temperature in degrees Celsius by using a PT1000 probe.

PT1000 probe is placed between two backsheets with EVA sheets.

Utilises a transducer to convert PT000 to Modbus RTU.

Compatible with all Dataloggers and PLCs with RS485 input port.

Measuring Range: -40°C to +85°C

Accuracy: 0.1°C

Sensor Cover Dimensions: 35 x 3 mm

Box Dimensions: 64 x 68 x 35 mm

View full data sheet here
