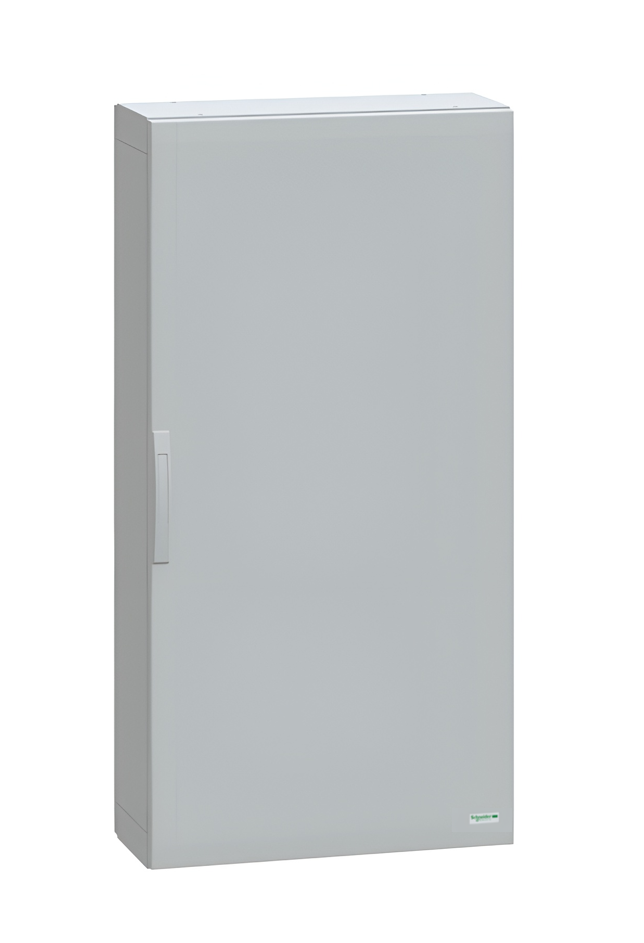

NSYPLA1573G - Schneider Electric 1500x750x320mm GRP Floor Standing Enclosure

Product Number: NSYPLA1573G

The NSYPLA1573G is a floor-standing GRP (glass-reinforced polyester) enclosure from Schneider Electric's Thalassa PLA range. This model has a single door and a shallow depth of 320mm, making it suitable for installations where space behind the enclosure is limited.

Specifications:
Height: 1500mm
Width: 750mm
Depth: 320mm
Protection rating: IP65
Impact rating: IK10
Material: GRP (glass-reinforced polyester), halogen-free
Colour: RAL7035 (light grey)
Door configuration: Single solid door
Door opening: 120° on reversible hinges
Locking system: 4-point locking with 5mm double-bar insert

Included items:
The enclosure comes with the door, locking system, and the full enclosure body.

Items not included:
An internal mounting plate is not included and must be ordered separately

See full data sheet here
