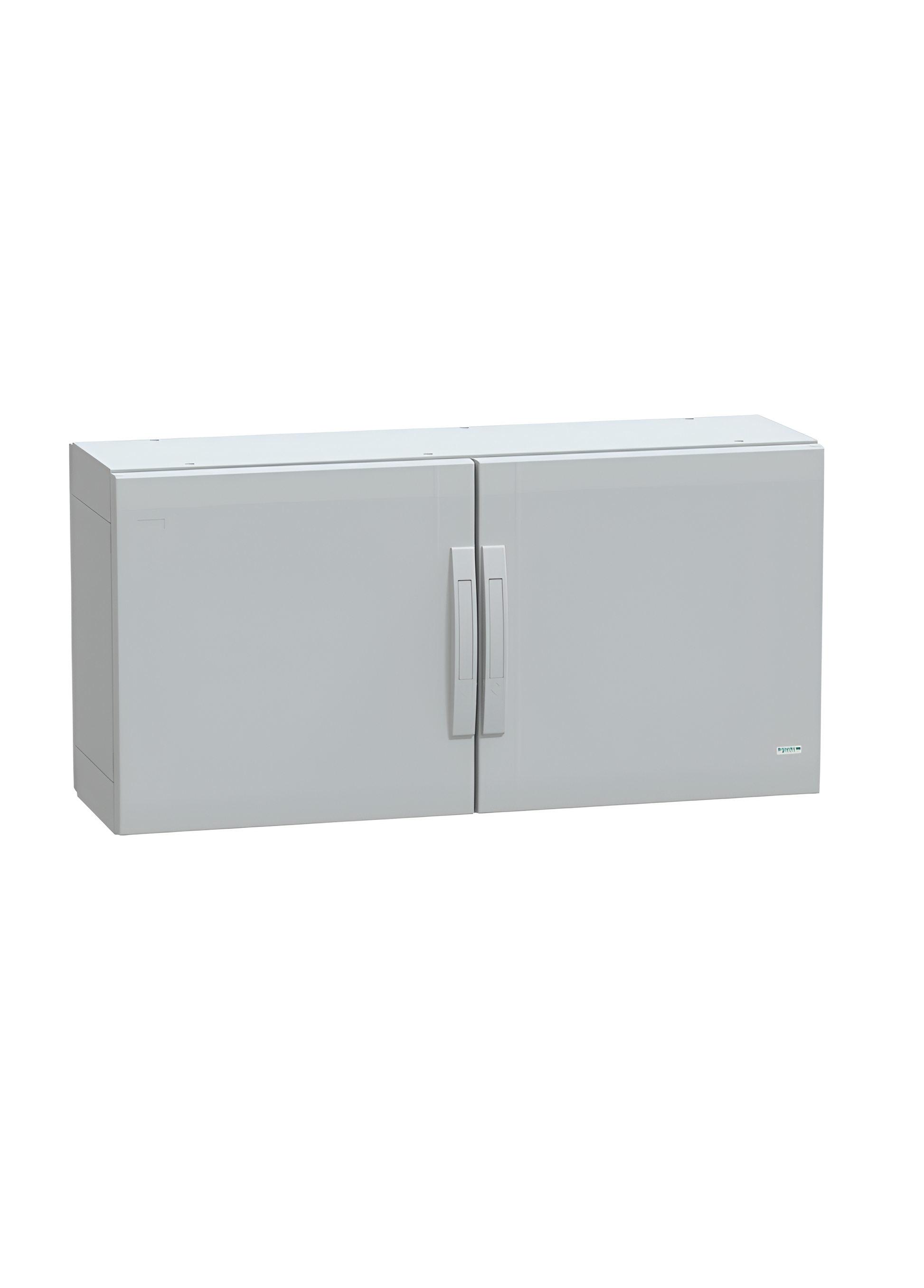

NSYPLA5103G - Schneider Electric 500x1000x320mm Floor Standing GRP Enclosure, IP65

Product Number: NSYPLA5103G

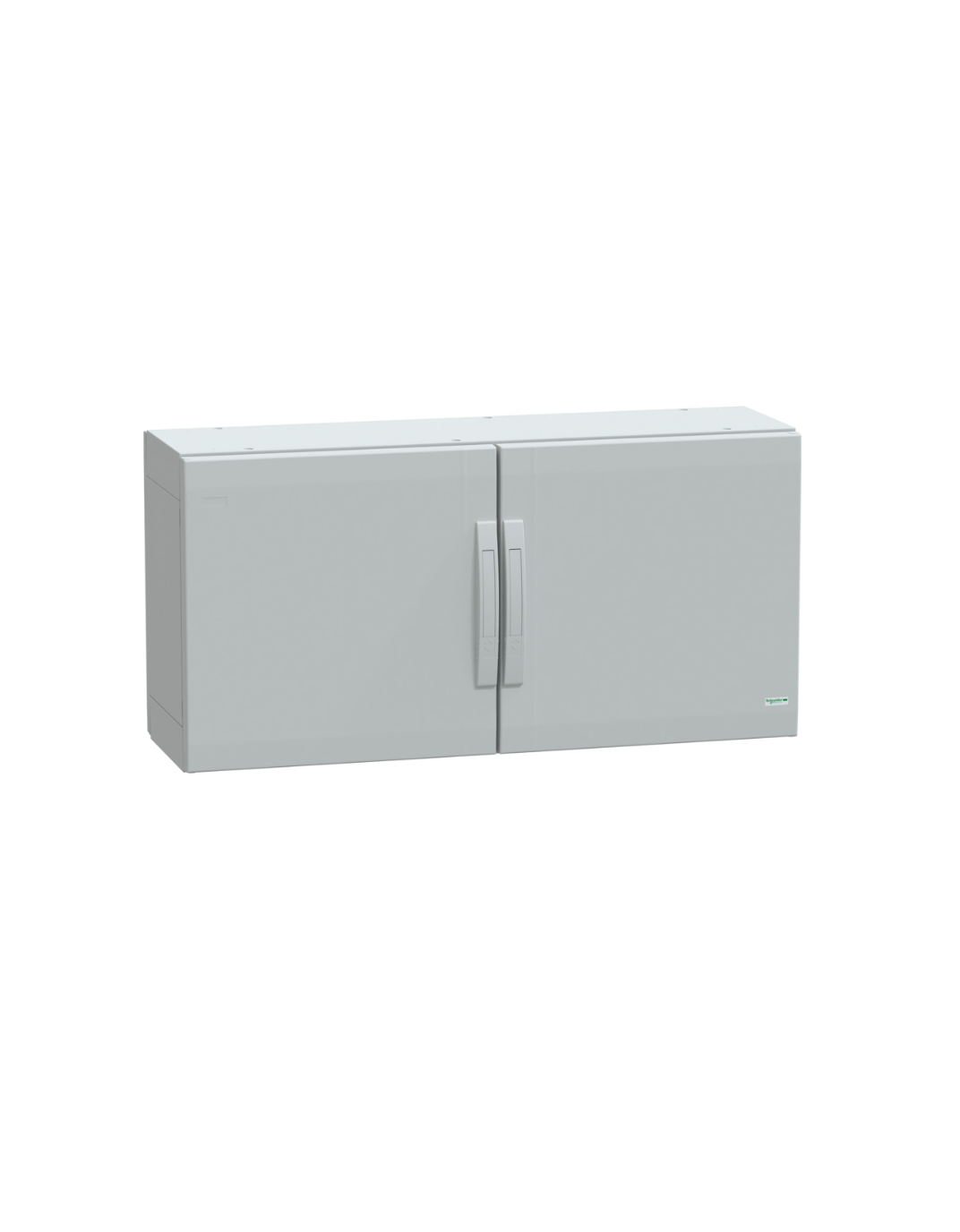

Schneider Thalassa PLA GRP 500H x 1000W x 320D mm Floor Standing Enclosure, IP65

The Schneider Electric NSYPLA5103G is a compact floor-standing GRP (Glass Reinforced Polyester) enclosure, purpose-built for demanding industrial environments where you need a wide footprint but a low profile. Combining a 500mm height with a 1000mm width and 320mm depth, this cabinet is ideal for instrumentation, smaller control systems, and applications where a full-height 1250mm or 1500mm enclosure would be excessive.

With an IP65 ingress protection rating, this enclosure is completely dust-tight and water resistant.

Designed for wide access with double doors. The 1000mm wide NSYPLA5103G features a double-door configuration with two 500mm wide doors. This symmetrical design provides balanced access to the entire cabinet interior, making it easy to install and maintain wide component layouts.

The central post forms part of the robust locking system but can be temporarily removed while you work inside, giving you full, unobstructed access when fitting or maintaining components. Once work is complete, the post is easily refitted to restore the original security.

Key Features & Benefits:

Durable GRP Construction: Lightweight yet exceptionally strong. GRP will not corrode like steel, ensuring a long service life in harsh, humid, or chemical-laden environments.

Compact Height (500mm) + Wide Width (1000mm): Low-profile design for accessible operation without ladders. Fits beneath equipment and in tight spaces.

High Ingress Protection: Rated IP65 – dust-tight and protected against low-pressure water jets. Suitable for washdown areas and outdoor use.

Double Symmetrical Doors (RAL7035): Two 500mm wide doors provide balanced access. The removable central post allows full interior access during installation.

Integrated Locking System: The locking mechanism secures both doors. The central post can be removed temporarily for easy equipment access.

Versatile Application: Perfect for instrumentation, local control stations, compact PLC cabinets, and communication equipment.

Not Included:

An internal mounting plate is not included and must be ordered separately.

See full data sheet here
