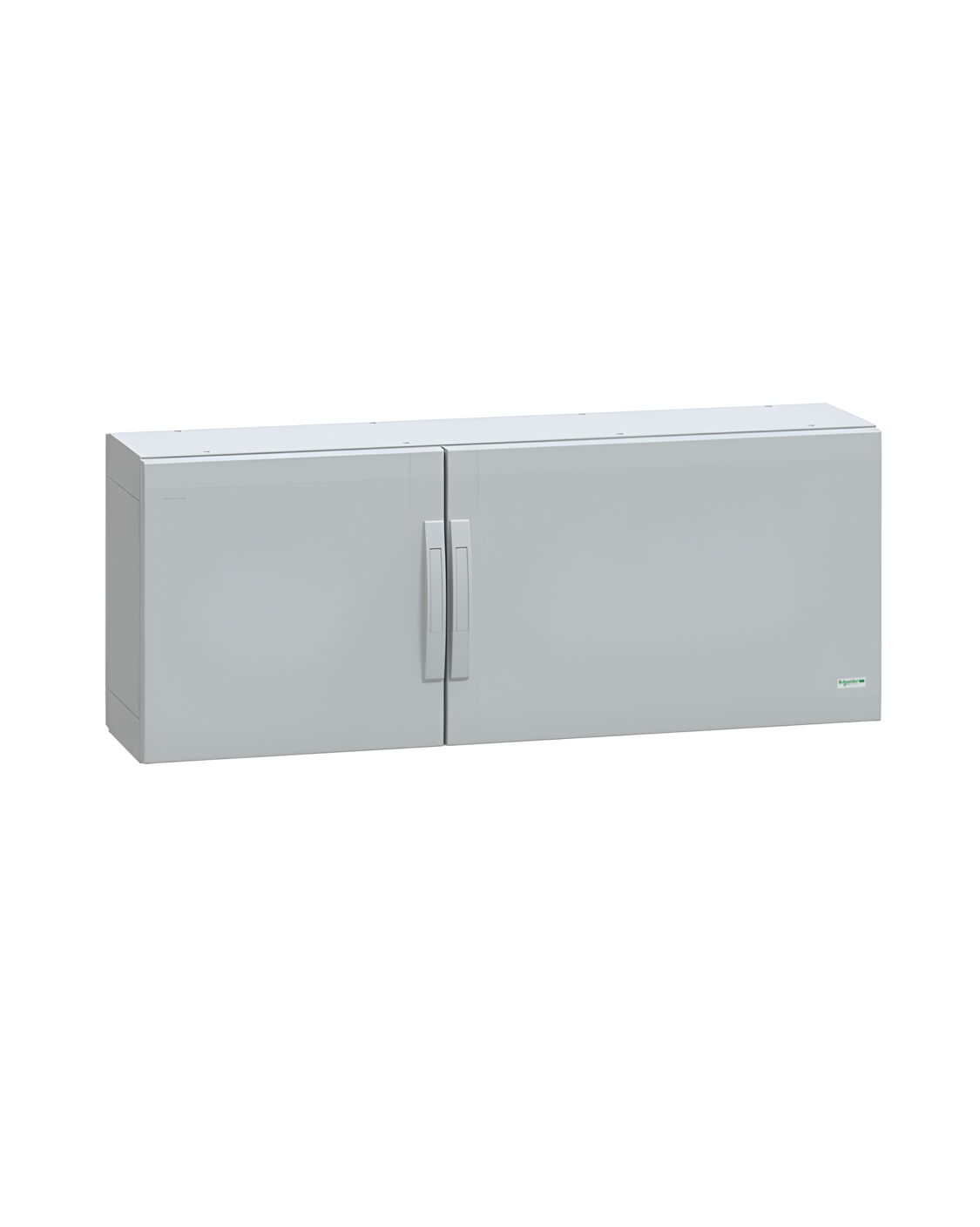

NSYPLA5123G - Schneider Electric 500x1250x320mm Floor Standing GRP Enclosure, IP65

Product Number - NSYPLA5123G

Schneider Thalassa PLA GRP - NSYPLA GRP 500H x 1250W x 320mmD Floor Standing Enclosure with Double Plain Grey Doors; IP65; RAL7035

The Schneider Electric NSYPLA5123G is a low-height, wide-profile floor-standing GRP (Glass Reinforced Polyester) enclosure, purpose-built for demanding industrial environments where you need maximum width but minimal height. Combining a 500mm low profile with a maximum 1250mm width and 320mm shallow depth, this cabinet is ideal for horizontal component layouts, under-conveyor installations, workbench-level controls, and retrofit projects where height is restricted.

With an IP65 ingress protection rating, this enclosure is completely dust-tight and water resistant.

Designed for wide access with double doors. The 1250mm wide NSYPLA5123G features a double-door configuration with one 500mm wide door and one 750mm wide door. This asymmetric design allows you to access different sections of your equipment without exposing the entire cabinet.

The central post forms part of the robust 3-point locking system but can be temporarily removed while you work inside, giving you full, unobstructed access when fitting or maintaining components. Once work is complete, the post is easily refitted to restore the original security.

The 320mm shallow depth provides sufficient space for standard DIN rail components, terminals, slim power supplies, and single-layer component layouts. It is not suitable for deep VSDs, large contactors, transformers, or components requiring significant rear clearance.

Key Features & Benefits:

Durable GRP Construction: Lightweight yet exceptionally strong. GRP will not corrode like steel, ensuring a long service life in harsh, humid, or chemical-laden environments.

Low Profile (500mm) + Maximum Width (1250mm): The ideal combination for horizontal component layouts where vertical space is limited. Fits under conveyors, below workbenches, and in low-ceiling plant rooms.

Shallow Depth (320mm): Fits where deep enclosures cannot. Perfect for retrofit projects and space-constrained installations.

High Ingress Protection: Rated IP65 – dust-tight and protected against low-pressure water jets. Suitable for washdown areas and outdoor use.

Double Asymmetric Doors (RAL7035): One 500mm and one 750mm door provide flexible access. The removable central post allows full interior access during installation.

Integrated Locking System: The 3-point locking mechanism secures both doors.

Versatile Application: Perfect for housing single-layer electrical components, control systems, instrumentation, and communication equipment where width is needed but height and depth are limited.

Not Included:

An internal mounting plate is not included and must be ordered separately.

See full data sheet here
