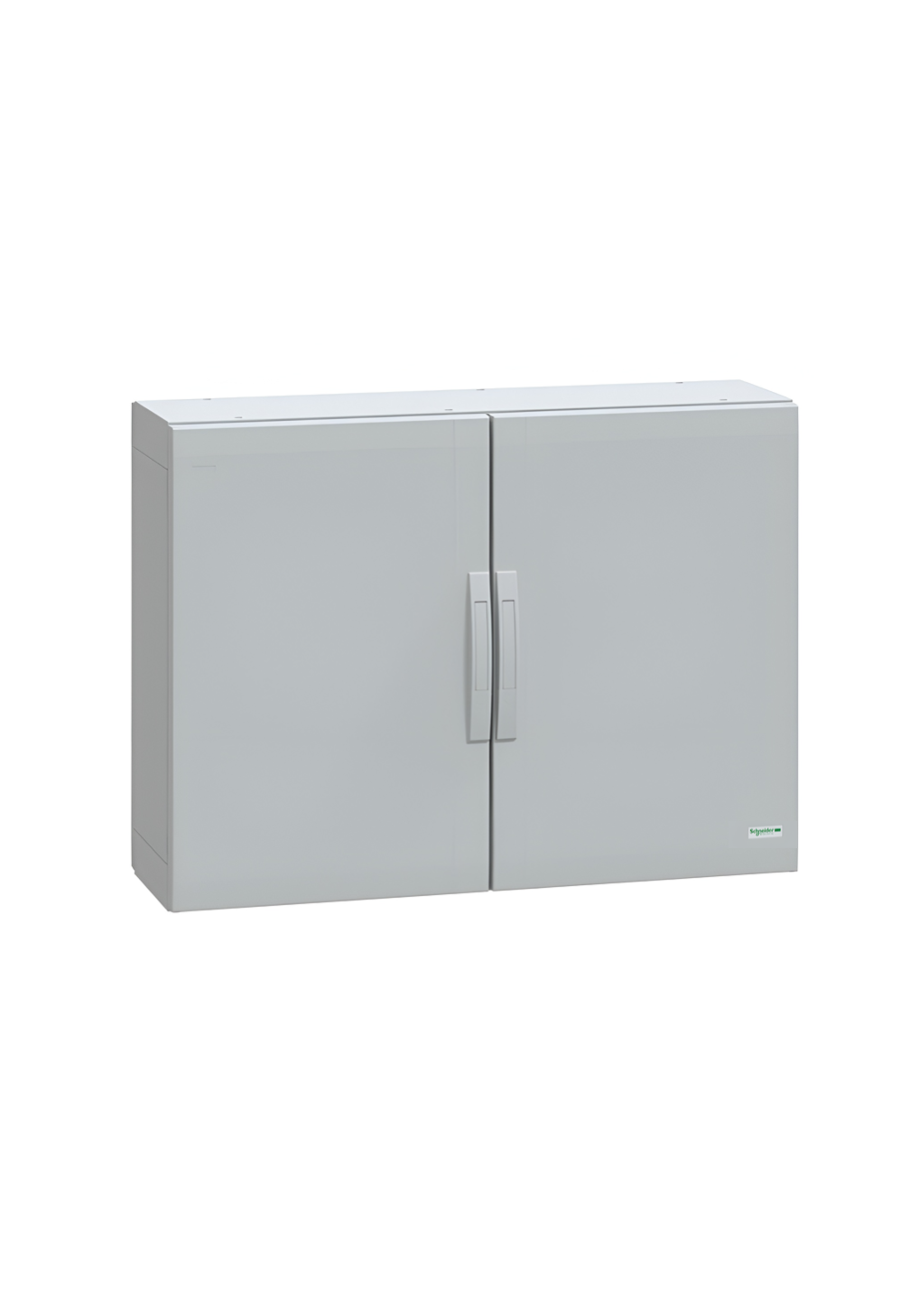

NSYPLA7104G - Schneider Electric 750x1000x420mm Floor Standing GRP Enclosure, IP65

Product Number - NSYPLA7104G

Schneider Thalassa PLA GRP - NSYPLA GRP 750H x 1000W x 420mmD Floor Standing Enclosure with Double Plain Grey Doors; IP65; RAL7035

The Schneider Electric NSYPLA7104G is a compact-height, wide-profile floor-standing GRP (Glass Reinforced Polyester) enclosure, purpose-built for demanding industrial environments where you need a shorter cabinet with generous width. Part of the trusted Thalassa PLA range, this 750mm high x 1000mm wide x 420mm deep cabinet is ideal for applications where standard 1250mm or 1500mm enclosures are too tall.

With an IP65 ingress protection rating, this enclosure is completely dust-tight and water resistant.

Designed for wide access with double doors. The 1000mm wide NSYPLA7104G features a double-door configuration with two 500mm wide doors. This balanced design provides wide, symmetrical access to the entire cabinet interior.

The central post forms part of the robust 3-point locking system but can be temporarily removed while you work inside, giving you full, unobstructed access when fitting or maintaining components. Once work is complete, the post is easily refitted to restore the original security.

Mid-depth 420mm profile for standard components. The 420mm depth provides generous space behind the mounting plate for cabling, ducting, and ventilation – sufficient for most industrial control components, DIN rail layouts, terminals, and slim power supplies.

Key Features & Benefits:

Durable GRP Construction: Lightweight yet exceptionally strong. GRP will not corrode like steel, ensuring a long service life in harsh, humid, or chemical-laden environments.

Compact Height (750mm): The key differentiator. Shorter than standard enclosures – fits below conveyor lines, under workbenches, in machinery bases, and in low-ceiling plant rooms.

Wide Profile (1000mm) + Mid-Depth (420mm): Provides generous component layout width without excessive height or depth.

High Ingress Protection: Rated IP65 – Dust-tight and water resistant. Suitable for outdoor use.

Double Symmetric Doors (RAL7035): Two 500mm doors provide balanced access. The removable central post allows full interior access during installation.

Integrated Locking System: The 3-point locking mechanism secures both doors.

Versatile Application: Perfect for housing electrical components, control systems, instrumentation, and communication equipment where height is limited.

Not Included:

An internal mounting plate is not included and must be ordered separately.

See full data sheet here
