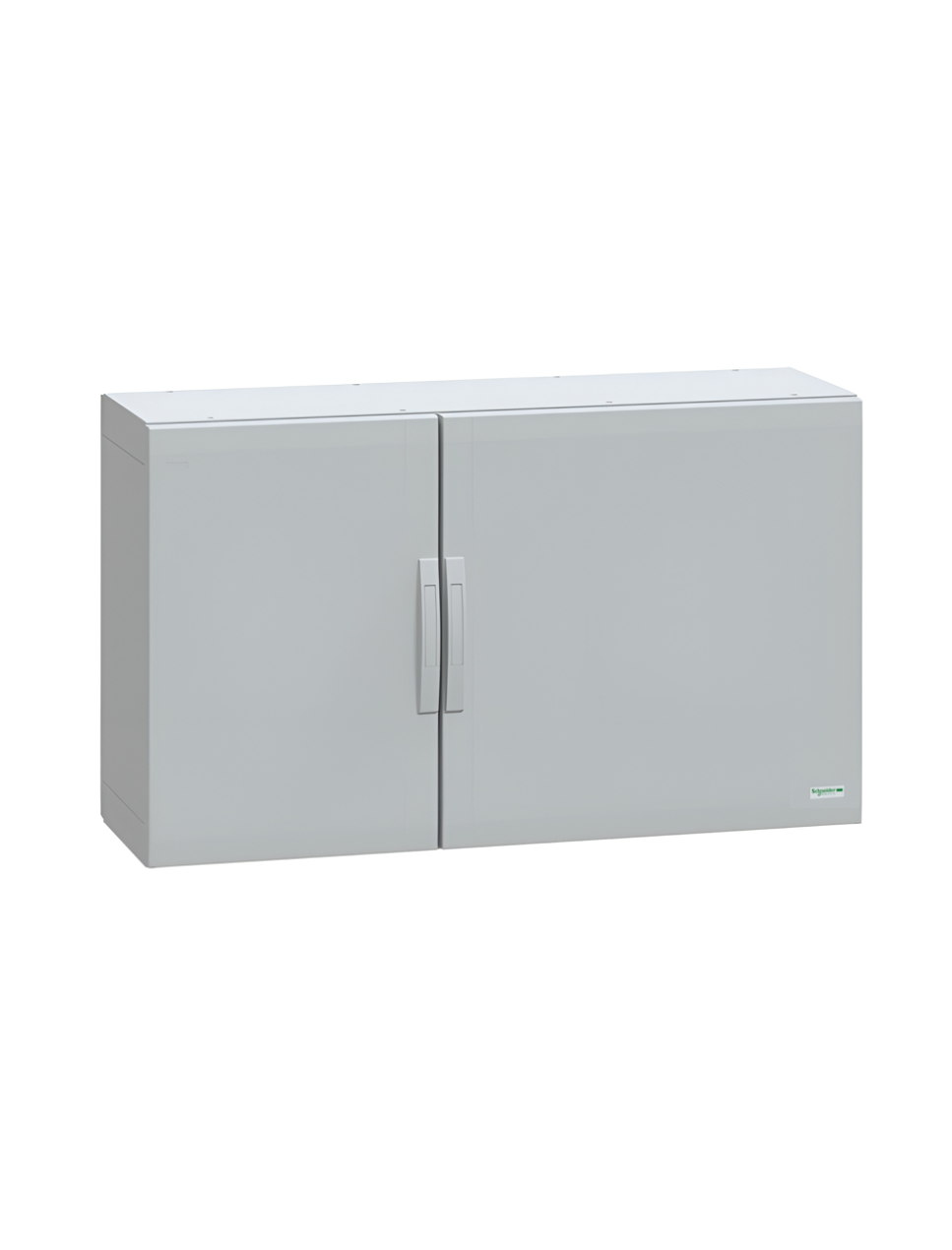

NSYPLA7124G - Schneider Electric 750x1250x420mm Floor Standing GRP Enclosure, IP65

Product Number - NSYPLA7124G

Schneider Thalassa PLA GRP - NSYPLA GRP 750H x 1250W x 420mmD Floor Standing Enclosure with Double Plain Grey Doors; IP65; RAL7035

The Schneider Electric NSYPLA7124G is a wide-profile, lower-height floor-standing GRP (Glass Reinforced Polyester) enclosure, purpose-built for demanding industrial environments where vertical space is limited. Combining a maximum 1250mm width with a mid-depth 420mm profile and a compact 750mm height, this cabinet is ideal for under-counter installations, low-ceiling plant rooms, mezzanine levels, and applications where standard 1250mm or 1500mm enclosures simply cannot fit.

With an IP65 ingress protection rating, this enclosure is completely dust-tight and water resistant.

Designed for wide access with double doors. The 1250mm wide NSYPLA7124G features a double-door configuration with one 500mm wide door and one 750mm wide door. This asymmetric design allows you to access different sections of your equipment without exposing the entire cabinet.

The central post forms part of the robust 3-point locking system but can be temporarily removed while you work inside, giving you full, unobstructed access when fitting or maintaining components. Once work is complete, the post is easily refitted to restore the original security.

Key Features & Benefits:

Durable GRP Construction: Lightweight yet exceptionally strong. GRP will not corrode like steel, ensuring a long service life in harsh, humid, or chemical-laden environments.

Compact Height (750mm) + Maximum Width (1250mm): The ideal combination for wide component layouts where vertical space is restricted. Fits under counters, on mezzanines, and in low-ceiling plant rooms.

Mid-Depth 420mm Profile: Provides generous internal depth for most standard industrial control components without excessive floor footprint.

High Ingress Protection: Rated IP65 – Dust-tight and water resistant. Suitable for outdoor use.

Double Asymmetric Doors (RAL7035): One 500mm and one 750mm door provide flexible access. The removable central post allows full interior access during installation.

Integrated Locking System: The 3-point locking mechanism secures both doors. The central post can be removed temporarily for easy equipment access.

Versatile Application: Perfect for housing wide-format electrical components, control systems, instrumentation, and communication equipment where height is the constraint.

Not Included:

An internal mounting plate is not included and must be ordered separately.

See full data sheet here
