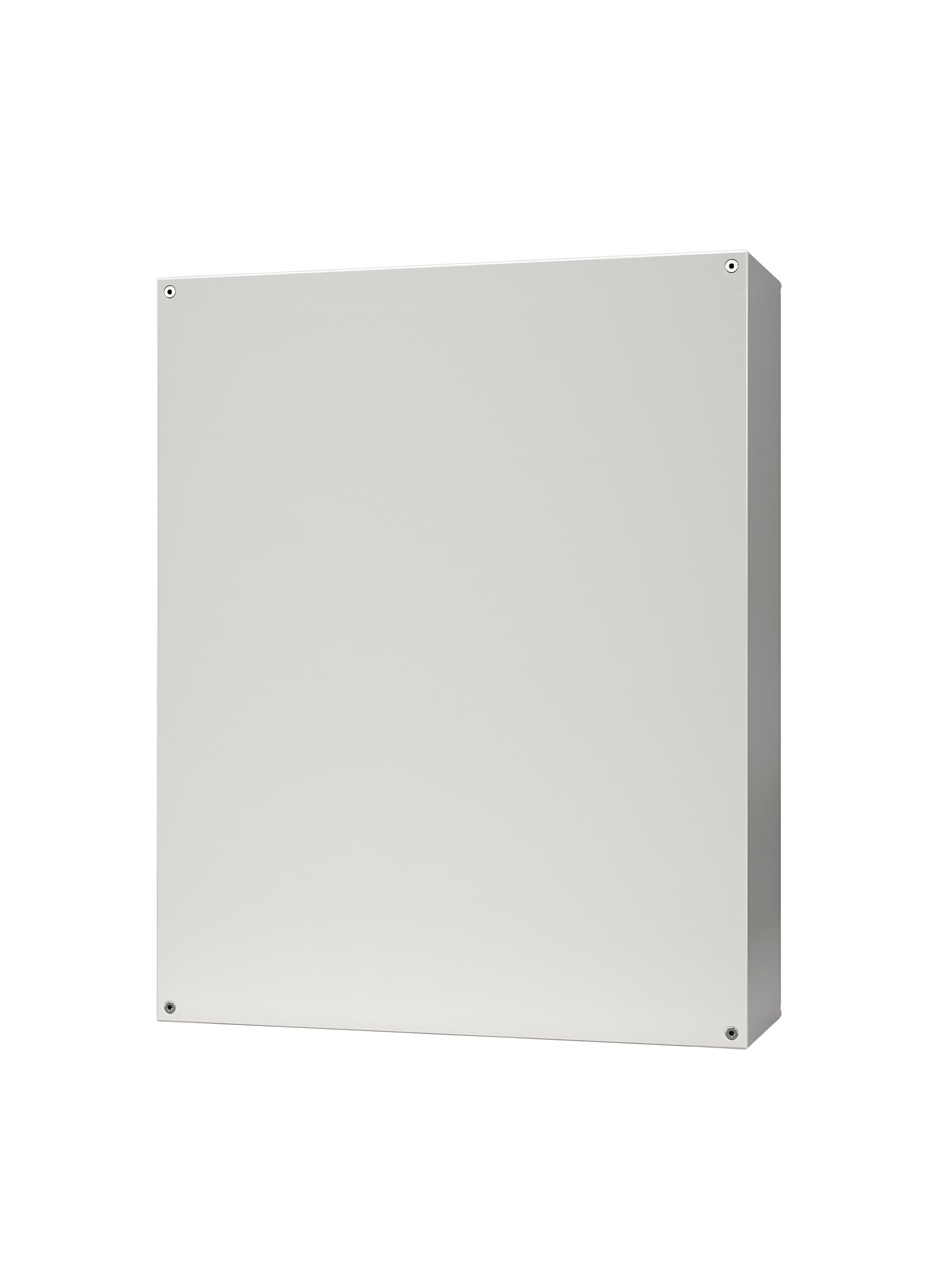

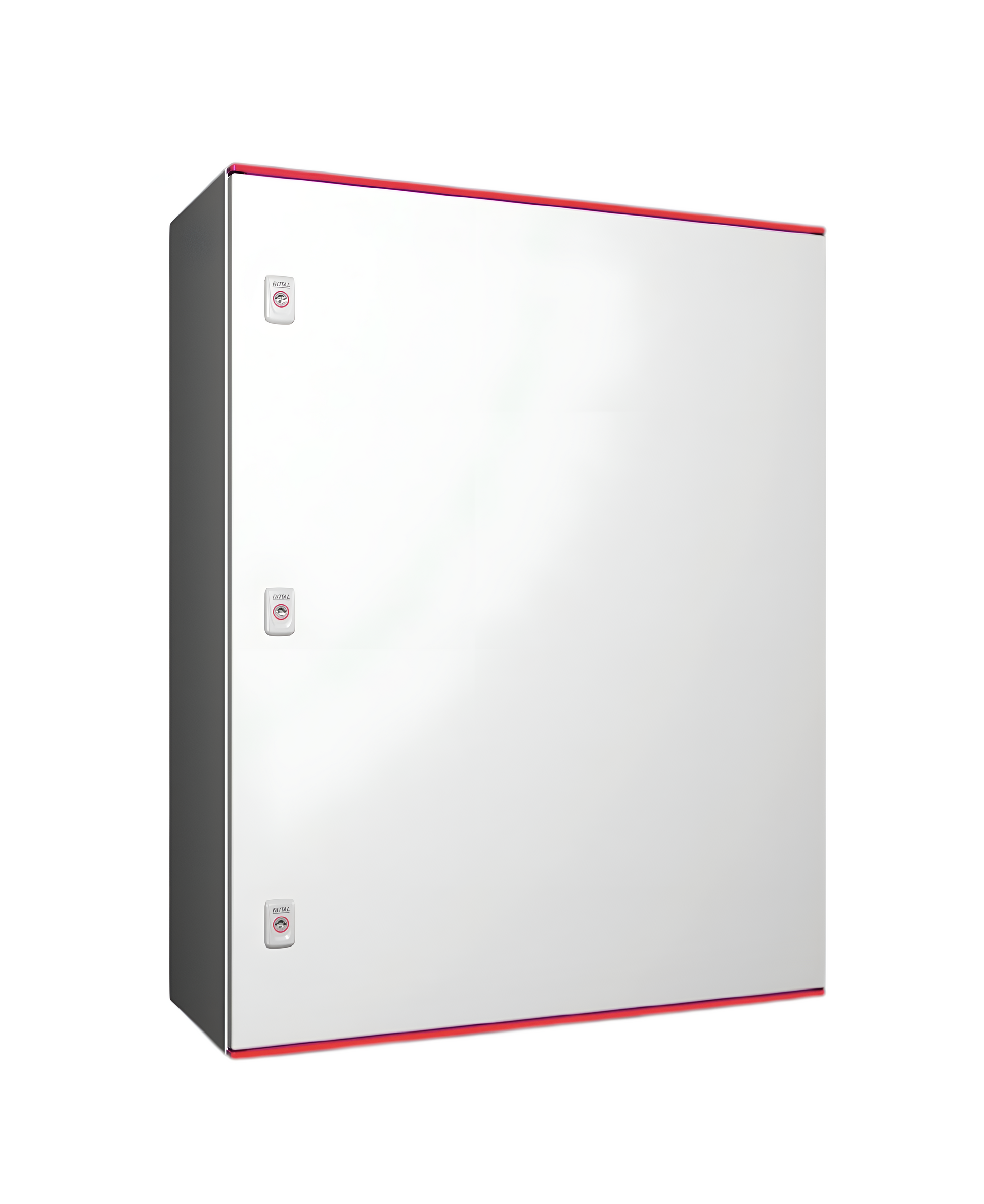

Plastic enclosures AX without viewing window (1480.000)

Product ID: AX 1480.000

AX Plastic Enclosure without viewing window - AX plastic enclosures are ideal for applications in challenging situations. Numerous mounting bosses inside the enclosure allow individual interior configuration on a 25 mm pitch pattern, e.g. with punched sections and rails.

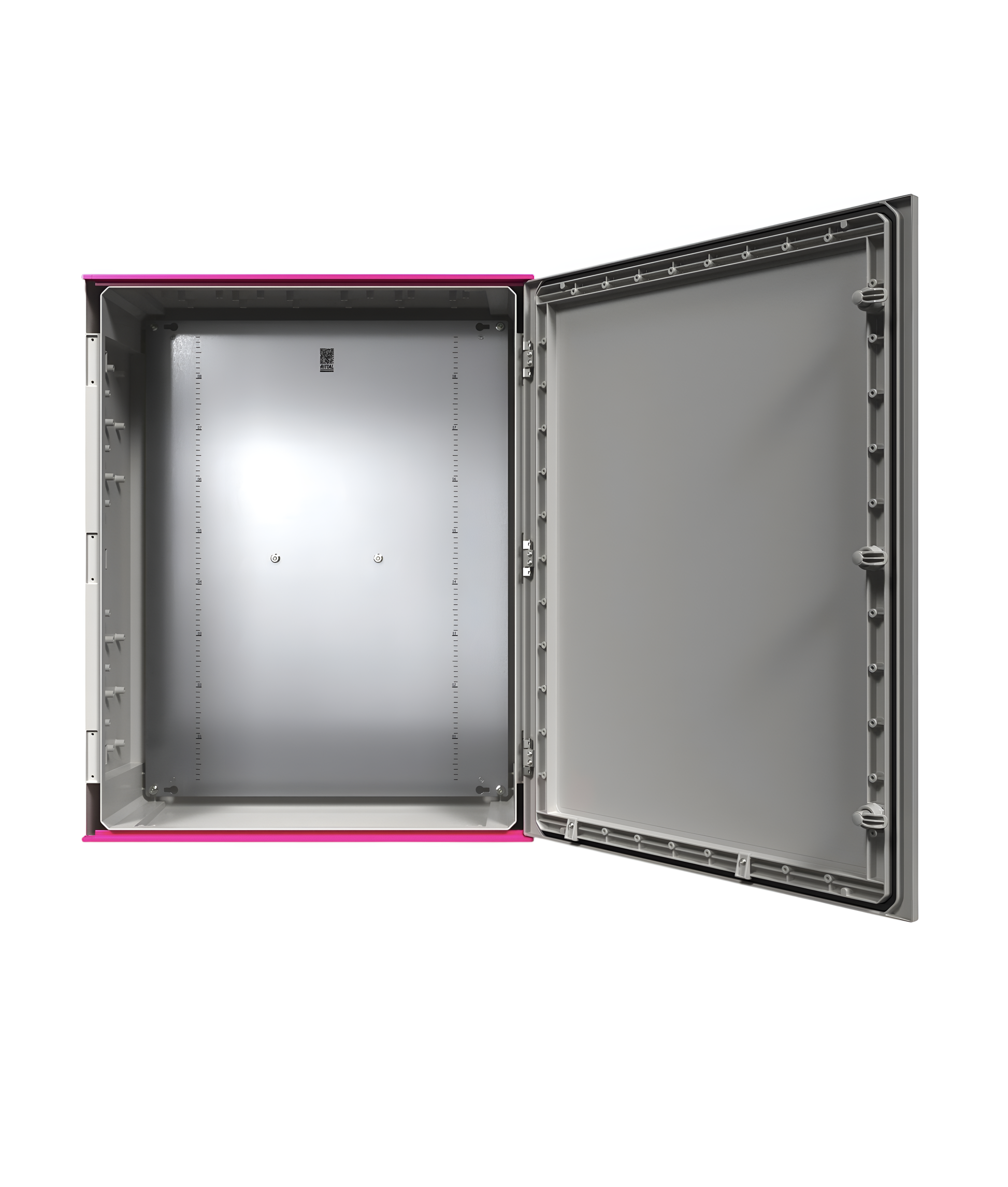

Supply Includes:                                                                                                         Enclosure with hinged door, of all-round solid construction, 3 mm double-bit lock
Door hinged on the right, may be swapped to the left
Mounting plate
Twin seal on the top and bottom edges of the door as integral rain protection strip

Materials:                                                                                                                  Enclosure and door: Fibreglass-reinforced unsaturated polyester
Door: All-round foamed-in PU seal
Mounting plate: Sheet steel
Fire protection corresponding to UL 94-V0
Halogen free

Dimensions:                                                                                                              Width: 800 mm
Height: 1,000 mm
Depth: 300 mm

See full data sheet here
