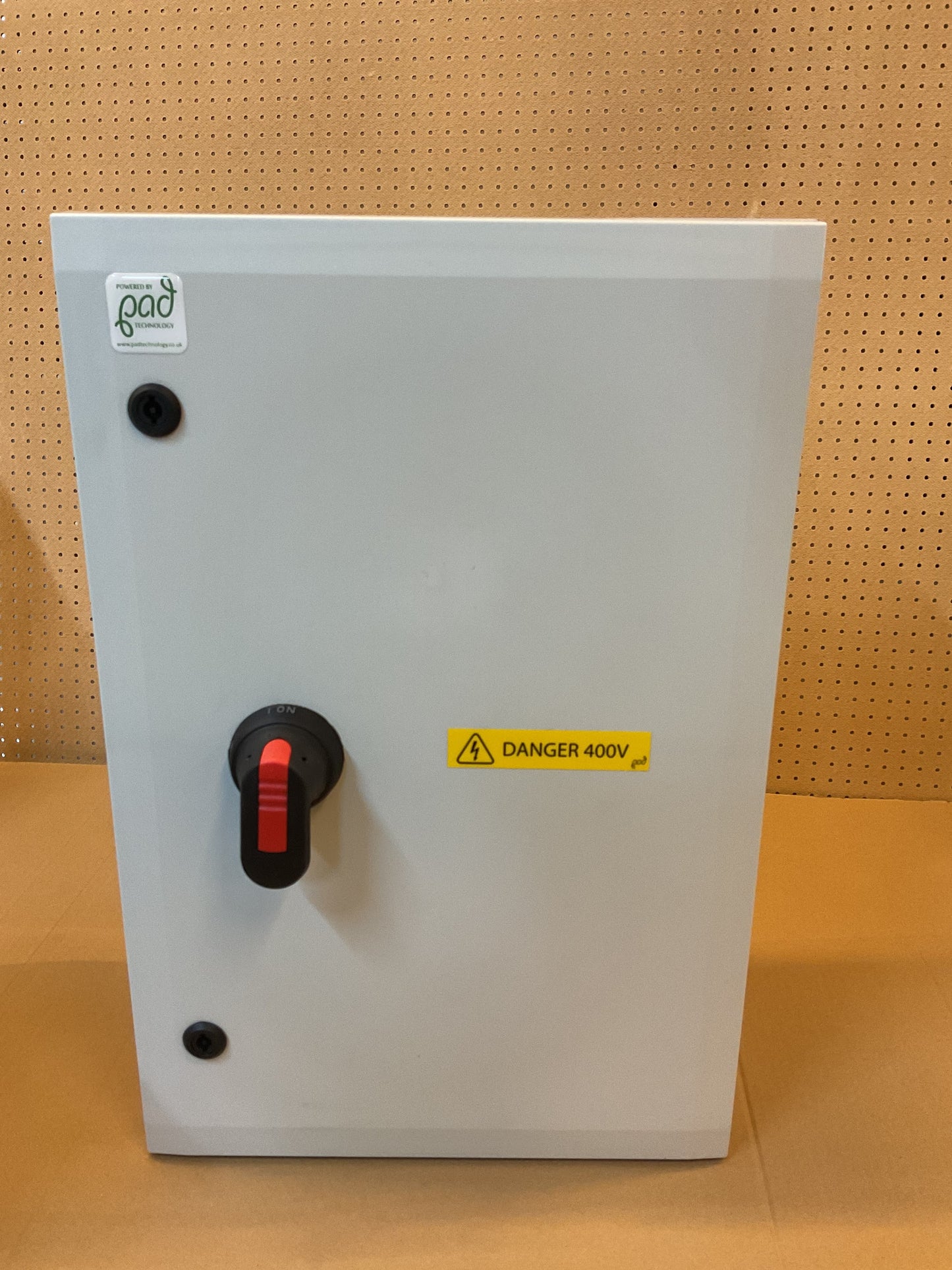

PAD2503P

The PAD2503P is a robust and versatile wall-mounted enclosure designed for industrial and outdoor applications, combining the durability of Fibox ARCA IEC range enclosures with the reliability of ABB isolators and expert installation by PAD Technology.

Mainly used in an electrical distribution or industrial environment, Isolator switches are used to disconnect the source of power when machine services or repairs are required.

Constructed from high-quality polycarbonate, the enclosure features:

• IP66 rating for superior dust and water resistance
• IK10 rating for exceptional impact protection
• Grey RAL7035 finish with a plain door, hinges, and a 2-point centre locking system
• 3mm double-bit lock for enhanced security
• Internal mounting plate for easy component installation (gland plate not included)

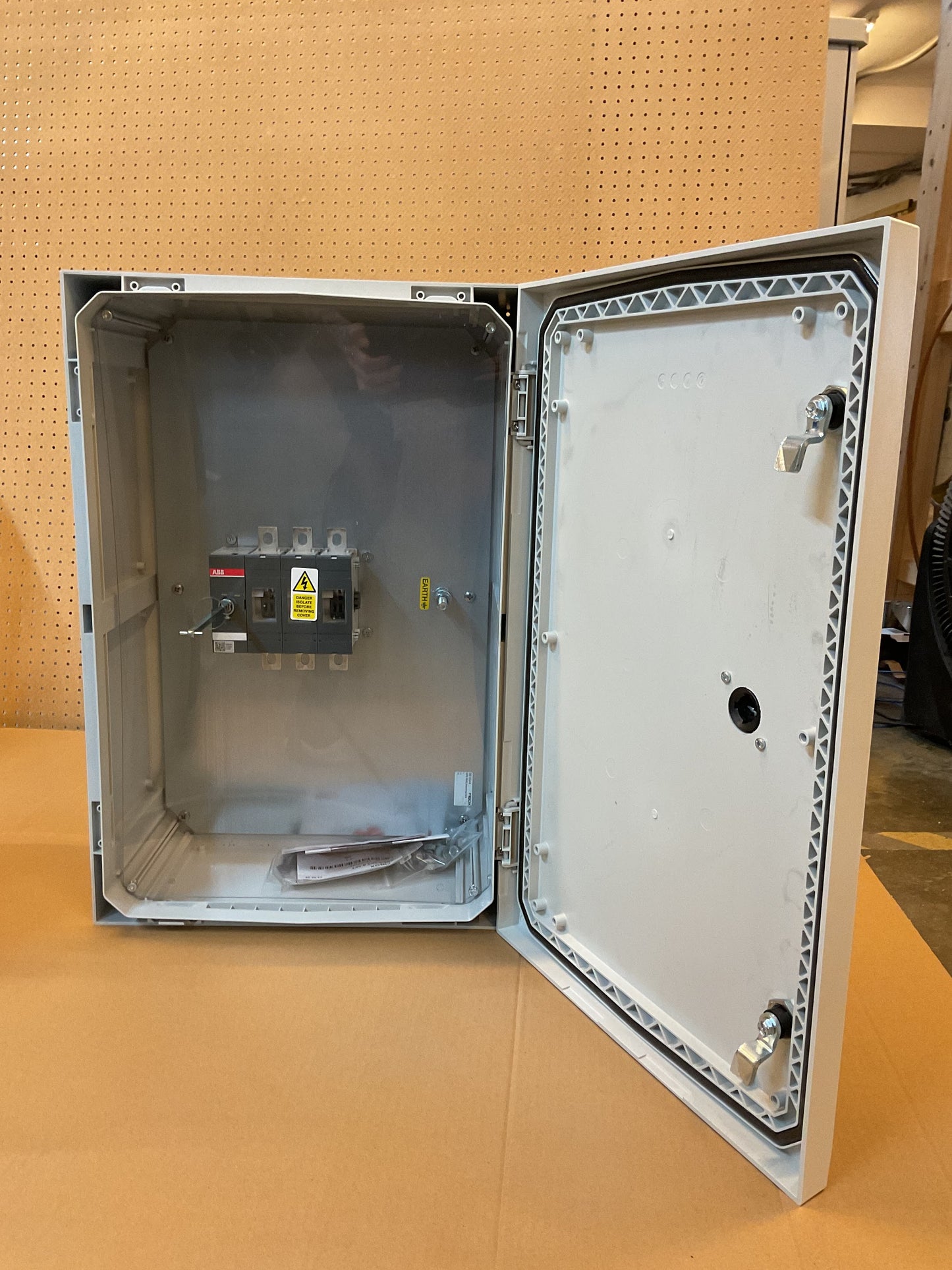

The integrated ABB OT 250A 3-pole isolator includes:

• Front-operated, base-mounted switch-disconnector
• Black IP65-rated handle with a 210mm shaft
• Pad lockable in the OFF position and door-interlocked in the ON position
• Compliance with IEC60947-2 standards
• Dimensions: (H) 600mm x (W) 400mm x (D) 210mm

This combination of Fibox enclosure quality, ABB isolator reliability, and PAD Technology’s expert installation ensures a secure, durable, and efficient solution for demanding industrial and outdoor applications.
