ABB Processor module. Memory 2MB. 12 DI 24 VDC. 6 DO-Relay. 2 DC 24VDC. Ethernet interface. 2 option slots (1SAP123500R0172)

ABB Processor module. Memory 2MB. 12 DI 24 VDC. 6 DO-Relay. 2 DC 24VDC. Ethernet interface. 2 option slots (1SAP123500R0172)

ABB

£389.82 GBP
£389.82 GBP
Sale Sold Out - Make an Enquiry
Shipping calculated at checkout.

Product ID: 1SAP123500R0172


Product Type: PM5032-R-ETH

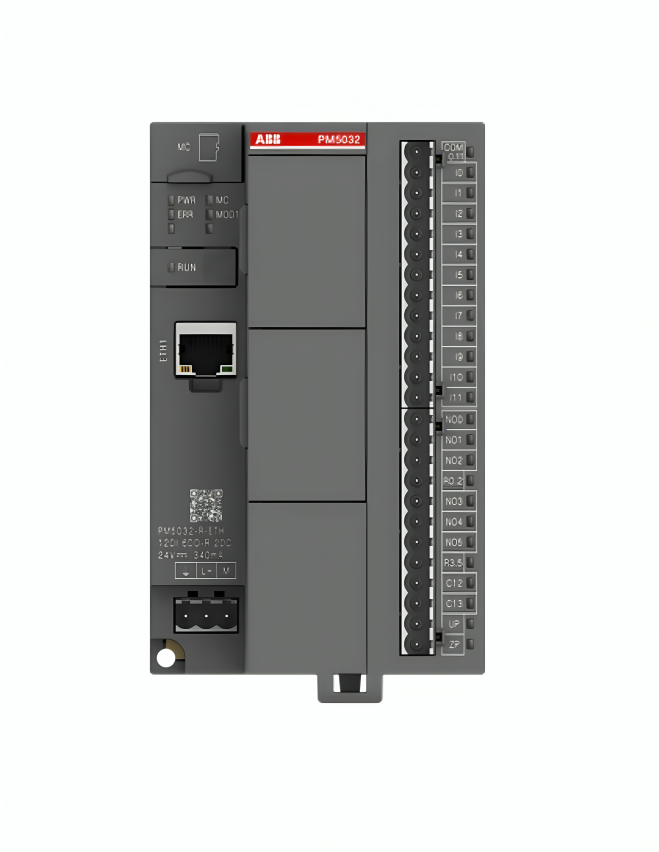

PM5032-R-ETH: AC500-eCo Processor module. Memory 2MB. 12 DI 24 VDC. 6 DO-Relay. 2 DC 24VDC. Ethernet interface. 2 option slots.

Dimensions:

  • Product Net Weight: 0.266 kg
  • Product Net Depth / Length: 74 mm
  • Product Net Height: 135 mm
  • Product Net Width: 82 mm
  • Gross Weight: 0.305 kg
  • Package Level 1 Depth / Length: 100 mm
  • Package Level 1 Height: 95 mm
  • Package Level 1 Width: 175 mm
  • Package Level 1 Units: 1 carton

Technical:

  • Function: Memory 2MB. 12 DI 24 VDC. 6 DO-Relay. 2 DC 24VDC. Ethernet interface. 2 option slots
  • Memory Size: 5032 kB
  • Memory Type User Data: RAM
  • Controller Processing Time: 0.00002 ms
  • Number of Digital Inputs: 12
  • Number of Digital Outputs: 6
  • Number of Digital Configurable I/Os: 2
  • Input Voltage Type: DC
  • Rated Voltage (Ur): 24 V DC
  • Supply Voltage: 20.4 … 28.8 V DC

(Replaces 1SAP123500R0072 - old firmware version)

See full data sheet from ABB here

Low stock: 4 left
