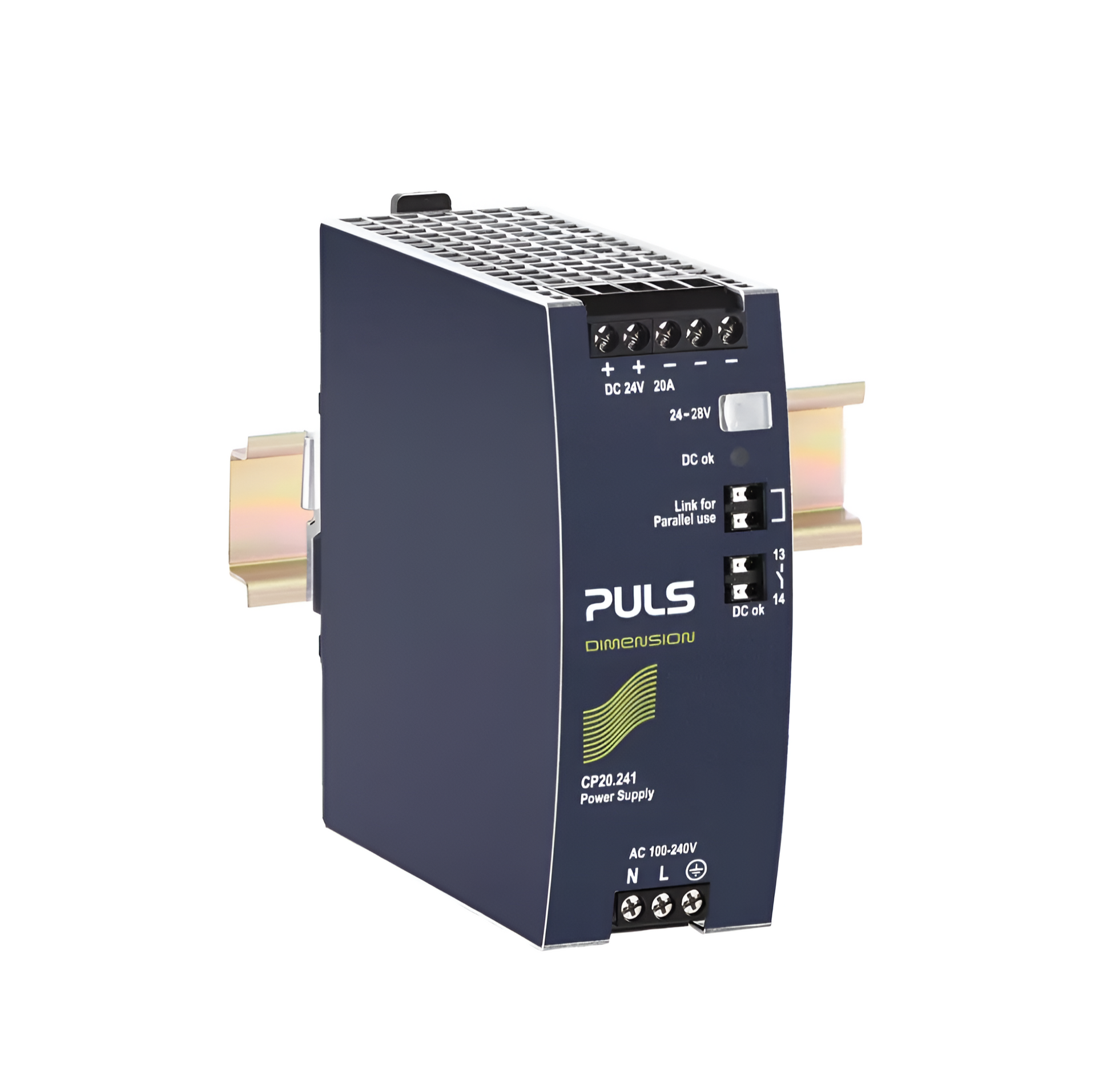

PULS - DIN rail power supplies for 1-phase system 24 V, 20 A (CP20.241 )

The PULS Dimensions CP-series single output DIN-rail switch mode power supply (CP20.241) has an output current rating of 20A at 24VDC. It has a single-phase input voltage ranging between 100VAC and 240VAC/ 110VDC and 150VDC with active power factor correction(PFC). These are cost optimised power supplies specifically designed with uncompromised quality and reliability for high-performance.

The most outstanding features of these units are of small size and high-efficiency. The power supplies can deliver three times the nominal output current for 12ms that helps to trip fuses on faulty output branches. It has high immunity to power surges as well as low electromagnetic emission. High immunity makes it suitable for almost every situation.

• 20% output power reserves
• Current sharing feature for parallel use
• DC-OK relay contact
• Efficiency up to 95.6%
• Excellent partial load efficiency
• Minimal inrush current surge
• Operation temperature ranging between -25°C and 70°C
• Power rating is 480W
• Remote on/off function
• Ripple factor and noise is 50mV
• Safe HiccupPLUS overload mode

See full product data sheet here
