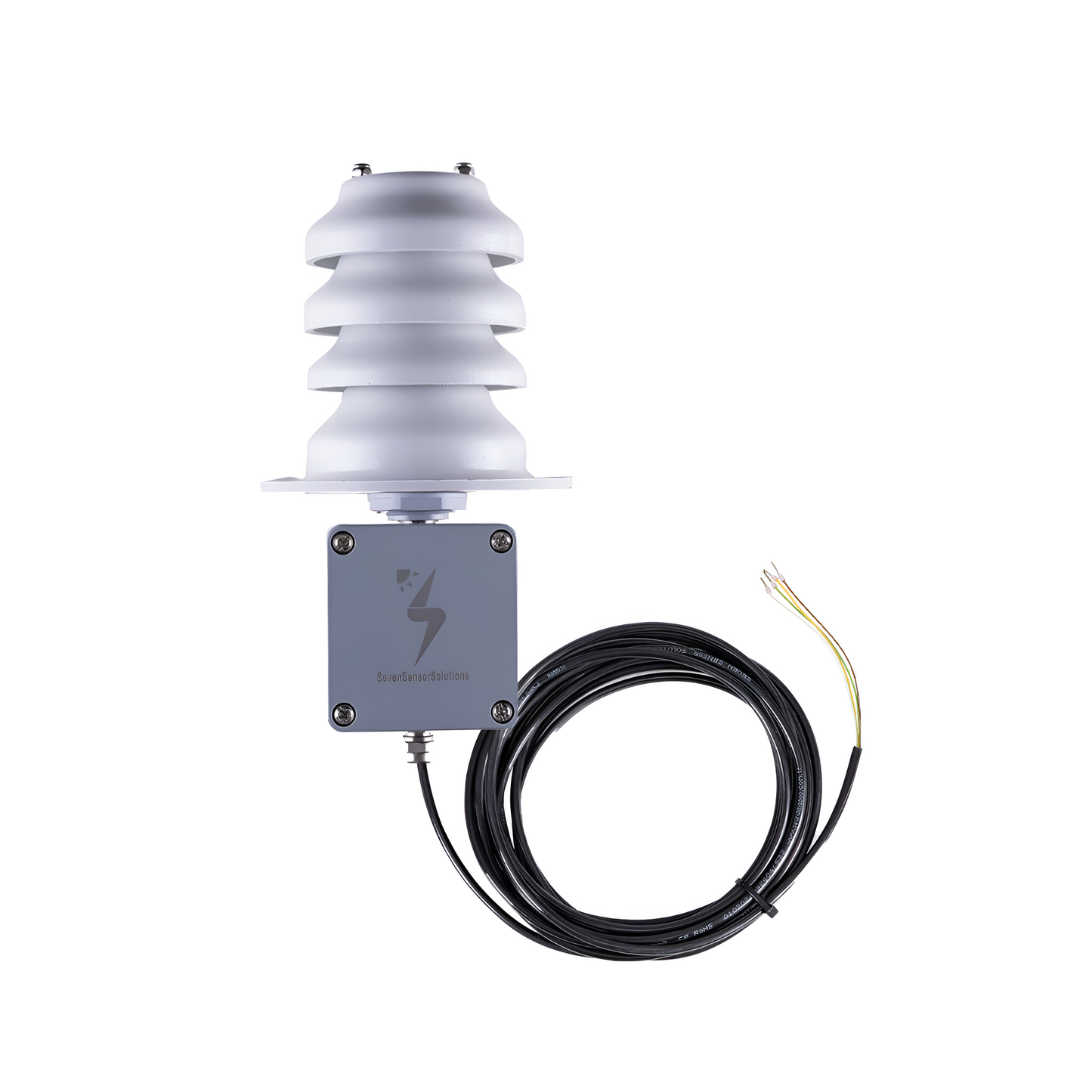

Relative Humidity Sensor with Analog Output

Product ID: 3S-RH-1

Seven Sensor relative humidity and ambient temperature sensor with Analog output.

Used to measure the humidity in percentage (%)

Can be used to estimate changes which may affect PV module power output or irradiance sensor readings.

Compatible with all Dataloggers, Gateways, and PLCs having Analog input port

Protected from direct sunlight & radiation by a plastic radiation shield.

Data Output: Analog 4-20 mA

Measuring Range: 0 to 100%

Accuracy: 0.1%

Operating Temperature: -40°C TO +85°C

Shield Dimensions: 105 x 100 mm

Box Dimensions: 64 x 68 x 35 mm

View full data sheet here
