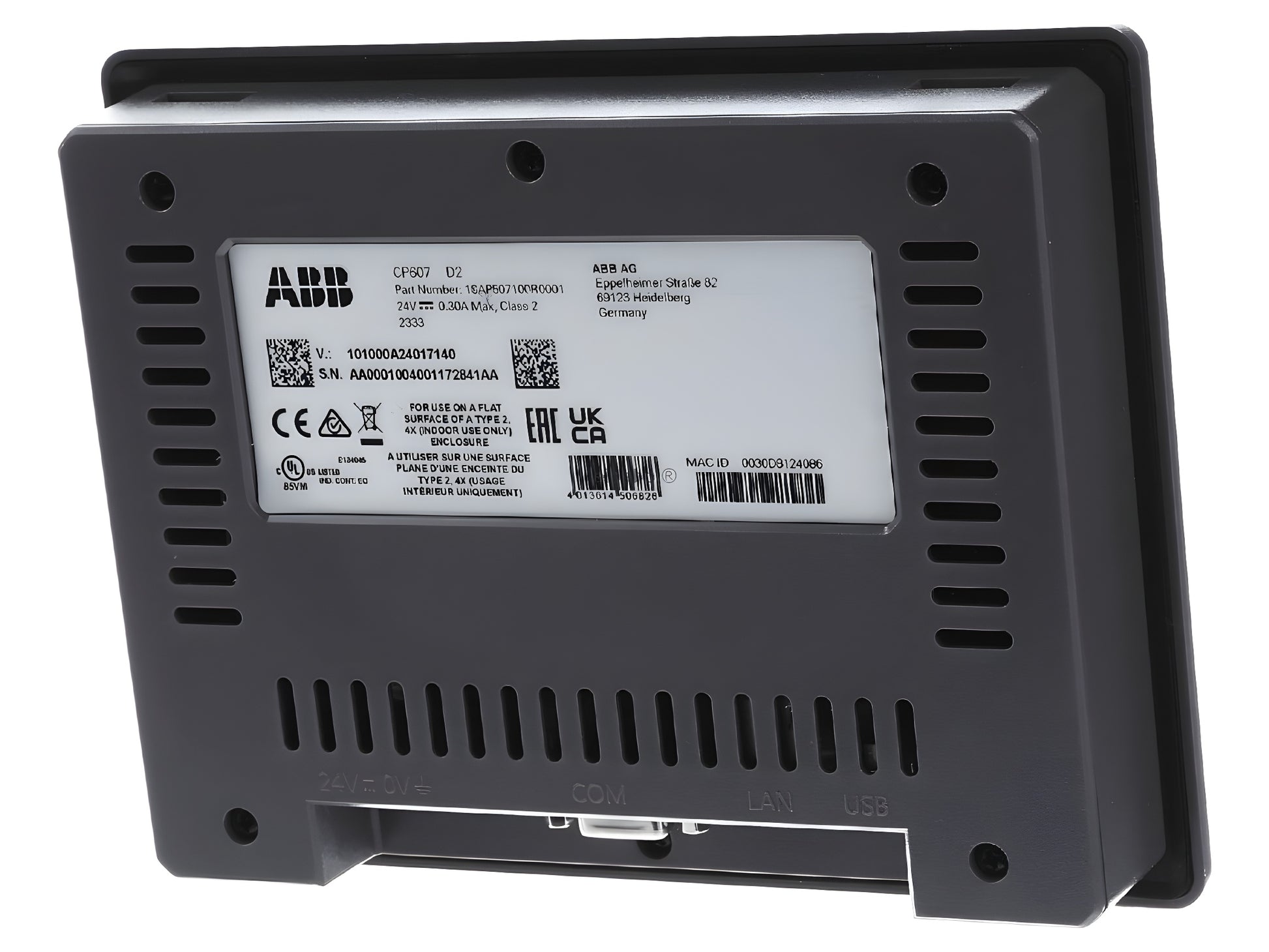

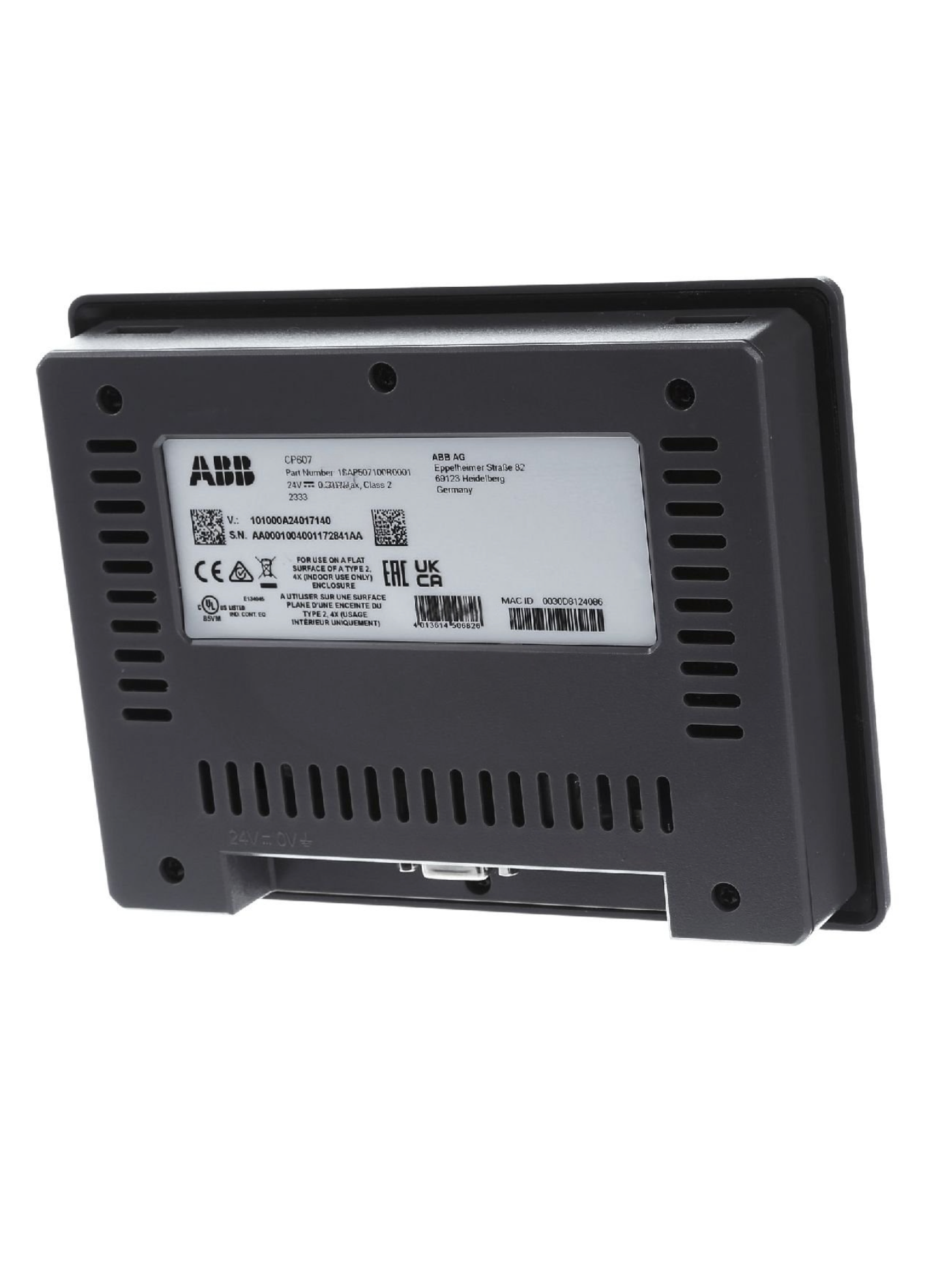

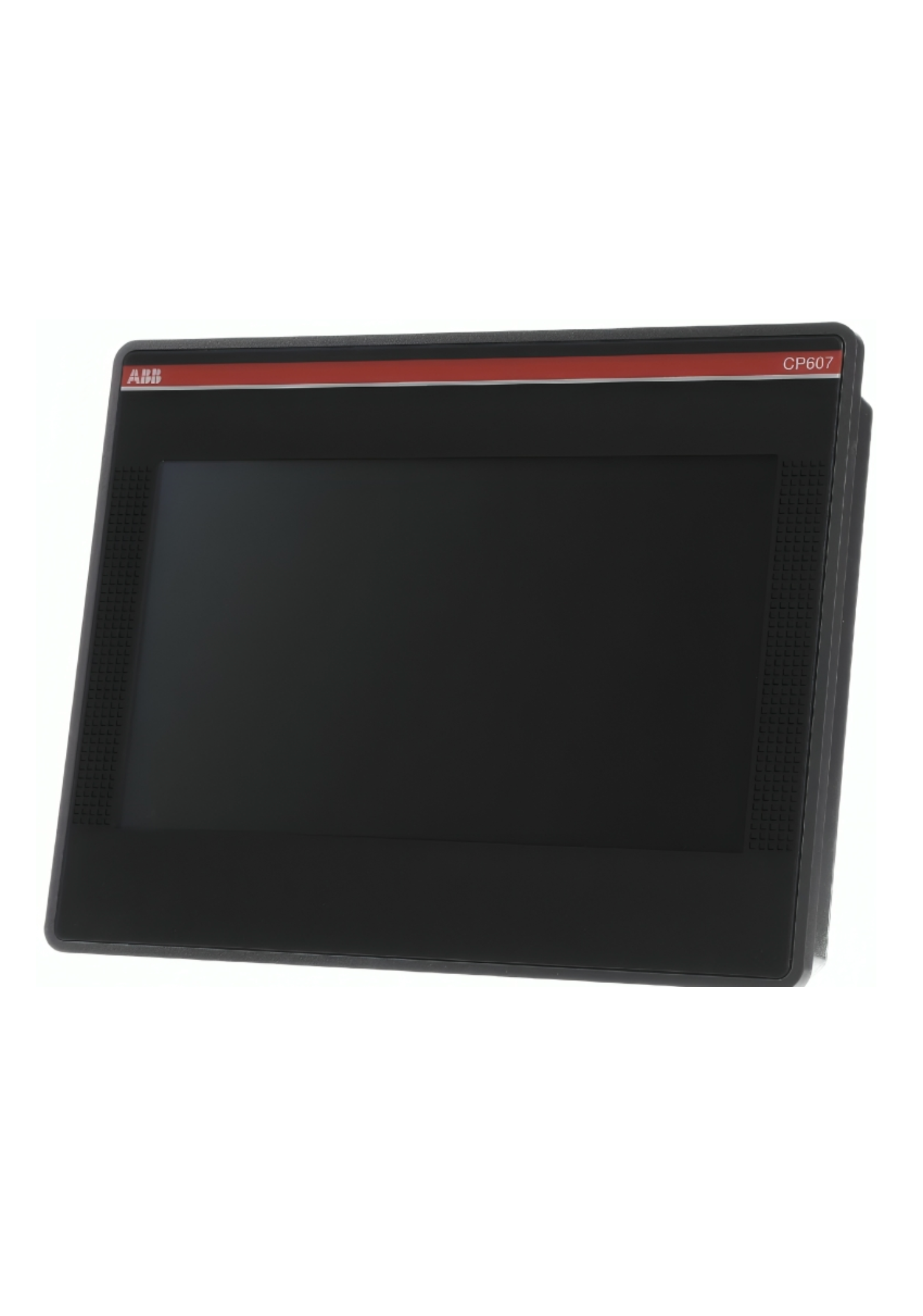

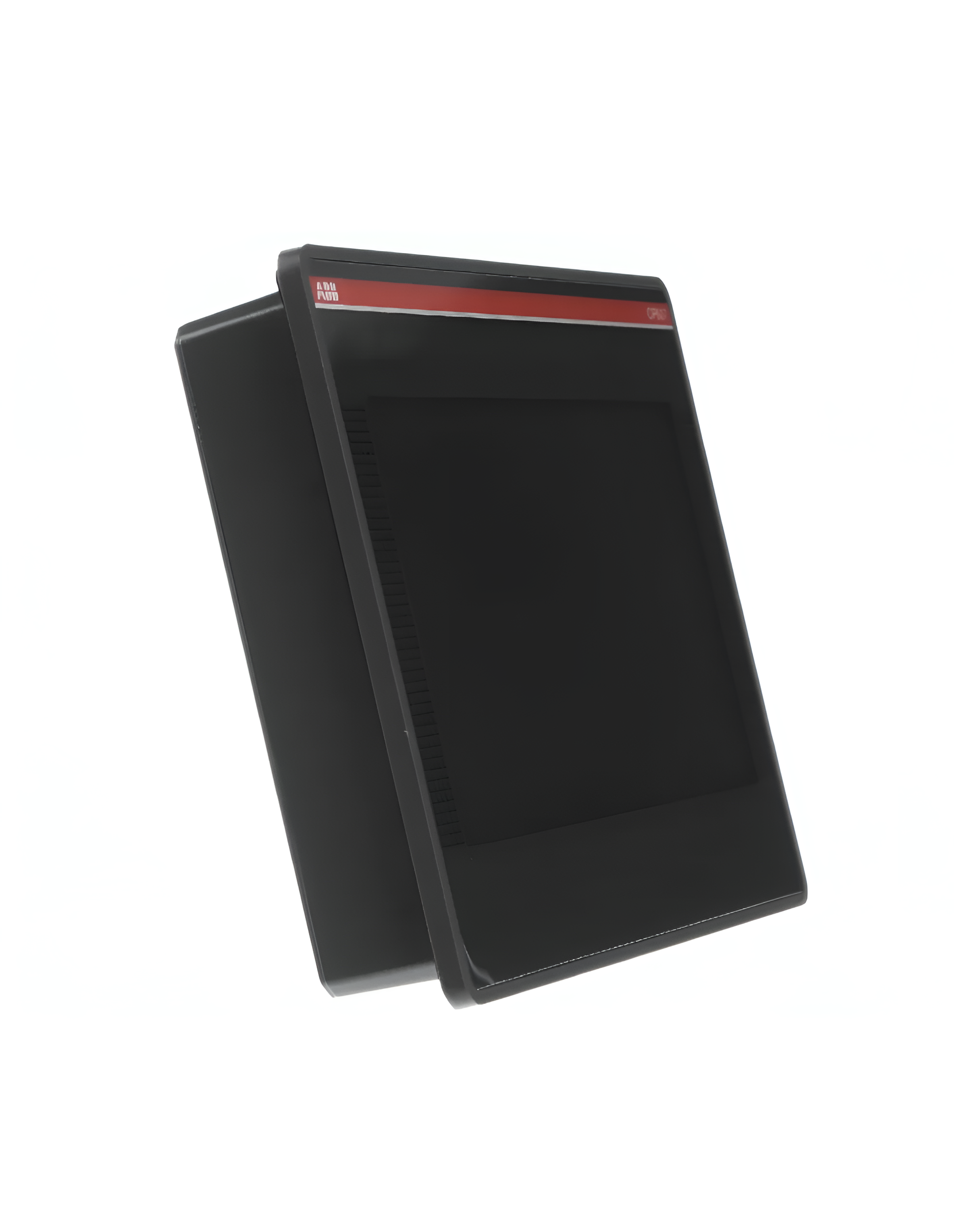

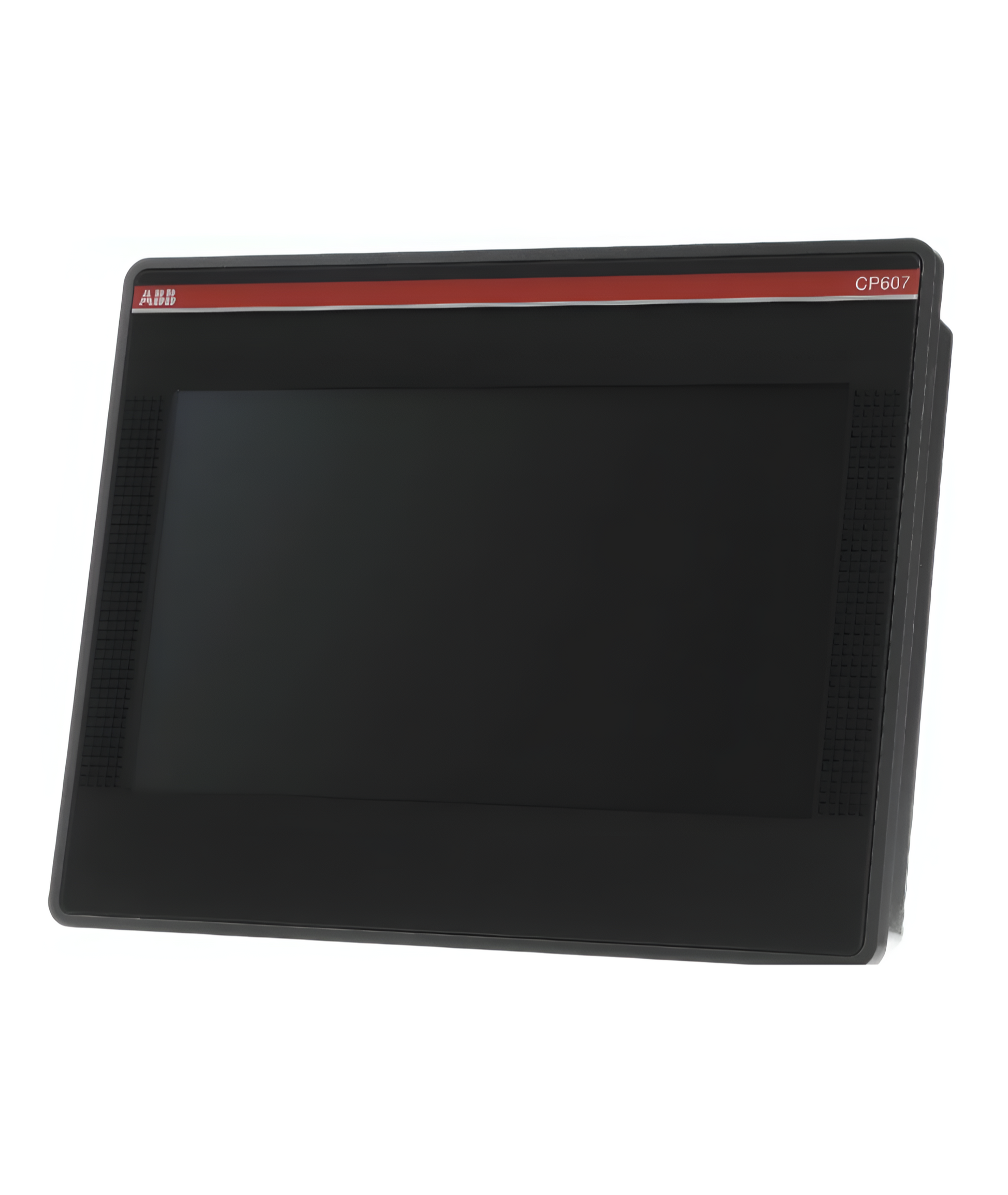

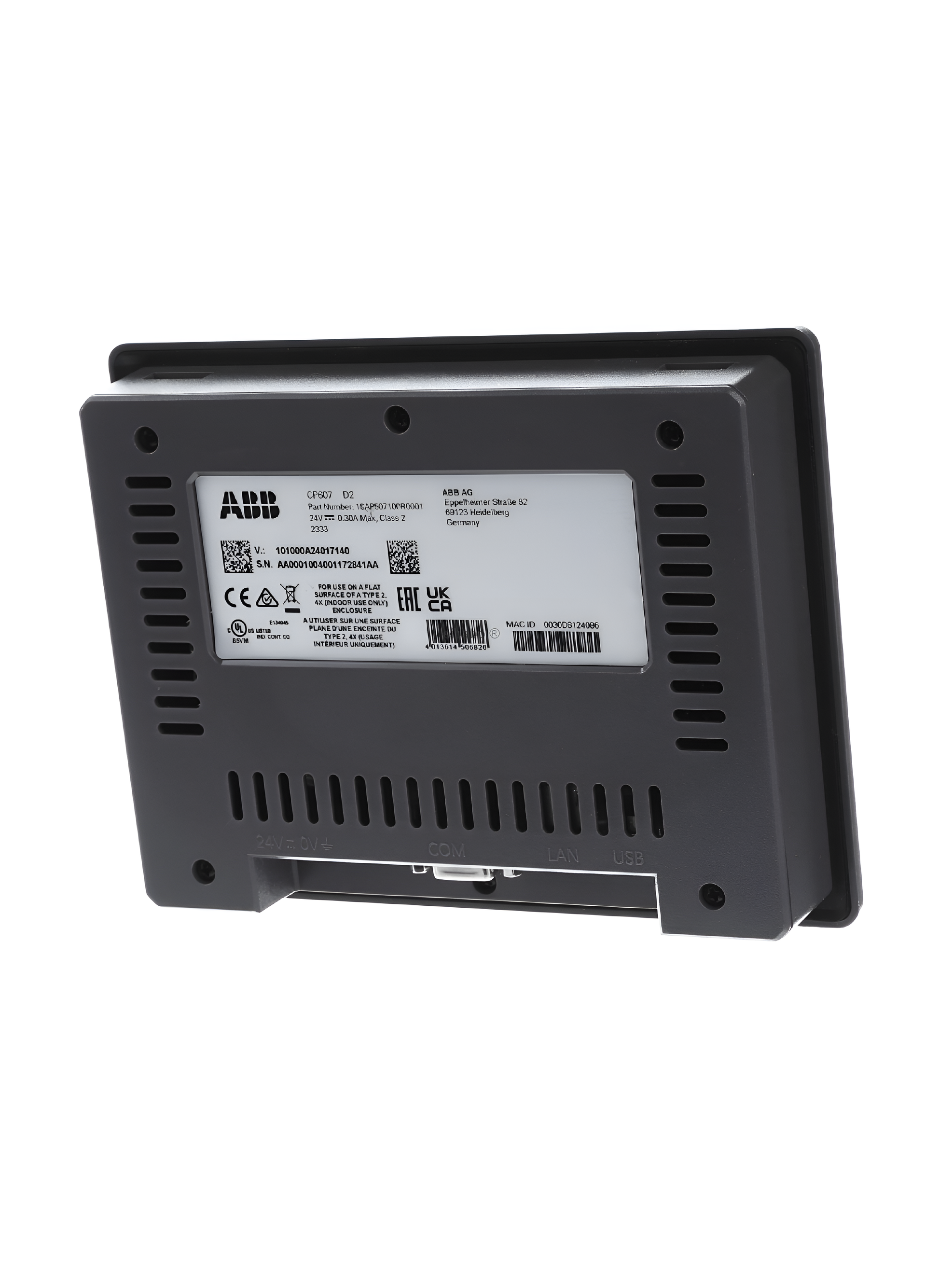

ABB colour touch screen 7 inches 800x480 - Recessed mounted monitor TFT (1SAP507100R0001)

Product ID: 1SAP507100R0001

CP607 D3, CP607, control panel, TFT graphical display, single-touch screen, 7”, 800 x 480 pixel, for PB610 applications and visualization of AC500 V3 web server, black

Model: TFT CP607
Manufacturer: ABB
Part Number: 1SAP507100R0001
EAN/UPC: 4013614506826

Display Specifications

• Type: TFT color display

• Screen Diagonal: 7 inches

• Resolution: 800 × 480 pixels

• Color Depth: 65,536 colors

• Touch Technology: Resistive touch

Electrical & Connectivity

• Supply Voltage: DC 18–32V

• Voltage Type: DC

• Industrial Ethernet: 1

• USB Interfaces: 1

• Other Interfaces: 1 (unspecified)

• PROFINET: 0

• RS-232/422/485: 0

• Serial TTY: 0

• Parallel: 0

• Wireless: 0

Memory & Software

• User Memory: 60,000 KB

• Password Levels: 50

• Online Languages: 24

Physical Dimensions

• Front Width: 187 mm

• Front Height: 147 mm

• Built-in Depth: 29 mm

Environmental & Protection

• Operating Temperature: 0°C to 50°C

• Front Protection: IP66

• NEMA Rating: Other
