• VPU AC I 2 300/12.5 - Surge voltage arrester, Single-phase, TN - (2591400000)
1 1

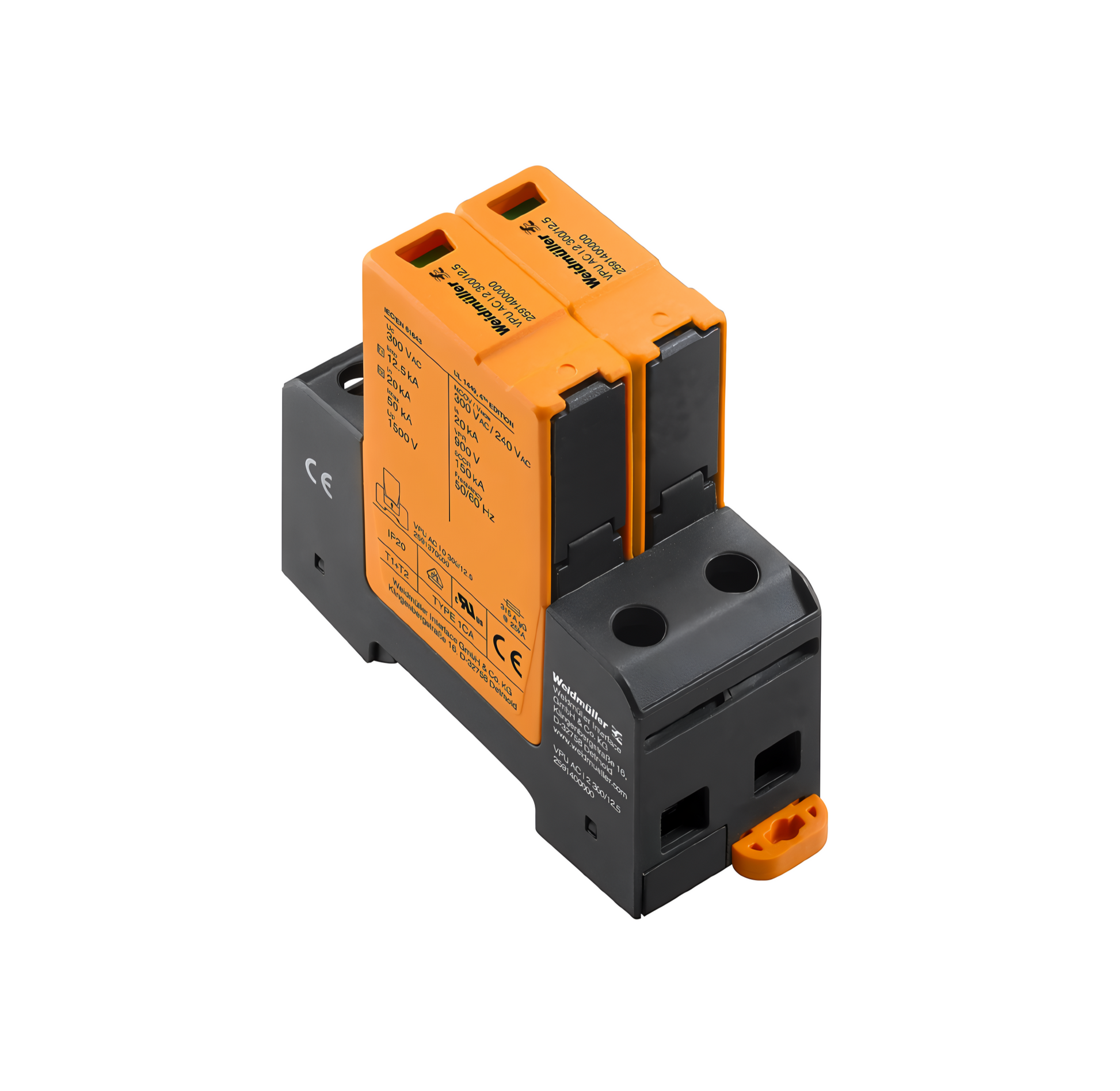

VPU AC I 2 300/12.5 - Surge voltage arrester, Single-phase, TN (2591400000)

VPU AC I 2 300/12.5 - Surge voltage arrester, Single-phase, TN (2591400000)

PAD Online

£191.00 GBP
£191.00 GBP
Sale Sold Out - Make an Enquiry
Shipping calculated at checkout.

Product Number - 2591400000

Surge voltage arrester, Low voltage, Surge protection, Single-phase, TN

Dimensions and weights

Depth - 91  mm
Height - 96.3  mm
Width - 36  mm
Net weight - 342  g


Temperatures

Storage temperature - -40 °C...85 °C
Operating temperature - -40 °C...85 °C
Humidity - 5 - 95% rel. humidity

Rated data UL

Ambient temperature (operational), max. - 85  °C

Ambient temperature (operational), min. - -40  °C

Voltage type - AC


General data

Design - Installation housing; 2TE, Insta IP 20
Mounting rail - TS 35
Operating altitude - ≤ 4000 m
Protection degree - IP20 in installed state
Segment - Power distribution
UL 94 flammability rating - V-0
Version - Surge protection

In stock
