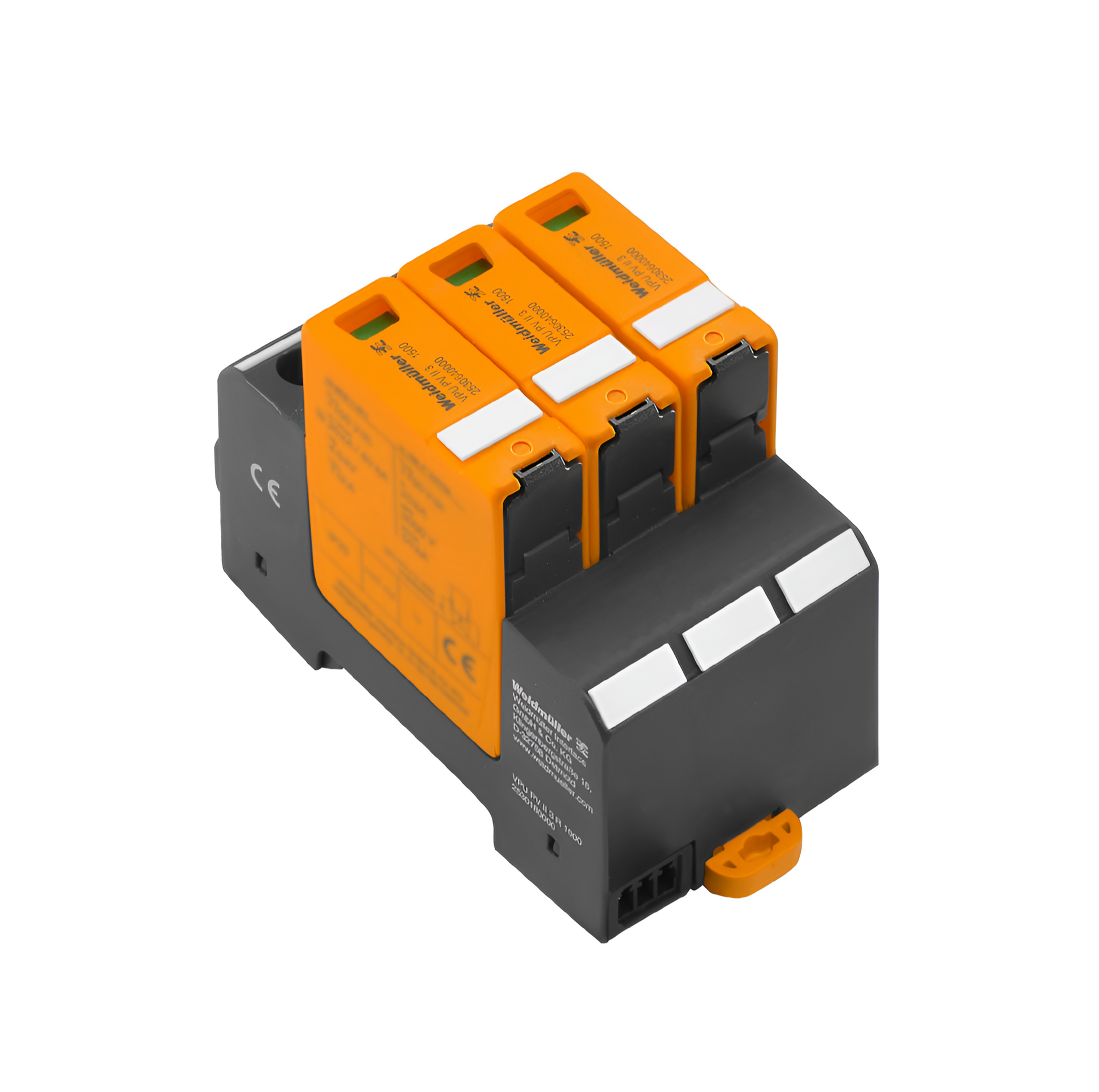

Weidmüller VPU PV I+II 3 1000 E - Surge voltage arrester, Low voltage, Surge protection I / II (2530520000)

Weidmüller VPU PV I+II 3 1000 E - Surge voltage arrester, Low voltage, Surge protection I / II (2530520000)

PAD Online

£100.00 GBP
£100.00 GBP
Sale Sold Out - Make an Enquiry
Shipping calculated at checkout.
Version - Surge voltage arrester, Low voltage, Surge protection I / II
Order No -  2530520000
Type - VPU PV I+II 3 1000 E


Dimensions and weights

Depth - 70  mm
Height - 96  mm
Width - 54  mm
Mounting dimension - height - 75  mm
Net weight - 440  g


Temperatures

Storage temperature - 85 °C
Operating temperature-  -40 °C...85 °C
Humidity - 5 - 95% rel. humidity


Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%


General data

Design - Installation housing; 3TE,  Insta IP 20
Mounting rail- TS 35
Operating altitude - ≤ 4000 m
Optical function display - green = OK; red = arrester is defective - replace
Protection degree - IP20
UL 94 flammability rating - V-0
Version - Surge protection I / II

See full product data here

17 in stock
