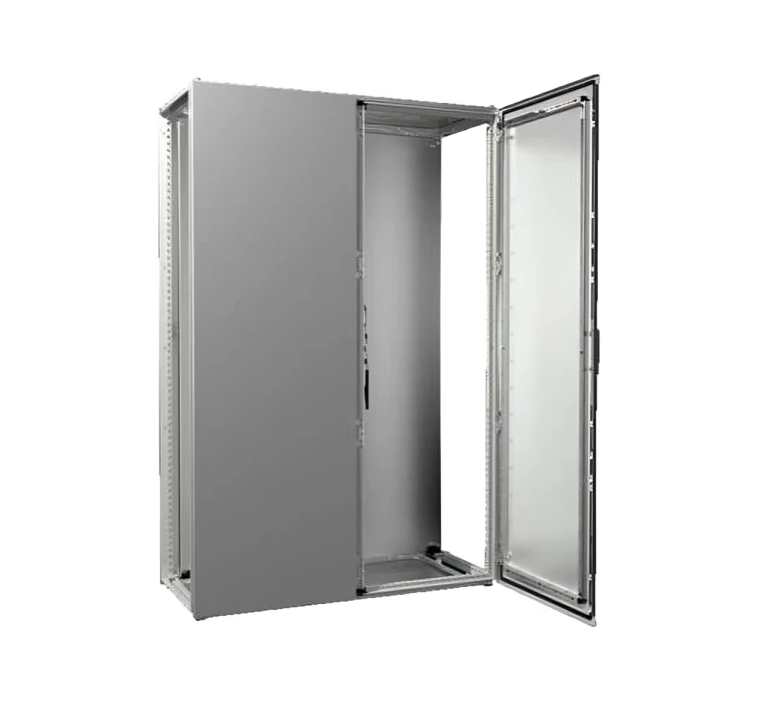

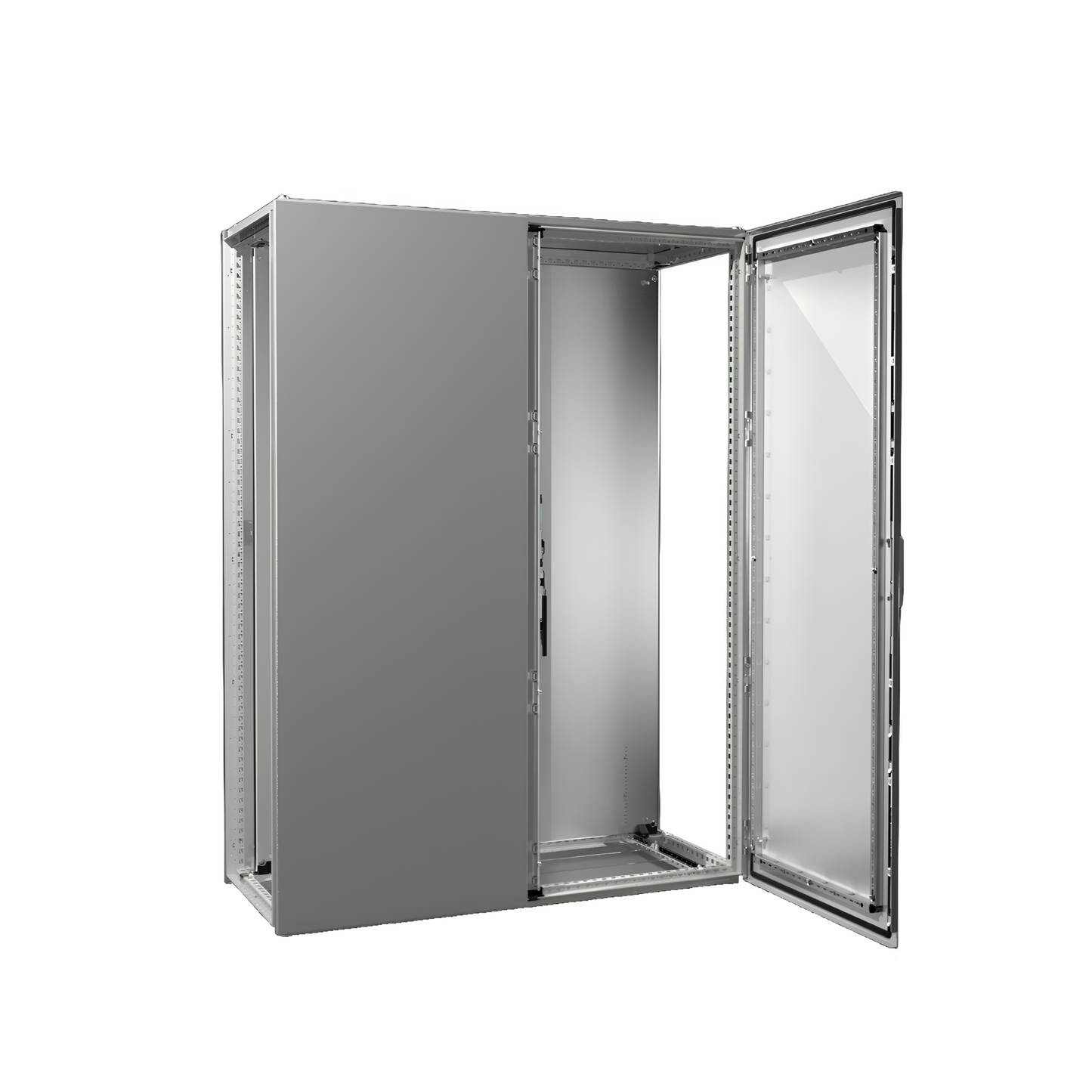

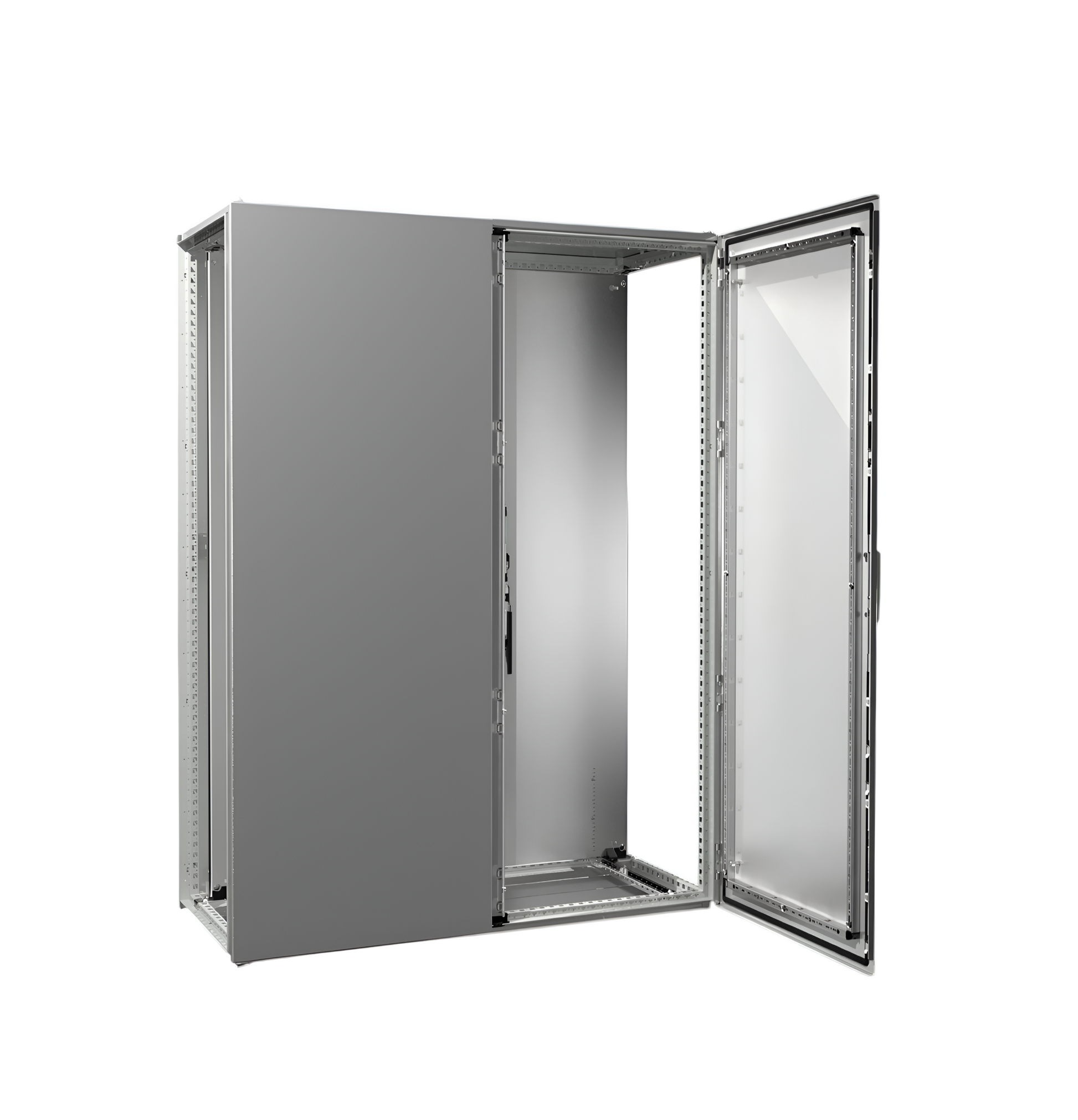

VX25 Bayed Enclosure System (8265.000)

Product ID: VX 8265.000

Bayed enclosure system VX25 Basic enclosure - The standard in enclosure manufacturing: Enclosure frame with two front doors, rear panel, mounting plate, roof plate, divided gland plates. Perfectly suited to efficient enclosure interior installation.

Supply includes:                                                                                                      Enclosure frame
Door(s)
Door hinged on the right, may be swapped to the left
Roof plate
Rear panel
Gland plates
Mounting plate
2 punched rails 18 x 39 mm
Lock: 3 mm double-bit

Material:                                                                                                                      Enclosure frame: Sheet steel, 1.5 mm
Roof: Sheet steel, 1.5 mm
Door: Sheet steel, 2.0 mm
Rear panel: Sheet steel, 1.5 mm
Gland plates: Sheet steel, 1.5 mm
Mounting plate: Sheet steel, 3.0 mm

Dimensions:                                                                                                              Width: 1,200 mm
Height: 1,600 mm
Depth: 500 mm

See full data sheet here
