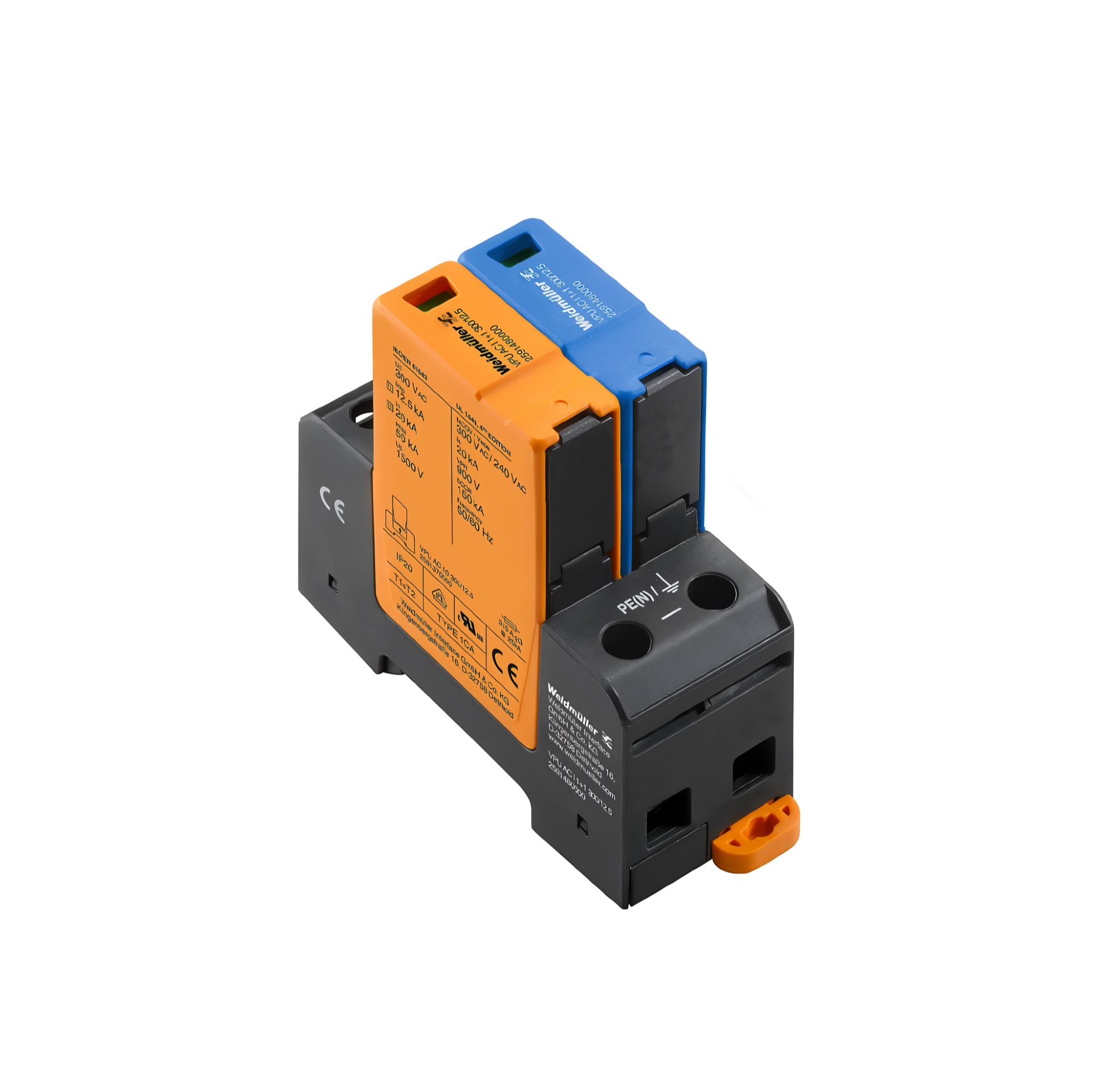

Weidmüller - VPU AC I 1+1 300/12.5 - Surge voltage arrester, Single-phase, TN, IT with N, IT without N, TT (2591480000)
Weidmüller - VPU AC I 1+1 300/12.5 - Surge voltage arrester, Single-phase, TN, IT with N, IT without N, TT (2591480000)
PAD Online
Regular price
£186.30 GBP
Regular price
Sale price
£186.30 GBP
Unit price
/
per
Shipping calculated at checkout.
Product Number - 2591480000
Surge voltage arrester, Low voltage, Surge protection, Single-phase, TN, IT with N, IT without N, TT
Dimensions and weights
Depth - 91 mm
Height - 96.3 mm
Width - 36 mm
Net weight - 298 g
Temperatures
Storage temperature - -40 °C...85 °C
Operating temperature - -40 °C...85 °C
Humidity - 5 - 95% rel. humidity
Rated data UL
Ambient temperature (operational), max. - 85 °C
Rated Voltage UN
Category - SPD TYPE 1CA
Ambient temperature (operational), min. - -40 °C
Voltage type - AC
General data
Design - Installation housing; 2TE, Insta IP 20
Mounting rail - TS 35
Operating altitude - ≤ 4000 m
Protection degree - IP20 in installed state
Segment - Power distribution
UL 94 flammability rating - V-0
Version - Surge protection
In stock
