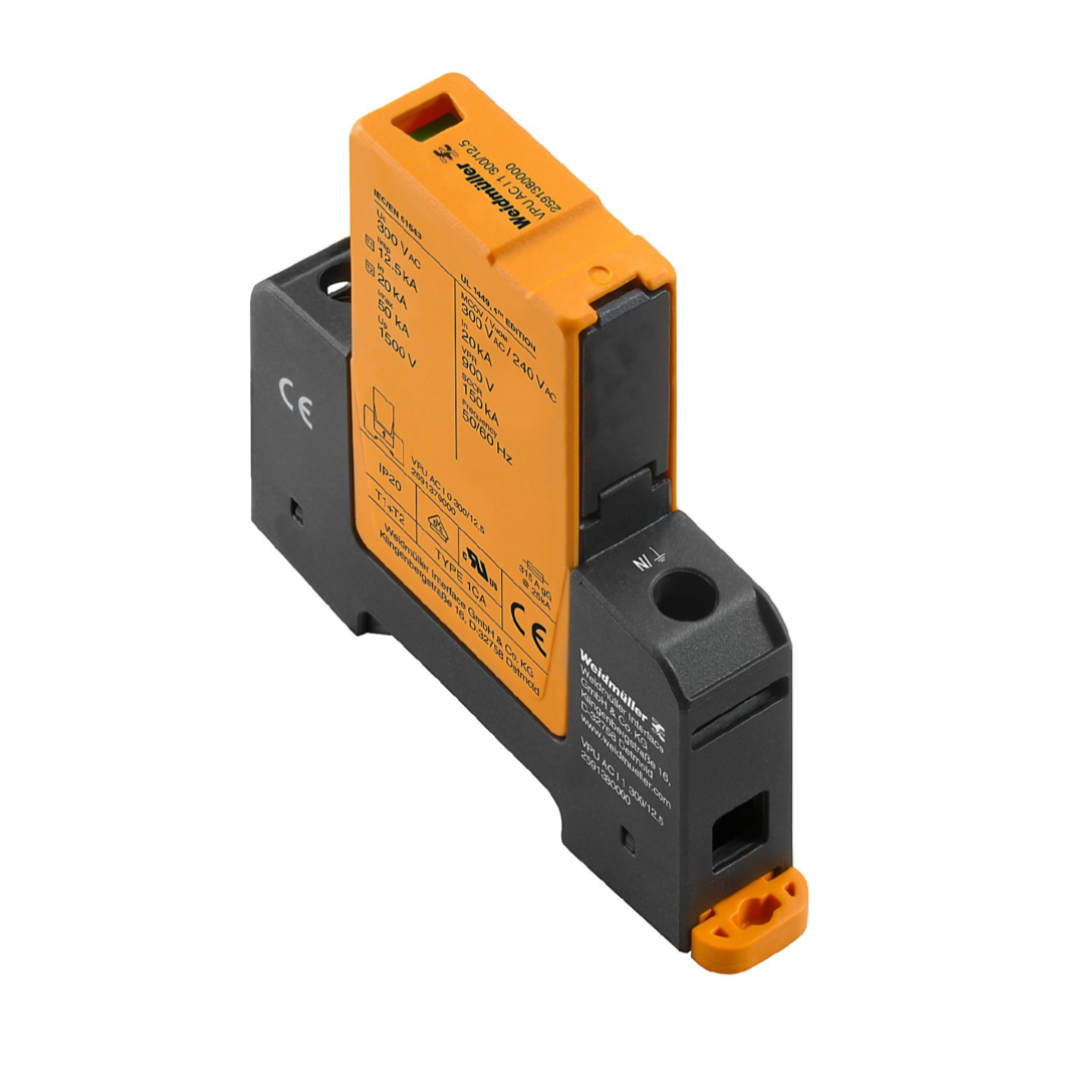

• Weidmüller - VPU AC I 1 300/12.5 - Surge voltage arrester,Single-phase (2591380000)
1 1

Weidmüller - VPU AC I 1 300/12.5 - Surge voltage arrester,Single-phase (2591380000)

Weidmüller - VPU AC I 1 300/12.5 - Surge voltage arrester,Single-phase (2591380000)

PAD Online

£98.00 GBP
£98.00 GBP
Sale Sold Out - Make an Enquiry
Shipping calculated at checkout.

Product Number - 2591380000

Surge voltage arrester, Low voltage, Surge protection, Single-phase

Dimensions and weights

Depth - 91  mm
Height - 96.3  mm
Width - 18  mm
Net weight - 174  g


Temperatures

Storage temperature - -40 °C...85 °C
Operating temperature - -40 °C...85 °C


General data


Installation housing; 1TE - Insta IP 20
Mounting rail - TS 35
Protection degree - IP20 in installed state
UL 94 flammability rating - V-0
Version - Surge protection
Voltage type - AC


Connection data

Stripping length - 18  mm
Wire connection method - Screw connection
Type of connection - Screw connection
Stripping length, rated connection - 15  mm

See full product data sheet here

In stock
