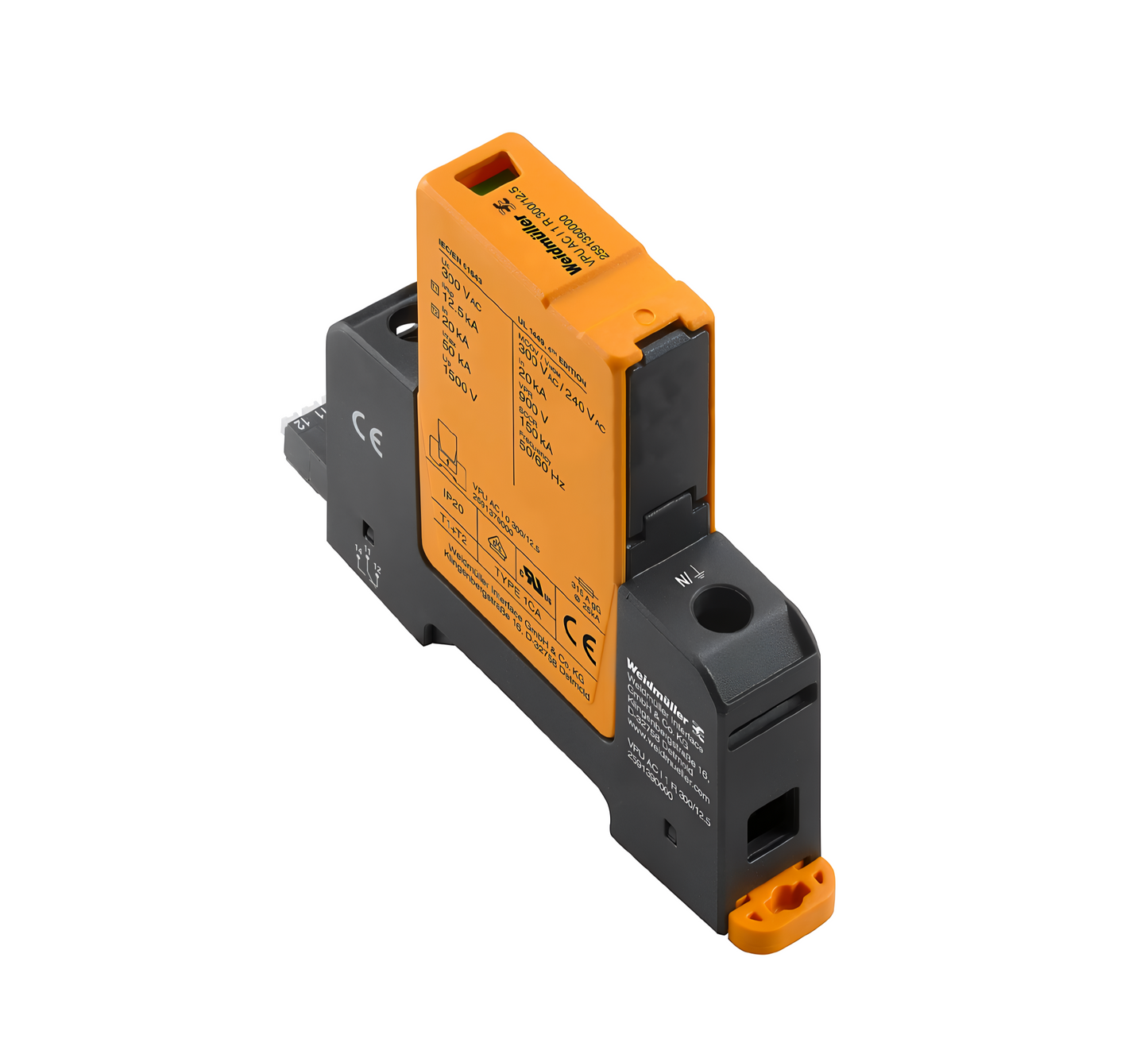

Weidmüller - VPU AC I 1 R 300/12.5 - Surge voltage arrester, Single-phase (2591390000)
Weidmüller - VPU AC I 1 R 300/12.5 - Surge voltage arrester, Single-phase (2591390000)
PAD Online
Regular price
£111.70 GBP
Regular price
Sale price
£111.70 GBP
Unit price
/
per
Shipping calculated at checkout.
Product Number - 2591390000
Surge voltage arrester, Low voltage, Surge protection, with remote contact, Single-phase
Dimensions and weights
Depth - 91 mm
Height - 111 mm
Width - 18 mm
Net weight - 178 g
Temperatures
Storage temperature - -40 °C...85 °C
Operating temperature - -40 °C...85 °C
Humidity - 5 - 95% rel. humidity
Rated data UL
Ambient temperature (operational), max. - 85 °C
Ambient temperature (operational), min. - -40 °C
Voltage type - AC
General data
Design - Installation housing; 1TE, Insta IP 20
Mounting rail - TS 35
Operating altitude - ≤ 4000 m
Protection degree - IP20 in installed state
Segment - Power distribution
UL 94 flammability rating - V-0
Version - Surge protection with remote contact
