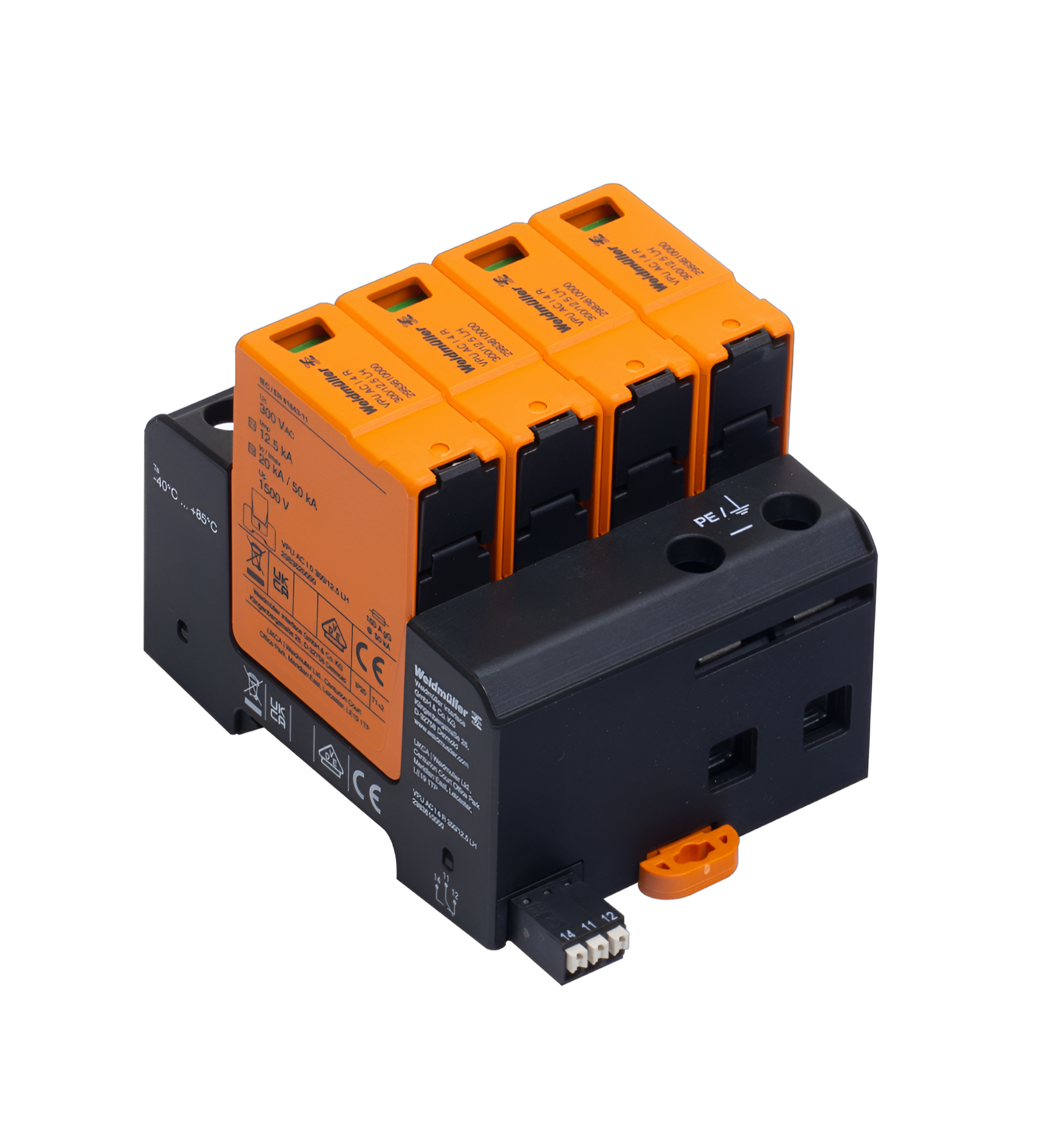

Weidmüller VPU AC I 4 R 300/12.5 LH SPD T1 + 2 (2983610000)

Weidmüller VPU AC I 4 R 300/12.5 LH SPD T1 + 2 (2983610000)

PAD Online

£436.28 GBP
£436.28 GBP
Sale Sold Out - Make an Enquiry
Shipping calculated at checkout.

VPU AC I 4 R 300/12.5 LH - Surge voltage arrester, Low voltage, Surge protection, with remote contact, TN-C-S, TN-S

Product Number - 2983610000

Dimensions and weights

Depth - 70  mm
Height - 105  mm
Width - 72  mm
Net weight - 715  g


Temperatures

Storage temperature - -40 °C...85 °C
Operating temperature - -40 °C...85 °C
Humidity at operating temperature - 5 - 95% rel. humidity
Humidity - 5 - 95% rel. humidity


Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%


Rated data UL

Ambient temperature (operational), max. 85  °C
Rated Voltage UN - 240  V
MCOV (L-PE) - 300  V
MCOV (N-PE) - 300  V
In - 20  kA
Category - SPD TYPE 4CA
Ambient temperature (operational), min. -40  °C
Certificate No. (cURus) - E3542610000
MODE - L-N
Measured. Limiting Voltage - 2,400  V
Voltage type - AC
UL Energy Networks - 3-phase WYE


Connection data, remote alert

Connection type - PUSH IN
Cross-section for connected wire, solid core, max 1.5  mm²
Cross-section for connected wire, solid core, min 0.14  mm²
Stripping length - 8  mm


General data

Design, Installation housing; 4TE - Insta IP 20
Mounting rail - TS 35
Operating altitude - ≤ 4000 m
Optical function display- green = OK; red = arrester is defective - replace
Protection degree - IP20 in installed state
UL 94 flammability rating -V-0

See full product data sheet here

11 in stock
