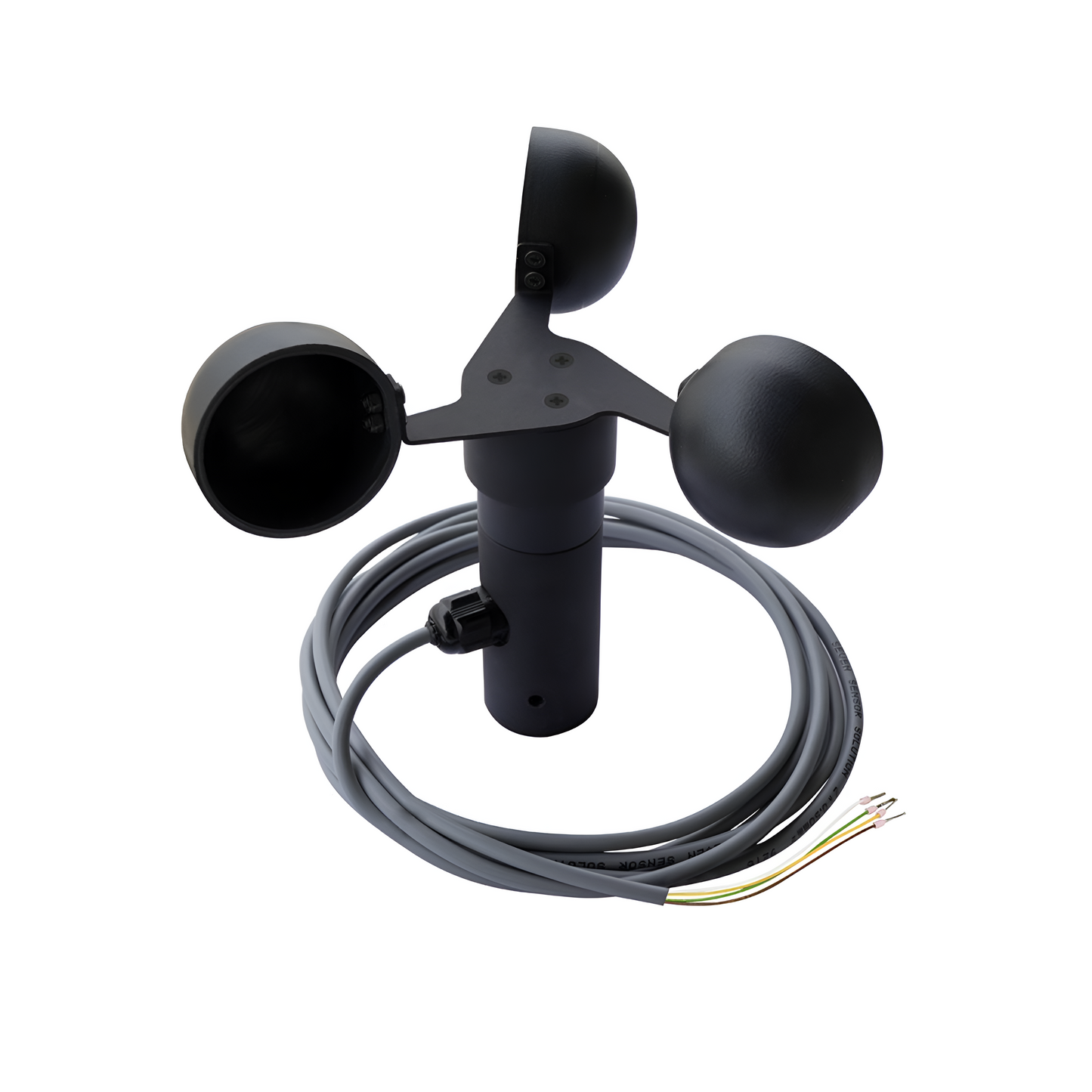

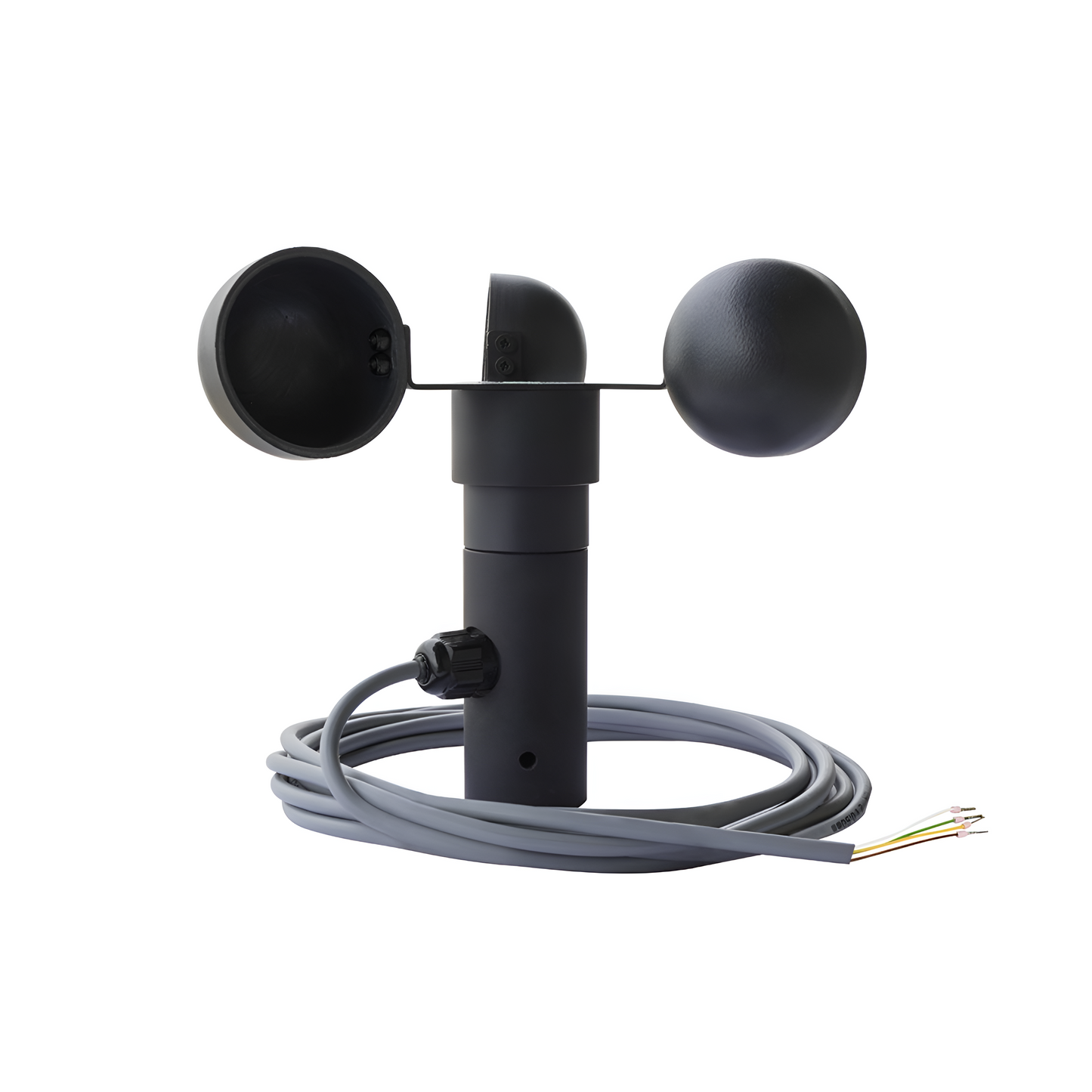

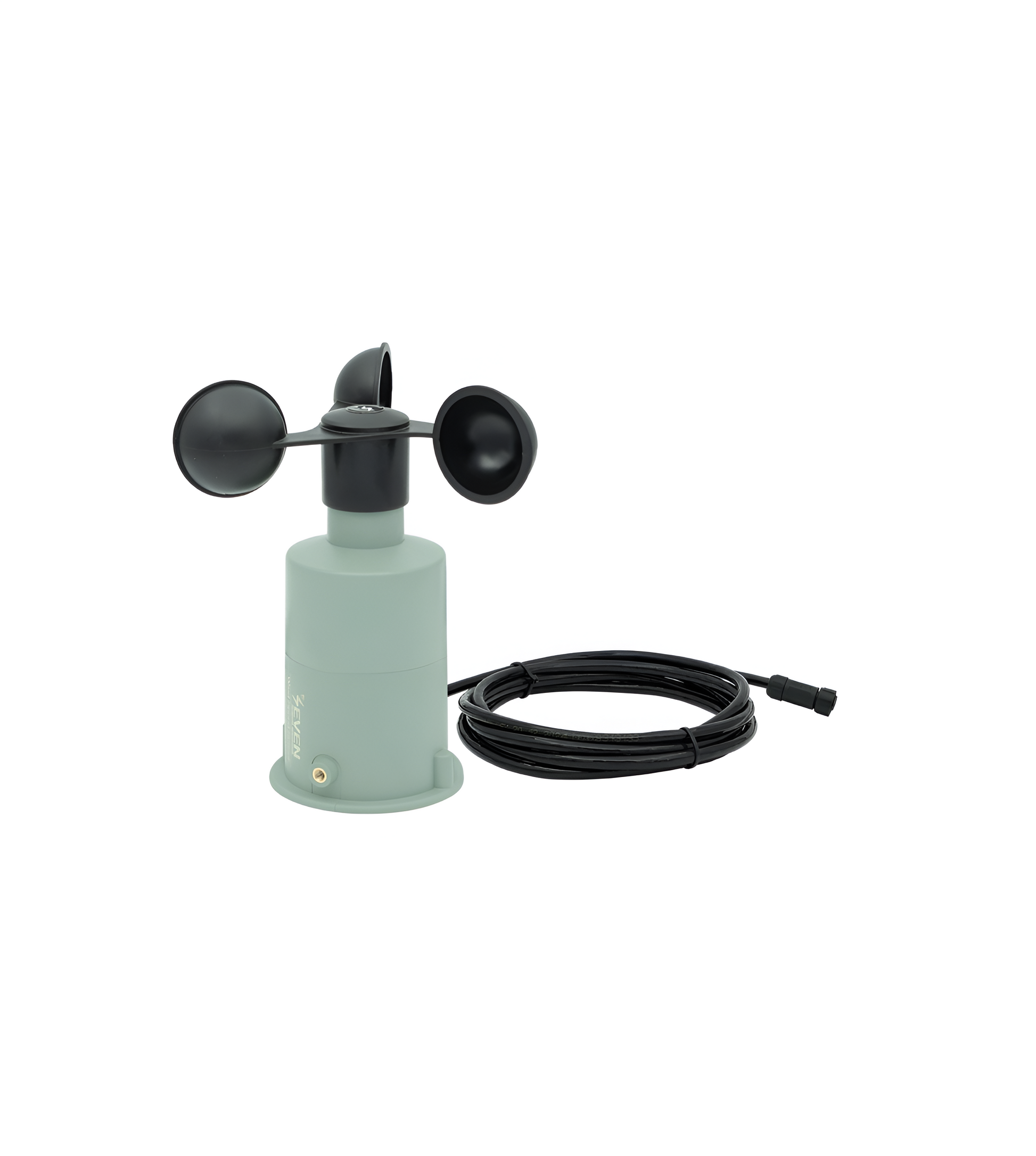

Seven Sensor - Plastic Wind Speed Sensor with Pulse Output (3S-WS-PLS-P)

Product ID: 3S-WS-PLS-P

The Plastic Wind Speed Sensor with Pulse Output is a robust device specifically engineered for accurately measuring horizontal wind speed in diverse environmental and industrial applications. Featuring pulse output, this sensor provides precise data transmission to controllers, making it a perfect fit for seamless integration.

Sensor Type - Cup Star Anemometer (Reed Switch) Measuring Range - 0,9 to 60 m/s
Accuracy - Below 5m/s 0,5 m/s and 10% of reading above 5m/s
Resolution - 0,1 m/s
Threshold - 0,9 m/s
Survival Speed - 60 m/s
Data Output - Reed Relay
Cable’s Length & Features - 1,5m LI2YC11Y-TP 1x2x0,22 mm² Cable, UV
Operating Temperature Range - -40°C to +85°C (Ice Free) Dimensions - Ø: 135 mm x 150 mm
Weight - 0,16 kg

View full data sheet here
