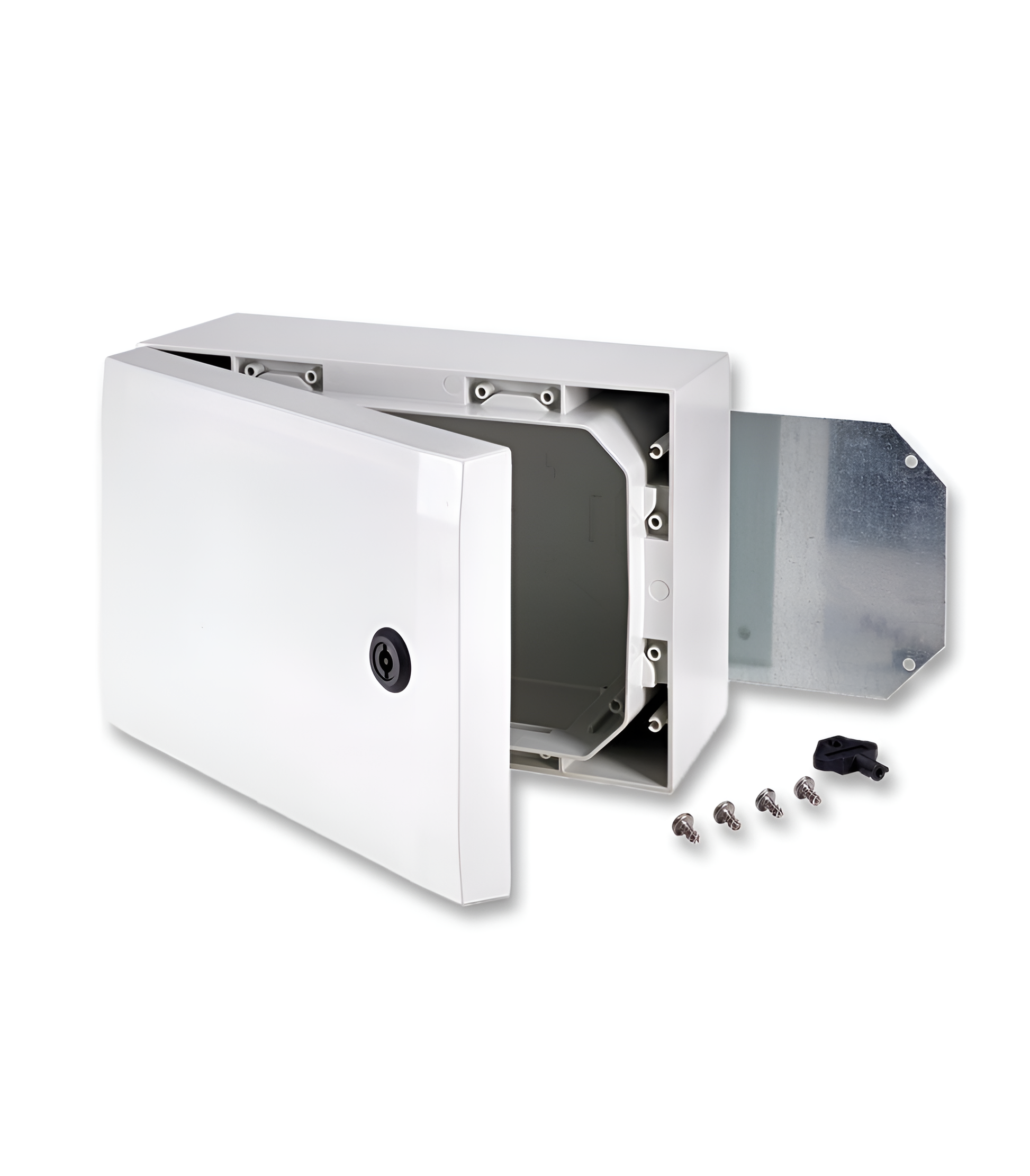

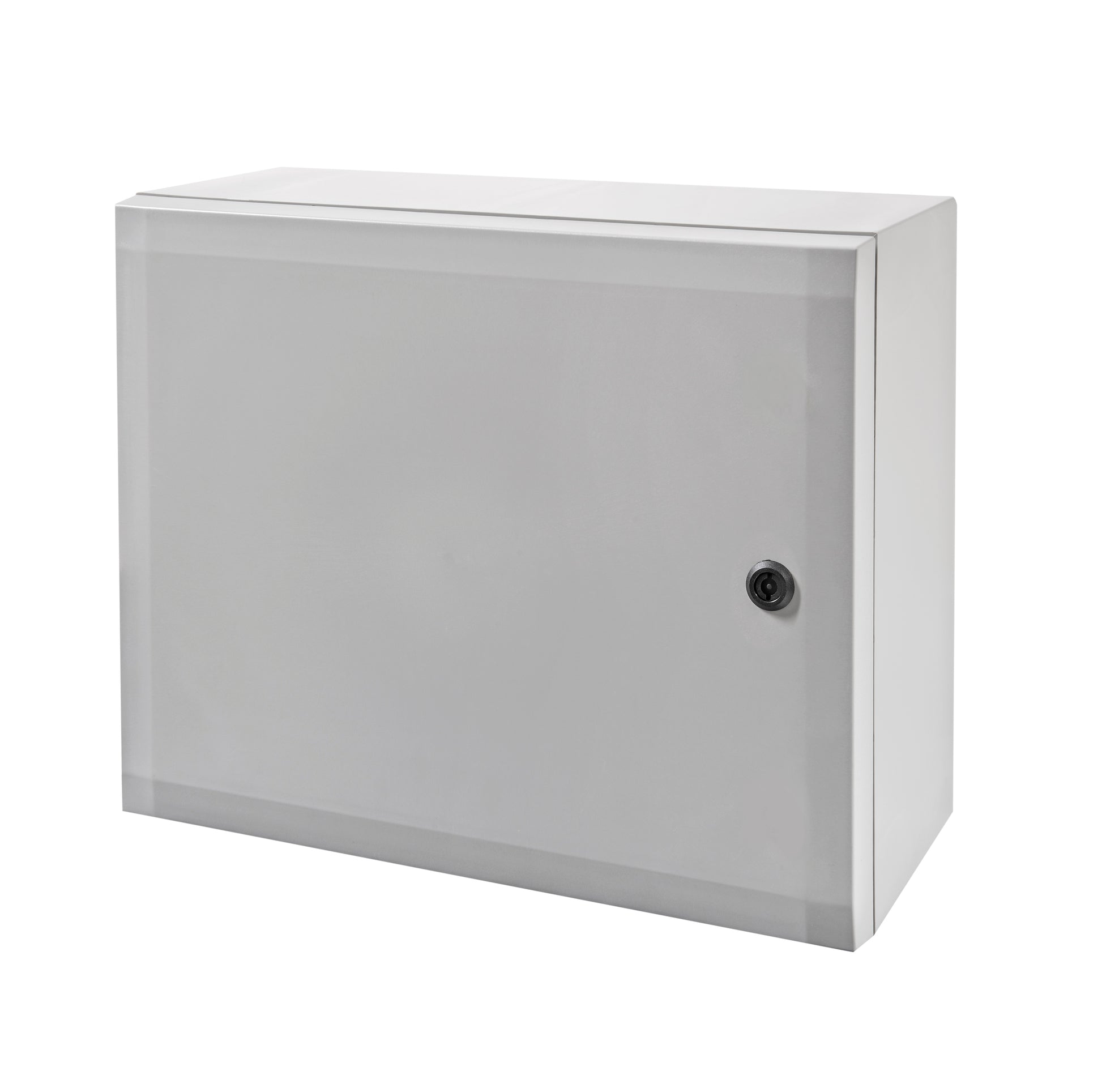

ARCA IEC Wall-Mounted Enclosure (203015)

Product Number: 203015

Part of the ARCA IEC (ARCN) series, the ARCA 203015 (8120002) is a high-performance wall-mounted cabinet designed for control and measurement applications in electrical installations. Constructed from UV-resistant, halogen-free polycarbonate, this enclosure ensures long-term durability and protection in demanding environments.

Key Features & Specifications:

• Material: High-strength polycarbonate
• Flame Resistance: UL 94 5VA certified
• UV Resistant: Yes (suitable for outdoor use)
• Protection Ratings: IP66 (dustproof & waterproof) & IK10 (impact-resistant)

Design & Security:

• 1-point locking system with hinges on the short side for easy access
• Grey PC cover for a professional appearance
• Vertical mounting supported

Dimensions & Weight:

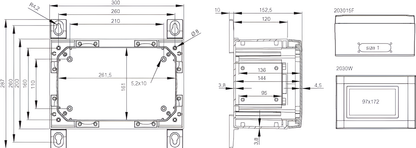

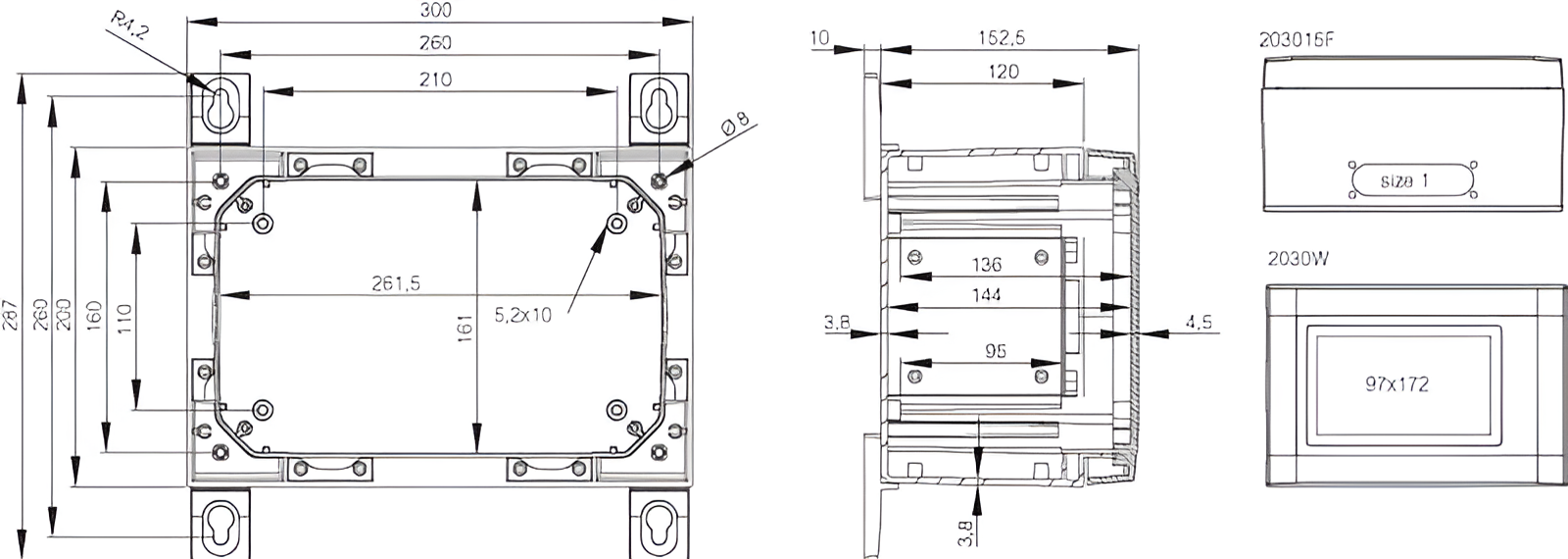

• 200mm (H) × 300mm (W) × 150mm (D)
• Weight: 2400g

Compliance & Certifications:

• UL508A listed
• ATEX: No (not rated for explosive atmospheres)

Applications:

• Ideal for electrical control and measurement systems
• Not suitable for terminal enclosures, power distribution boards, or electronic devices

Engineered for reliability, the ARCA 203015 (8120002) provides secure housing for electrical components while ensuring resistance to environmental factors, making it a dependable choice for industrial and commercial installations.

See full data sheet here
